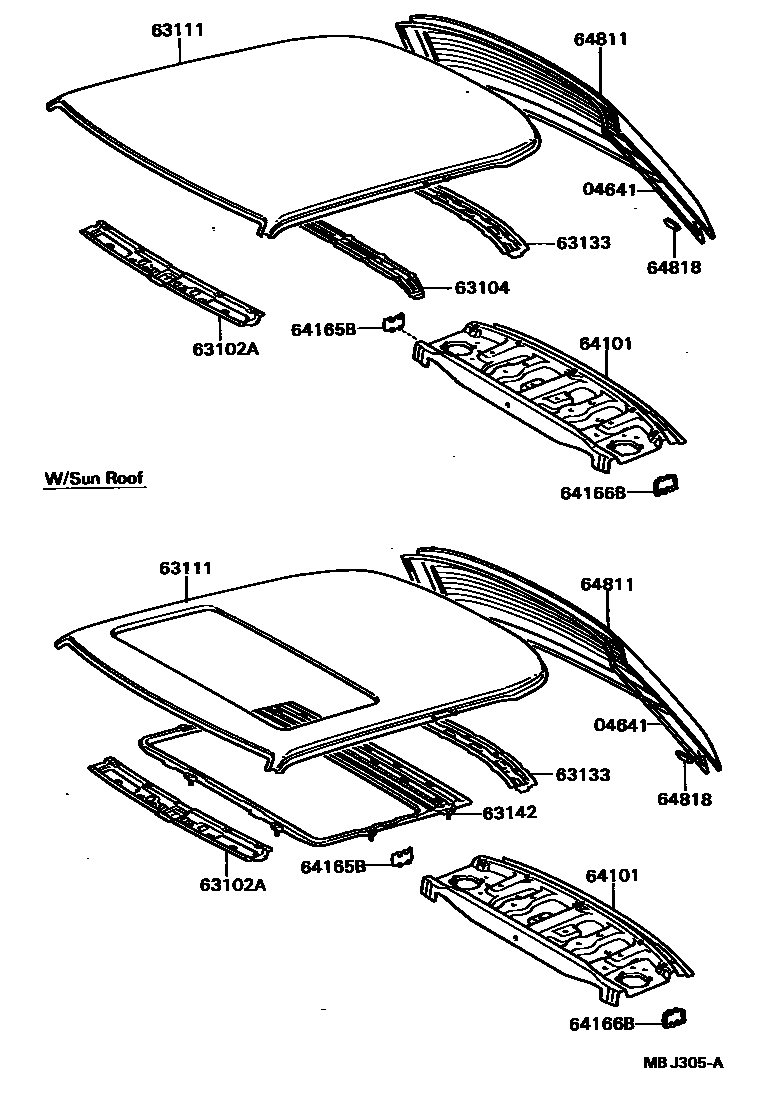

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1 0003 1

04641DAM KIT, BACK WINDOW GLASS

main04562-30040iAT160,ST162..CP198508-198708

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-20090iAT160,ST162,182198508-198708

63104REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER

main63141-20060iAT160,ST162,182198508-198708

63111PANEL, ROOF

main63111-20220iAT160,ST162..CP198508-198708

W/O SUN ROOF

main63111-20230iAT160,ST162..CP198508-198708

W/SUN ROOF

main63111-20240iAT160,ST162,182..LB198508-198708

W/O SUN ROOF

main63111-20250iAT160,ST162,182..LB198508-198708

W/SUN ROOF

63133FRAME, BACK WINDOW OPENING, UPPER

main63133-20120iAT160,ST162..CP198508-198708

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-20040iAT160,ST162,182198508-198708

W/SUN ROOF

64101PANEL SUB-ASSY, UPPER BACK

main64101-20220iAT160..CP..CBR198508-198708

main64101-20240iAT160,ST162..CP..GT198508-198708

main64101-20270iST162..CP..ARL198608-198708

64165BCOVER, UPPER BACK PANEL HOLE, NO.1

main64165-20030iAT160,ST162..CP198508-198708

64166BCOVER, UPPER BACK PANEL HOLE, NO.2

main64166-20020iAT160,ST162..CP198508-198708

64811GLASS, BACK WINDOW

main64801-20110iAT160,ST162..CP198508-198708

*EHTT,T=4.0,*EHTT,T=4.0

main64811-20640iAT160,ST162..CP..(GEN,ME)198508-198708

*TT,T=4.0,*TT,T=4.0

sub64801-20110

64818SPACER, BACK WINDOW GLASS

main64818-30030iAT160,ST162..CP198508-198708

11 parts on this diagram · 3 diagrams in section
