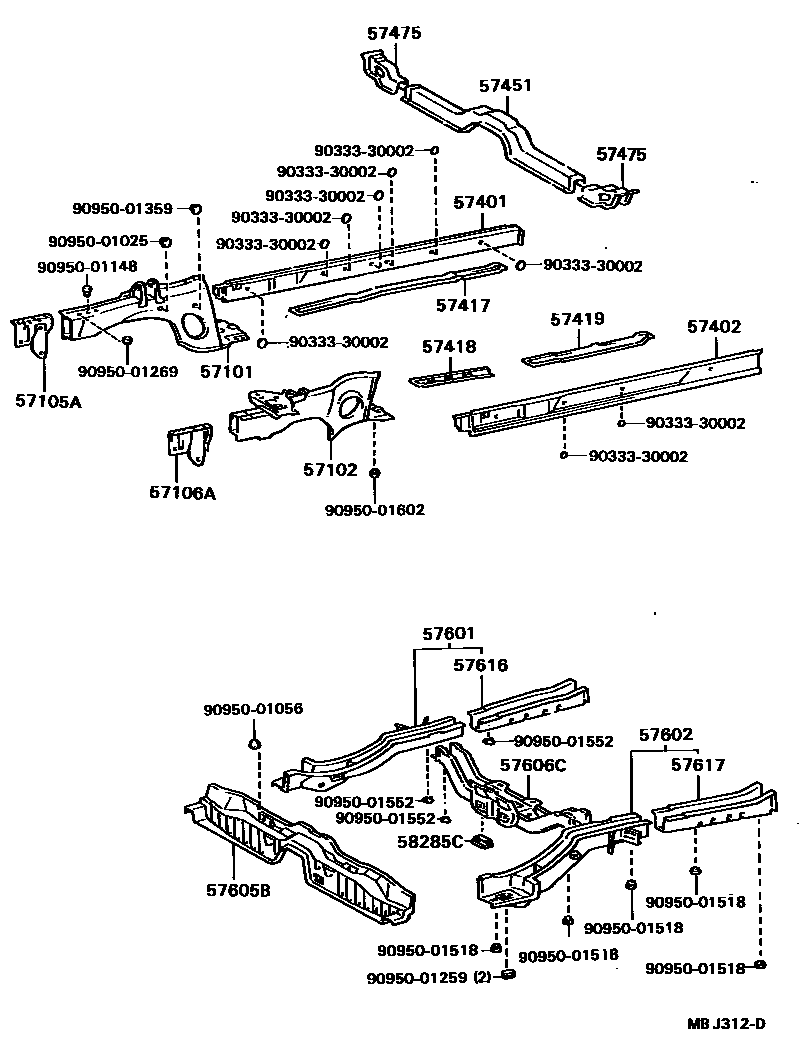

FLOOR SIDE MEMBER

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-20340iST162,182..ARL,GEN198508-198708

sub57101-20570

main57101-20420iST162..ME198508-198708

*ME

sub57101-20560

main57101-20440iAT160198508-198511

main57101-20450iAT160198511-198708

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-20400iST162,182..ARL,GEN198508-198708

sub57102-20610

main57102-20410iST162..ME198508-198708

*ME

sub57102-20640

main57102-20430iAT160198508-198511

main57102-20440iAT160198511-198708

57105APLATE SUB-ASSY, FRONT SIDE MEMBER, RH

main57105-20040iAT160,ST162,182198508-198708

57106APLATE SUB-ASSY, FRONT SIDE MEMBER, LH

main57106-20040iAT160,ST162,182198508-198708

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-20200iAT160,ST162..GEN,ME198508-198509

main57401-20210iST162,182..ARL198508-198708

main57401-20220iAT160,ST162..GEN,ME198509-198708

sub57401-20221

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-20200iAT160,ST162..GEN,ME198508-198509

main57402-20210iST162,182..ARL198508-198708

main57402-20220iAT160,ST162..GEN,ME198509-198708

sub57402-20221

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-20030iAT160,ST162,182198508-198708

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57418-20040iAT160,ST162,182198508-198708

57419REINFORCEMENT, FRONT FLOOR UNDER, LH NO.2

main57419-20020iAT160,ST162,182198508-198708

57451MEMBER, FRONT FLOOR CROSS

main57451-20070iAT160,ST162,182198508-198708

57475PLATE, FRONT FLOOR CROSSMEMBER

main57475-20020iAT160,ST162,182198508-198708

RH

main57476-20020iAT160,ST162,182198508-198708

LH

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-20160iAT160,ST162,182..ARL,GEN198508-198510

main57601-20170iST162..ME198508-198510

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-20160iAT160,ST162,182..ARL,GEN198508-198510

main57602-20170iST162..ME198508-198510

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-20040iAT160,ST162,182198508-198705

main57605-20060iAT160,ST162,182198705-198708

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-20070iAT160,ST162,182198508-198705

main57606-20080iAT160,ST162,182198705-198708

57616MEMBER, REAR FLOOR SIDE, REAR RH

main57615-20900iAT160,ST162,182..ARL,GEN198508-198509

main57615-20901iST162..ME198508-198509

sub57615-20904

57617MEMBER, REAR FLOOR SIDE, REAR LH

main57616-20900iAT160,ST162,182..ARL,GEN198508-198509

main57616-20901iST162..ME198508-198509

sub57616-20904

58285CCOVER, REAR FLOOR HOLE

main58285-20020×2iAT160,ST162,182198508-198708

9033330002

main90333-30002

9095001025

main90950-01025

9095001056

main90950-01056

9095001148

main90950-01148

9095001259

main90950-01259

9095001269

main90950-01269

9095001359

main90950-01359

9095001518

main90950-01518

9095001552

main90950-01552

9095001602

main90950-01602

28 parts on this diagram · 1 diagram in section
