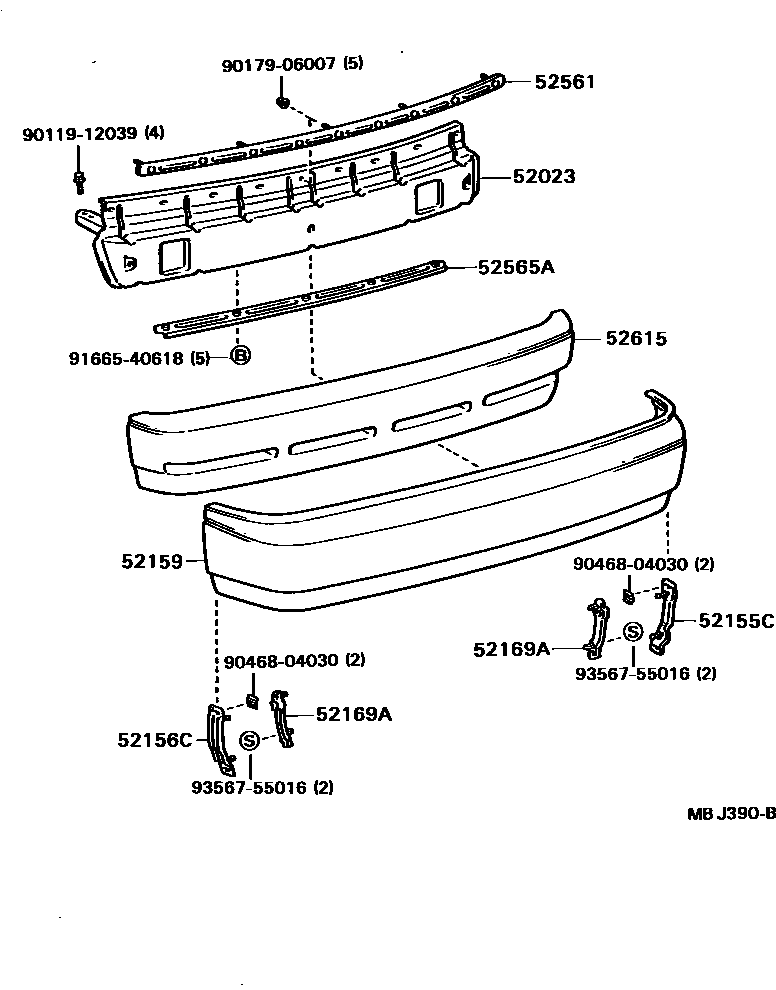

REAR BUMPER & BUMPER STAY

0001 1 0002 1

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-20160iAT160,ST162..CP198508-198708

main52023-20170iAT160,ST162,182..LB198508-198708

52155CSUPPORT, REAR BUMPER SIDE, NO.1 RH

main52155-20130iAT160,ST162..CP198508-198708

main52155-20140iAT160,ST162,182..LB198508-198708

52156CSUPPORT, REAR BUMPER SIDE, NO.1 LH

main52155-20130iAT160,ST162..CP198508-198708

main52155-20140iAT160,ST162,182..LB198508-198708

52159COVER, REAR BUMPER

main52159-20908iAT160,ST162,182..LB198508-198708

main52159-20909iAT160,ST162..CP198508-198708

52169ASUPPORT, REAR BUMPER SIDE, NO.3

main52169-20030iAT160,ST162,182198508-198708

52561RETAINER, REAR BUMPER, UPPER CENTER

main52521-20070iAT160,ST162,182..LB198508-198708

main52561-20090iAT160,ST162..CP198508-198708

52565ARETAINER, REAR BUMPER, LOWER

main52565-20060iAT160,ST162..CP198508-198708

main52565-20080iAT160,ST162,182..LB198508-198708

52615ABSORBER, REAR BUMPER ENERGY

main52615-20070iAT160,ST162..CP198508-198708

main52615-20080iAT160,ST162,182..LB198508-198708

9011912039

main90119-12039

9017906007

main90179-06007

9046804030

main90468-04030

9166540618

main91665-40618

9356755016

main93567-55016

13 parts on this diagram · 2 diagrams in section
