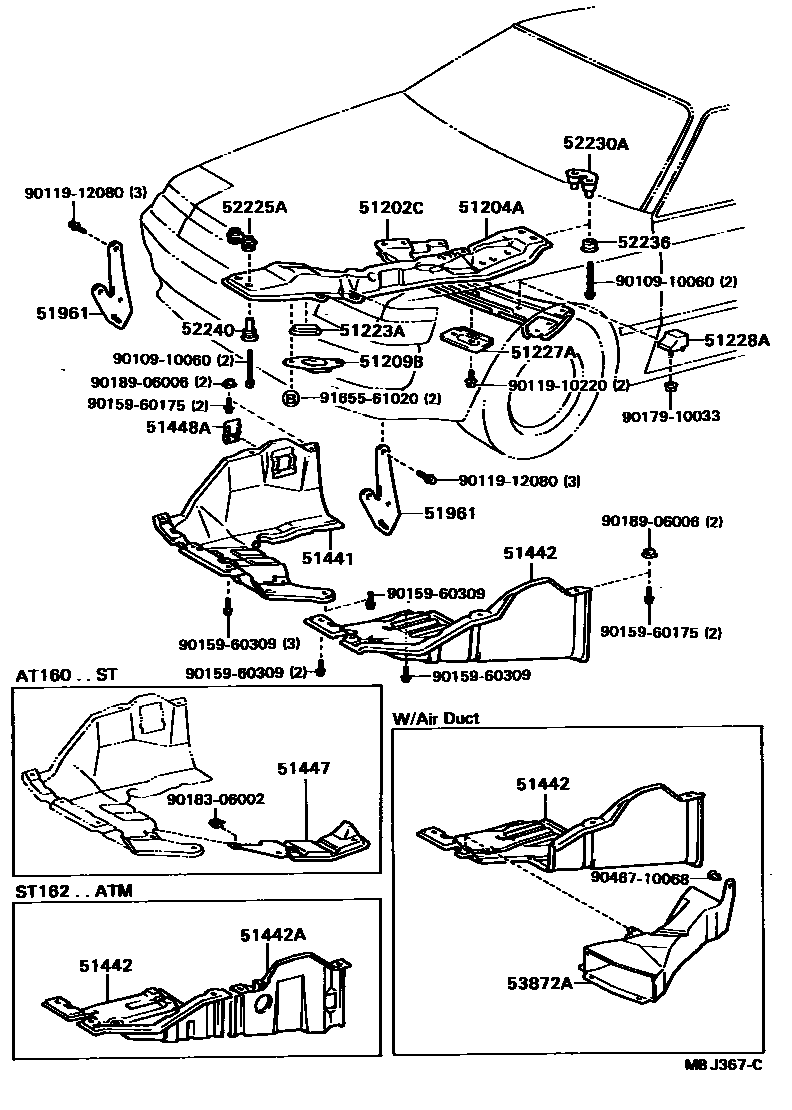

SUSPENSION CROSSMEMBER & UNDER COVER
51202CCROSSMEMBER SUB-ASSY, FRONT SUSPENSION, LOWER
51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER
51209BPROTECTOR SUB-ASSY, CENTER MEMBER, FRONT
51223ACOVER, ENGINE MOUNTING HOLE
sub51223-20030
51227AWEIGHT, FRONT SUSPENSION MEMBER DAMPER, RH
*ME
51228AWEIGHT, FRONT SUSPENSION MEMBER DAMPER, LH
*ME
51441COVER, ENGINE UNDER, NO.1
*ME
51442COVER, ENGINE UNDER, NO.2
W/AIR DUCT
W/AIR DUCT
W/AIR DUCT
51442ACOVER, ENGINE UNDER, FRONT NO.3
51447GUIDE, ENGINE UNDER COVER AIR
51448ACOVER, ENGINE SIDE UNDER, RH
51961HOOK, NO.1
52225ACUSHION, CENTER MEMBER MOUNTING, FRONT UPPER
sub52225-20050
52230ACUSHION ASSY, CENTER MEMBER MOUNTING, REAR UPPER
52236CUSHION, CENTER MEMBER MOUNTING, REAR LOWER
sub52236-20050
52240CUSHION ASSY, CENTER MEMBER MOUNTING, FRONT LOWER
sub52240-20050
53872ADUCT, AIR, LOWER
9010910060
main90109-10060
9011910220
main90119-10220
9011912080
main90119-12080
9015960175
main90159-60175
9015960309
main90159-60309
9017910033
main90179-10033
9018306002
main90183-06002
9018906006
main90189-06006
9046710068
main90467-10068
9165561020
main91655-61020
27 parts on this diagram · 1 diagram in section
