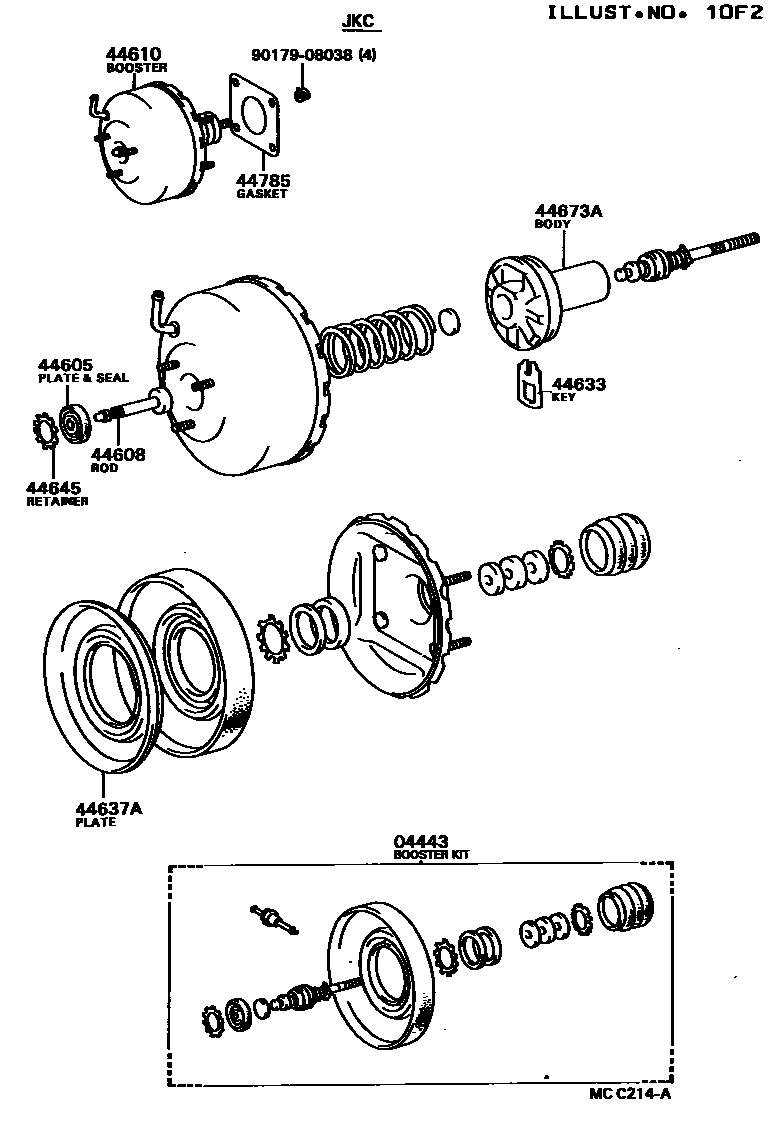

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1

04443BOOSTER KIT, BRAKE

main04443-20580iAT160..CBR198508-198708

main04443-20590iAT160,ST162,182..TWC198508-198708

44605PLATE & SEAL SUB-ASSY, BOOSTER

main44605-22021iAT160,ST162,182198508-198708

sub44605-10080

44608PUSH ROD SUB-ASSY, BOOSTER

main44608-32020iAT160,ST162,182198508-198708

44610BOOSTER ASSY, BRAKE

main44610-20710iAT160,ST162..LHD..TWC198508-198708

main44610-20720iAT160..CBR198508-198708

main44610-20770iAT160,ST162,182..RHD198508-198708

44633KEY, BOOSTER VALVE PLUNGER

main44633-28130iAT160,ST162,182198508-198708

44637APLATE, BOOSTER DIAPHRAGM

main44637-32020iAT160..CBR198508-198708

main44637-32040iAT160,ST162,182..TWC198508-198708

44645RETAINER, BOOSTER PUSH ROD SEAL

main44645-22020iAT160,ST162,182198508-198708

44673ABODY, BOOSTER VALVE

main44673-32020iAT160,ST162,182198508-198708

44785GASKET, BRAKE BOOSTER

main44785-32010iAT160,ST162,182198508-198708

9017908038

main90179-08038

10 parts on this diagram · 3 diagrams in section
