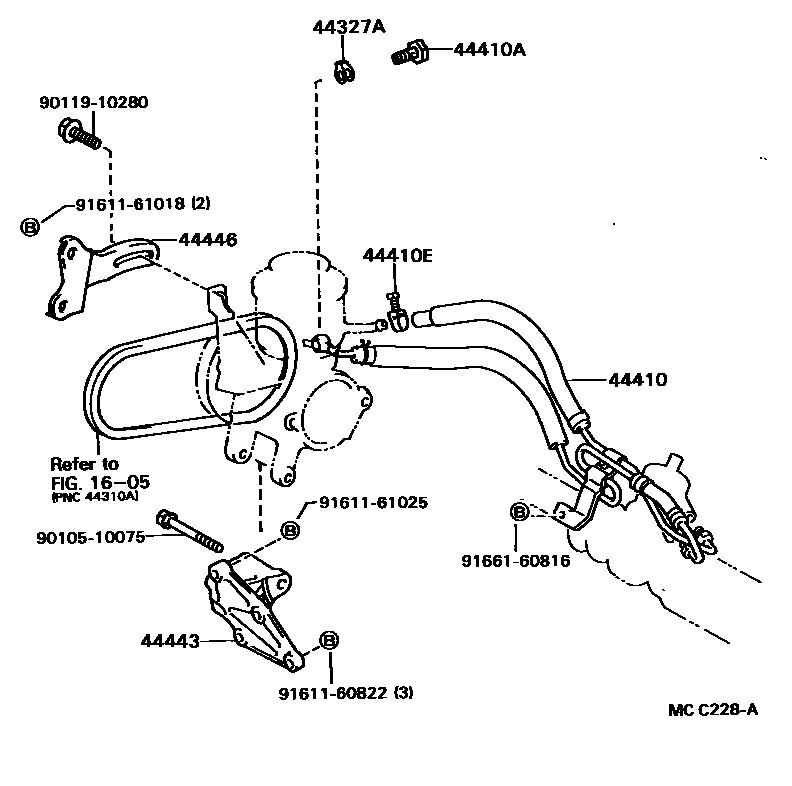

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1 0005 1

1605

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iST162;AT160,ST182..ST,SX198508-198708

44410TUBE ASSY, PRESSURE FEED

main44410-20220iAT160..CBR198508-198708

main44410-20230iAT160..RHD198508-198708

main44410-20250iST162,182..ARL198508-198708

sub44410-20320

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-16008iAT160..CBR198508-198708

44410ECLAMP(FOR PRESSURE FEED TUBE)

main90460-01001iAT160..LHD..TWC198508-198708

GEAR SIDE

main90467-16008iAT160..LHD198508-198708

RESERVOIR SIDE

sub90467-16019

44443BRACKET, PUMP

main44443-12050iAT160..CBR198508-198708

main44443-12060iAT160..TWC198508-198708

main44443-20050iST162,182198508-198708

44446STRUT, ADJUSTING

main44446-12030iAT160..CBR198508-198708

9010510075

main90105-10075

9011910280

main90119-10280

9161160822

main91611-60822

9161161018

main91611-61018

9161161025

main91611-61025

9166160816

main91661-60816

13 parts on this diagram · 5 diagrams in section
