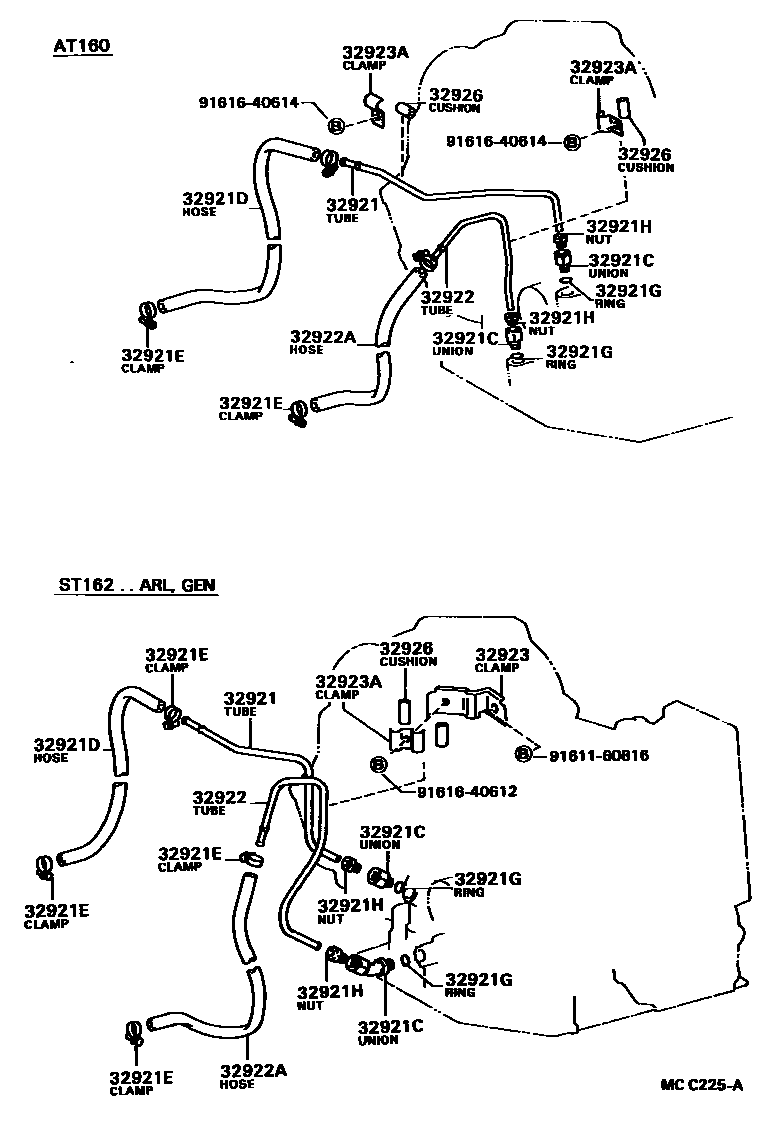

OIL COOLER & TUBE (ATM)

0001 1 0002 1

32921TUBE, OIL COOLER INLET, NO.1

main32921-12310iAT160..4FC198508-198708

main32921-20260iST162..4FC198508-198708

32921CUNION(FOR OIL COOLER TUBE)

main32901-20020iST162..4FC..GT198508-198609

OUTER W/OIL COOLER

sub32901-32010

sub32922-20310

sub32922-32030

sub32922-32040

main32901-32010iST162..4FC198609-198708

OUTLET

main90404-14007iST162..4FC198508-198708

INLET

main90407-14004iST162..4FC..(ARL,GEN)198508-198609

OUTLET

32921DHOSE(FOR OIL COOLER INLET)

main32941-20080iST162..4FC198508-198708

main90445-16028iAT160..4FC198508-198708

sub90445-16030

32921ECLAMP, HOSE(FOR OIL COOLER)

main90460-18002iAT160,ST162..4FC198508-198708

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189iAT160,ST162..4FC198508-198708

32921HNUT, FLARE(FOR OIL COOLER TUBE)

main90402-14004iAT160..4FC198508-198708

OUTLET

main90402-14007iAT160..4FC198508-198708

INLET

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-12240iAT160..4FC198508-198708

main32922-20260iST162..4FC..(ARL,GEN)198508-198609

main32922-20290iST162..4FC..GT198508-198609

W/OIL COOLER

main32922-20310iST162..4FC..GT198609-198708

W/OIL COOLER

main32922-32040iST162..4FC..(ARL,GEN)198609-198708

sub32922-32041

32922AHOSE(FOR OIL COOLER OUTLET)

main90445-16021iAT160..4FC198508-198708

sub90445-16030

main90445-16026iST162..4FC..(ARL,GEN)198508-198708

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32923-20090iST162..4FC198508-198708

32923ACLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main90462-10082iAT160..4FC198508-198708

main90462-12085iST162..4FC198508-198708

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-30011iAT160,ST162..4FC198508-198708

L=25,ID=8

9161160816

main91611-60816

9161640612

main91616-40612

9161640614

main91616-40614

14 parts on this diagram · 2 diagrams in section
