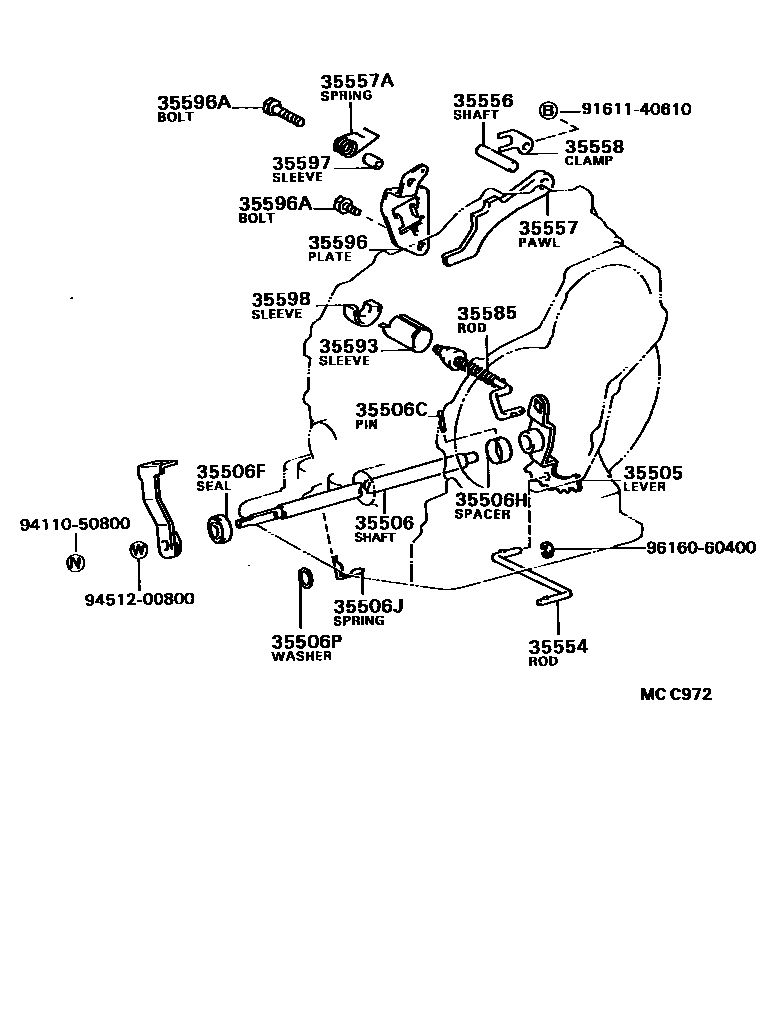

THROTTLE LINK & VALVE LEVER (ATM)
35506SHAFT SUB-ASSY, MANUAL VALVE LEVER
35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)
35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)
35506JSPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)
35506PWASHER, PLATE (FOR MANUAL VALVE LEVER SHAFT)
35554ROD, MANUAL VALVE CONNECTING
35556SHAFT, PARKING LOCK PAWL
35557PAWL, PARKING LOCK
35557ASPRING, TORSION (FOR PARKING LOCK PAWL)
35558CLAMP, PAWL SHAFT
35585ROD, PARKING LOCK
35593SLEEVE, CAM GUIDE
35596PLATE, PAWL STOPPER
35596ABOLT (FOR PAWL STOPPER PLATE)
*8-1.25PX17-13.5,*8-1.25PX17-13.5
35597SLEEVE, SPRING GUIDE
35598SLEEVE, PARKING LOCK
9161140610
main91611-40610
9411050800
main94110-50800
9451200800
main94512-00800
9616060400
main96160-60400
22 parts on this diagram · 3 diagrams in section
