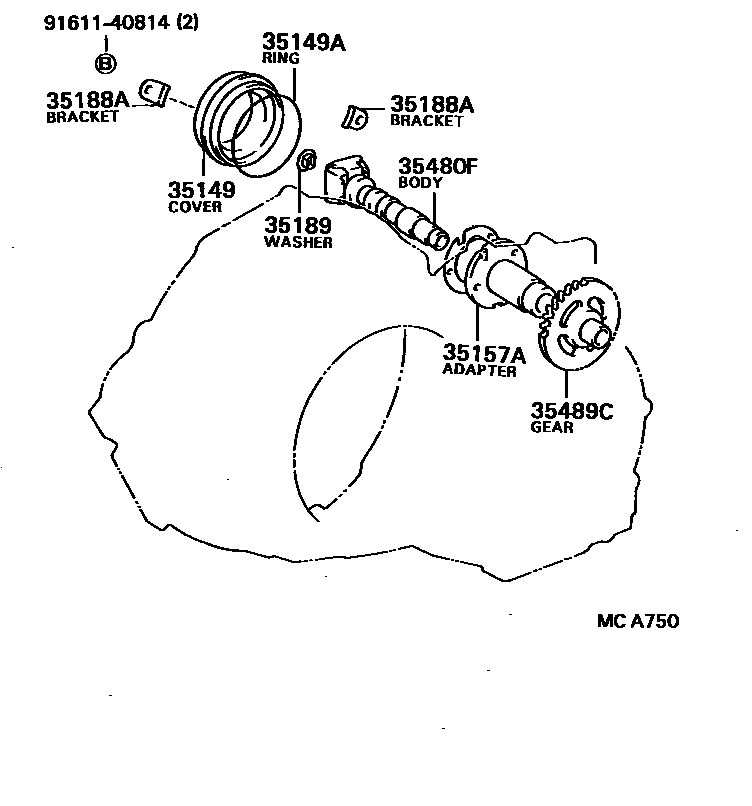

REAR OIL PUMP & GOVERNOR (ATM)

0001 1 0002 1

35149COVER, GOVERNOR

main35149-20010iAT160..4FC198508-198708

main35149-32010iST162..4FC..ST198608-198708

35149ARING, O (FOR GOVERNOR COVER)

main90301-67001iST162..4FC..ST198608-198708

main90301-68001iAT160..4FC198508-198708

35157AADAPTER, GOVERNOR BODY

main35157-20031iAT160..4FC198508-198708

main35157-32011iST162..4FC..ST198608-198708

35188ABRACKET, GOVERNOR COVER

main35188-20010×2iAT160..4FC198508-198708

main35188-32011iST162..4FC198508-198708

35189WASHER, GOVERNOR THRUST, NO.1

main35189-32010iAT160..4FC198508-198708

sub35189-32011

35480FBODY ASSY, GOVERNOR

main35480-20021iAT160..4FC198508-198708

main35480-32012iST162..4FC..ST198608-198708

sub35480-32013

35489CGEAR, GOVERNOR DRIVEN

main35489-12010iAT160..4FC198508-198708

9161140814

main91611-40814

8 parts on this diagram · 2 diagrams in section
