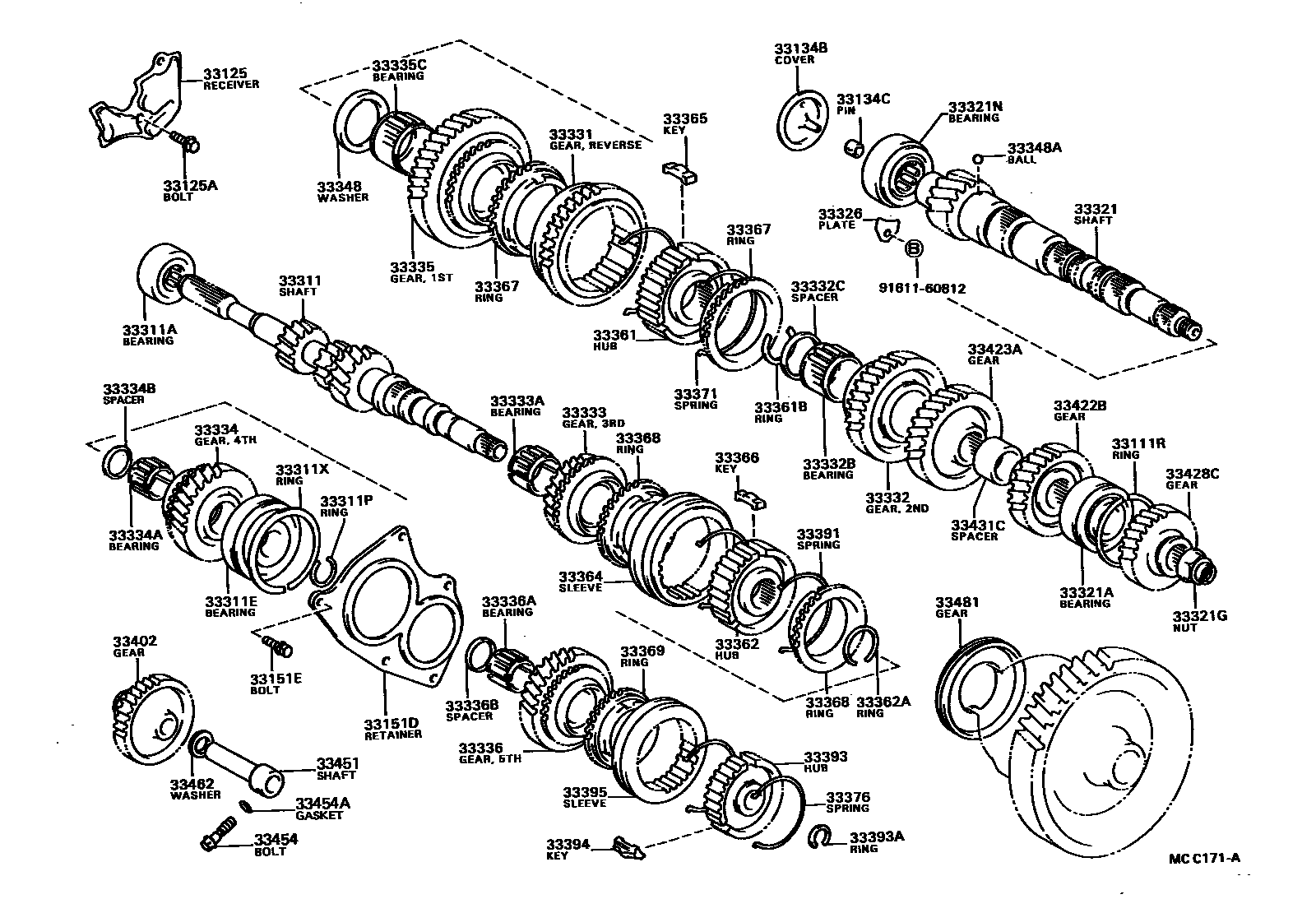

TRANSMISSION GEAR (MTM)
33111RRING, HOLE SNAP(FOR OUTPUT SHAFT REAR BEARING)
33125RECEIVER, MANUAL TRANSAXLE CASE
33125ABOLT(FOR TRANSAXLE CASE RECEIVER)
sub91611-B0616
33134CPIN, SLOTTED SPRING(FOR OUTPUT SHAFT)
33311SHAFT, INPUT
sub33311-12180
33311ABEARING (FOR INPUT SHAFT FRONT)
33311PRING, SHAFT SNAP (FOR INPUT SHAFT REAR BEARING)
T=2.29-2.34,MARK A,T=2.29
T=2.35-2.40,MARK B,T=2.35
T=2.41-2.46,MARK C,T=2.41
T=2.47-2.52,MARK D,T=2.47
T=2.53-2.58,MARK E,T=2.53
T=2.59-2.64,MARK F,T=2.59
T=2.15-2.20,MARK A,T=2.15
T=2.20-2.25,MARK B,T=2.20
T=2.25-2.30,MARK C,T=2.25
T=2.30-2.35,MARK D,T=2.30
T=2.35-2.40,MARK E,T=2.35
33311XRING, HOLE SNAP (FOR INPUT SHAFT REAR BEARING)
33321GNUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET)
33321NBEARING (FOR OUTPUT SHAFT FRONT)
33326PLATE, BEARING LOCK
33331GEAR, REVERSE
sub33331-32020
33332GEAR, 2ND
33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)
33332CSPACER (FOR 2ND GEAR BEARING)
33333GEAR, 3RD
sub33034-32H03
33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)
33334GEAR, 4TH
33334ABEARING, NEEDLE ROLLER (FOR 4TH GEAR)
33334BSPACER (FOR 4TH GEAR BEARING)
33335GEAR, 1ST
sub33032-32030
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
33336BSPACER (FOR 5TH GEAR BEARING)
33348WASHER, 1ST GEAR THRUST
33348APIN OR BALL (FOR 1ST GEAR THRUST WASHER)
33361BRING, SHAFT SNAP (FOR CLUTCH HUB NO.1)
T=2.50-2.55,MARK 1,T=2.50
T=2.55-2.60,MARK 2,T=2.55
T=2.60-2.65,MARK 3,T=2.60
T=2.65-2.70,MARK 4,T=2.65
T=2.70-2.75,MARK 5,T=2.70
T=2.75-2.80,MARK 6,T=2.75
T=2.50-2.55,MARK A,T=2.50
T=2.56-2.61,MARK B,T=2.56
T=2.62-2.67,MARK C,T=2.62
T=2.68-2.73,MARK D,T=2.68
T=2.74-2.79,MARK E,T=2.74
T=2.80-2.85,MARK F,T=2.80
33362HUB, TRANSMISSION CLUTCH, NO.2
33362ARING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)
T=2.30-2.35,MARK 0,T=2.30
T=2.36-2.41,MARK 1,T=2.36
T=2.42-2.47,MARK 2,T=2.42
T=2.48-2.53,MARK 3,T=2.48
T=2.54-2.59,MARK 4,T=2.54
T=2.60-2.65,MARK 5,T=2.62
T=2.30,T=2.30
T=2.36,T=2.36
T=2.42,T=2.42
T=2.48,T=2.48
T=2.54,T=2.54
T=2.62,T=2.62
T=1.95-1.99,MARK 1,T=1.95
T=2.00-2.04,MARK 2,T=2.00
T=2.05-2.09,MARK 3,T=2.05
T=2.10-2.14,MARK 4,T=2.10
T=2.15-2.19,MARK 5,T=2.15
T=2.20-2.24,MARK 6,T=2.20
33364SLEEVE, TRANSMISSION HUB, NO.2
33365KEY, SYNCHROMESH SHIFTING, NO.1
33366KEY, SYNCHROMESH SHIFTING, NO.2
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33376SPRING, SYNCHROMESH SHIFTING KEY (FOR NO.3 CLUTCH HUB)
33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33393HUB, TRANSMISSION CLUTCH, NO.3
33393ARING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3)
T=2.25-2.30,MARK A,T=2.25
T=2.31-2.36,MARK B,T=2.31
T=2.37-2.42,MARK C,T=2.37
T=2.43-2.48,MARK D,T=2.43
T=2.49-2.54,MARK E,T=2.49
T=2.55-2.60,MARK F,T=2.55
T=2.61-2.66,MARK G,T=2.61
T=1.60-1.65,MARK 1,T=1.60
T=1.65-1.70,MARK 2,T=1.65
T=1.70-1.75,MARK 3,T=1.70
T=1.75-1.80,MARK 4,T=1.75
T=1.80-1.85,MARK 5,T=1.80
T=1.85-1.90,MARK 6,T=1.85
T=1.90-1.95,MARK 7,T=1.90
T=1.95-2.00,MARK 8,T=1.95
T=2.00-2.05,MARK 9,T=2.00
T=2.05-2.10,MARK 10,T=2.05
T=2.10-2.15,MARK 11,T=2.10
T=2.15-2.20,MARK 12,T=2.15
T=2.20-2.25,MARK 13,T=2.20
T=2.25-2.30,MARK 14,T=2.25
T=2.30-2.35,MARK 15,T=2.30
33395SLEEVE, TRANSMISSION HUB, NO.3
33402GEAR SUB-ASSY, REVERSE IDLER
33423AGEAR, 3RD DRIVEN
33428CGEAR, 5TH DRIVEN
sub33428-12140
33431CSPACER, OUTPUT GEAR
33451SHAFT, REVERSE IDLER GEAR
33454BOLT, SHAFT RETAINING
33454AGASKET (FOR SHAFT RETAINING BOLT)
sub90430-08010
33462WASHER, REVERSE IDLER THRUST
33481GEAR, SPEEDOMETER DRIVE (MTM)
N=35,MARK 35X29-31
N=25,NO MARK
9161160812
main91611-60812
61 parts on this diagram · 2 diagrams in section
