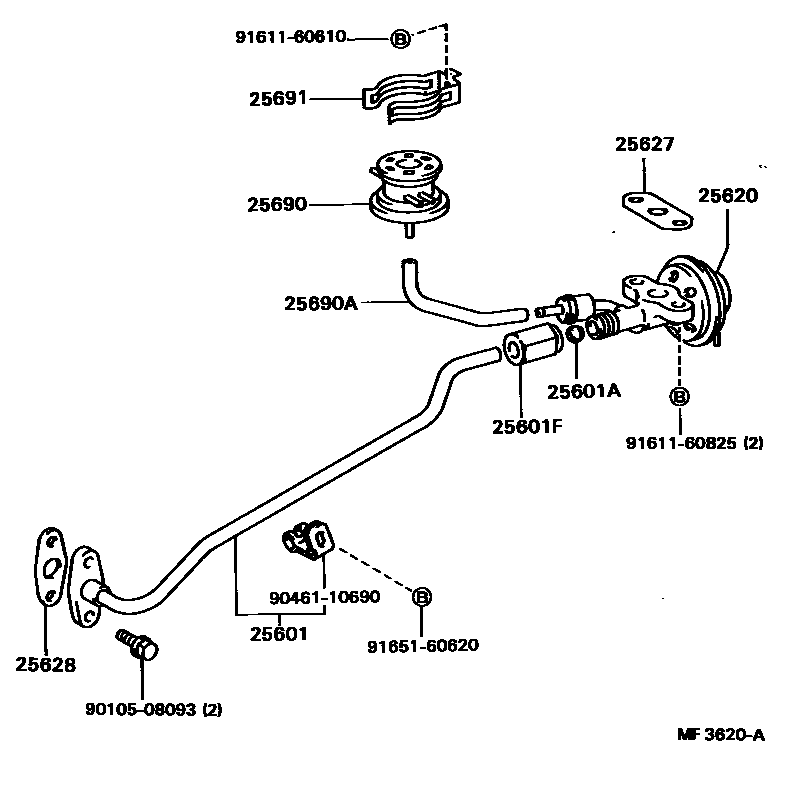

EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1

25601PIPE SUB-ASSY, EGR, NO.1

main25601-74020i3SGELC..ST162,182198508-198708

main25611-74030i3SFE..ST162198608-198708

25601ASLEEVE, BALL, EGR PIPE, NO.1

main90410-12042i3SFE,3SGELC..ST162,182198508-198708

25601FUNION(FOR EGR PIPE, NO.1)

main90402-20009i3SGELC..ST162,182198508-198708

main90402-20073i3SFE..ST162198608-198708

25620VALVE ASSY, EGR

main25620-74080i3SGELC..ST162,182198508-198708

main25620-74110i3SFE..ST162..5F198608-198708

main25620-74120i3SFE..ST162..4FC198608-198708

25627GASKET, EGR VALVE

main25627-74010i3SFE..ST162198608-198708

sub25627-74011

main25627-74040i3SGELC..ST162,182198508-198708

sub25627-74060

25628GASKET, EGR INLET

main25634-74010i3SGELC..ST162,182198508-198708

sub25634-74020

25690MODULATOR ASSY, EGR VACUUM

main25870-74070i3SGELC..ST182198508-198708

main25870-74080i3SGELC..ST162198508-198708

main25870-74090i3SFE..ST162..5F198608-198708

main25870-74100i3SFE..ST162..4FC198608-198708

sub25870-74090

25690AHOSE(FOR EGR VACUUM MODULATOR)

main25695-74010i3SGELC..ST162,182198508-198708

main90445-11065i3SFE..ST162198608-198708

25691BRACKET, EGR VACUUM MODULATOR

main25691-74030i3SGELC..ST162,182198508-198708

main25691-74040i3SFE..ST162198608-198708

sub25691-74080

9010508093

main90105-08093

9046110690

main90461-10690

9161160610

main91611-60610

9161160825

main91611-60825

9165160620

main91651-60620

14 parts on this diagram · 2 diagrams in section
