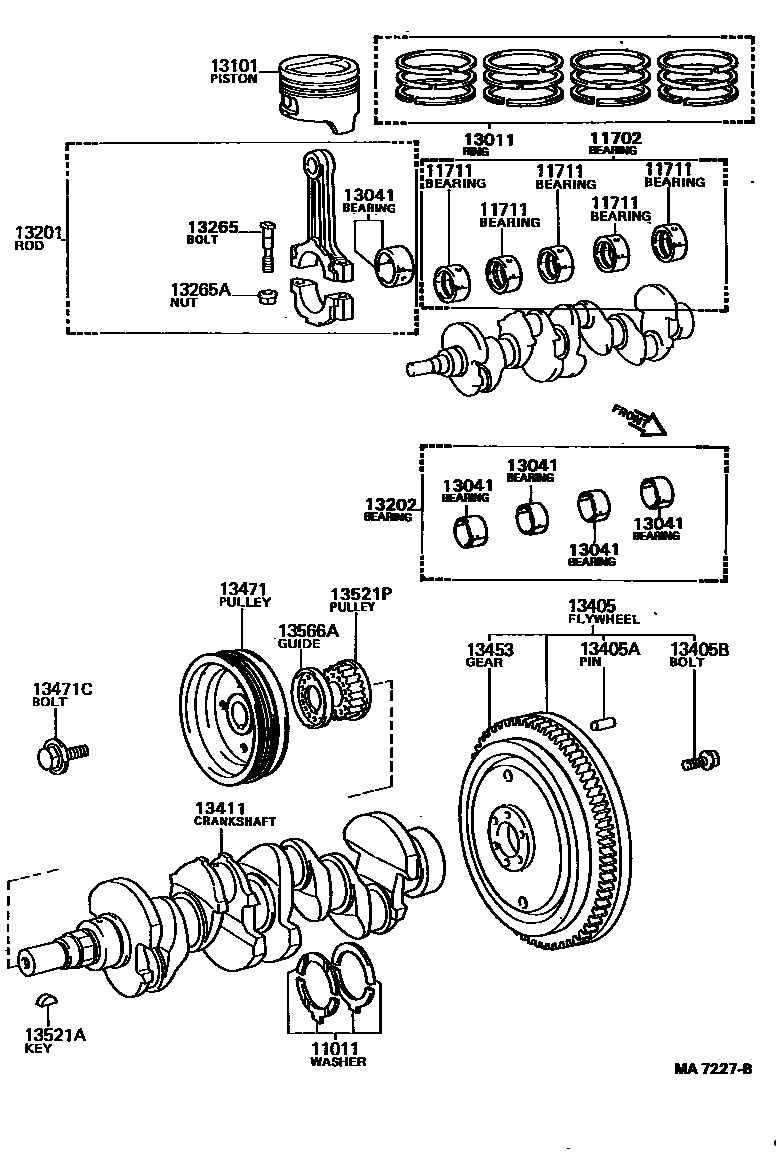

CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
STD
11702BEARING SET, CRANKSHAFT
11711BEARING, CRANKSHAFT
NO.1,2,4,5 MARK"1",MARK 1
NO.1,2,4,5 MARK"2",MARK 2
NO.1,2,4,5 MARK"3",MARK 3
NO.1,2,4,5 MARK"4",MARK 4
NO.1,2,4,5 MARK"5",MARK 5
13041BEARING, CONNECTING ROD
MARK"1",MARK 1
MARK"2",MARK 2
MARK"3",MARK 3
MARK"1",MARK 1
MARK"2",MARK 2
MARK"3",MARK 3
MARK"1",MARK 1
MARK"2",MARK 2
MARK"3",MARK 3
13101PISTON SUB-ASSY, W/PIN
STD,STD
STD,STD
STD
STD
O/S 0.50,O/S 0.50
O/S 0.50,O/S 0.50
13202BEARING SET, CONNECTING ROD
U/S 0.25
13265BOLT, CONNECTING ROD
13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=23,OD=8
L=18,OD=8,L=18,OD=8
13405BBOLT, FLYWHEEL SETTING
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
13566AGUIDE, TIMING BELT
20 parts on this diagram · 4 diagrams in section
