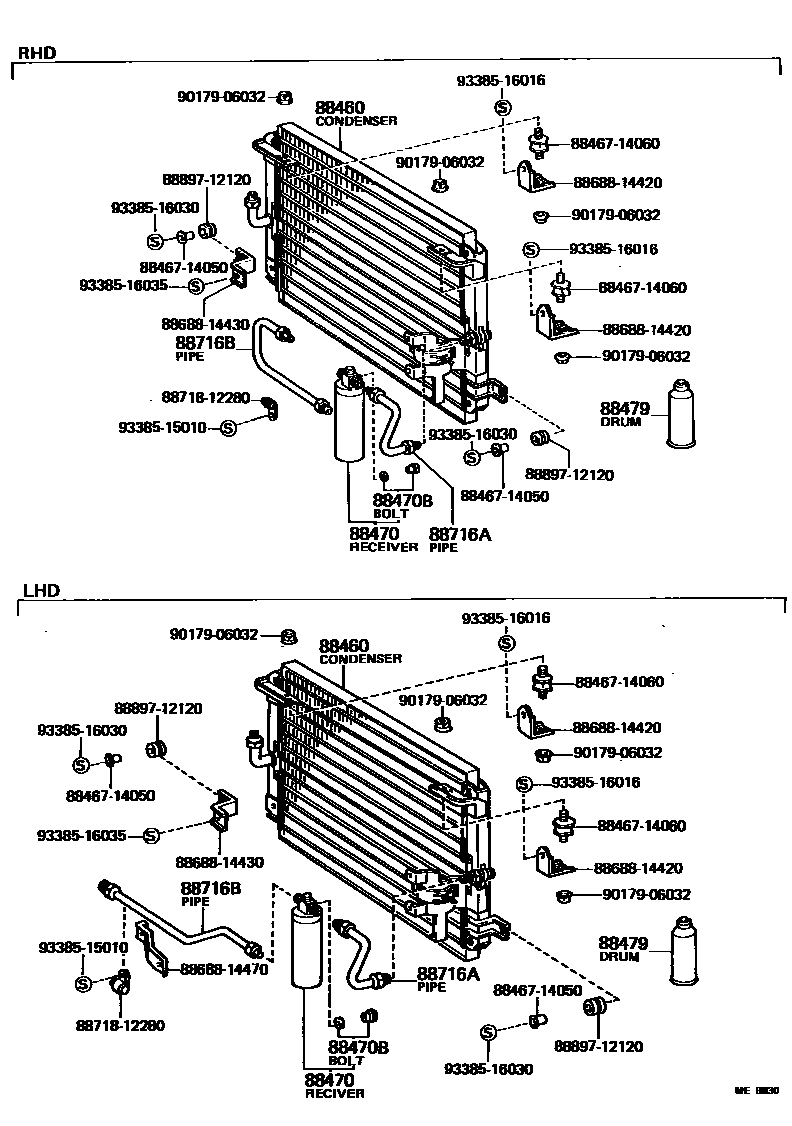

HEATING & AIR CONDITIONING - COOLER PIPING
88460CONDENSER ASSY, COOLER
main88460-14210iRA61..RHD;RA61..LHD..4FC;RA61..LHD..5F..EUG;AA63,RA60,63,65,TA60;RA61..5F..XT..(GEN,SAA)198108-198507
88470RECEIVER & DRYER ASSY, COOLER
sub88470-14010
main88470-14010iAA63,TA60;RA61..RHD;RA61..LHD..4FC;RA61..LHD..5F..EUG;RA61..5F..XT..(GEN,SAA)198208-198512
sub04884-33110
88470BBOLT, FUSE
main88475-12020iAA63,RA65,TA60;MA61,RA61..RHD;RA61..5F..XT..GEN;MA61..LHD..5F..TWC;RA61..LHD..5F..EUG;RA61..LHD..4FC..(EUR,GEN);MA61..LHD..4FC..TWC..(EUR,GEN)198408-198512
main90099-04579iMA61,RA61..RHD;MA61..LHD..TWC;RA61..LHD..4FC;AA63,RA60,63,TA60;RA61..LHD..5F..EUG;RA61..5F..XT..(GEN,SAA)198108-198408
sub88475-12020
88479FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
main90986-02001iMA61,RA61..RHD;MA61..LHD..TWC;RA61..LHD..4FC;RA61..LHD..5F..EUG;AA63,RA60,63,65,TA60;RA61..5F..XT..(GEN,SAA)198108-198512
400G
sub90986-02004
sub90986-02005
88716APIPE, COOLER REFRIGERANT LIQUID, A
main88716-14730iRA61..RHD;RA61..LHD..4FC;AA63,RA60,63,TA60;RA61..LHD..5F..EUG;RA61..5F..XT..(GEN,SAA)198108-198507
88716BPIPE, COOLER REFRIGERANT LIQUID, B
HONG KONG SPEC
main88716-14850iRA61..LHD..4FC;RA61..LHD..5F..EUG;AA63,RA60,63,TA60..LHD;RA61..5F..XT..(GEN,SAA)198108-198507
8846714050CUSHION, COOLER CONDENSER, NO.1
main88467-14050
8846714060CUSHION, COOLER CONDENSER, NO.1
main88467-14060
8868814420BRACKET, COOLER DIAPHRAGM
main88688-14420
8868814430BRACKET, COOLER DIAPHRAGM
main88688-14430
8868814470BRACKET, COOLER DIAPHRAGM
main88688-14470
8871812280PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-12280
8889712120VALVE, COOLER MAGNET
main88897-12120
9017906032
main90179-06032
9338515010
main93385-15010
9338516016
main93385-16016
9338516030
main93385-16030
9338516035
main93385-16035
18 parts on this diagram · 7 diagrams in section
