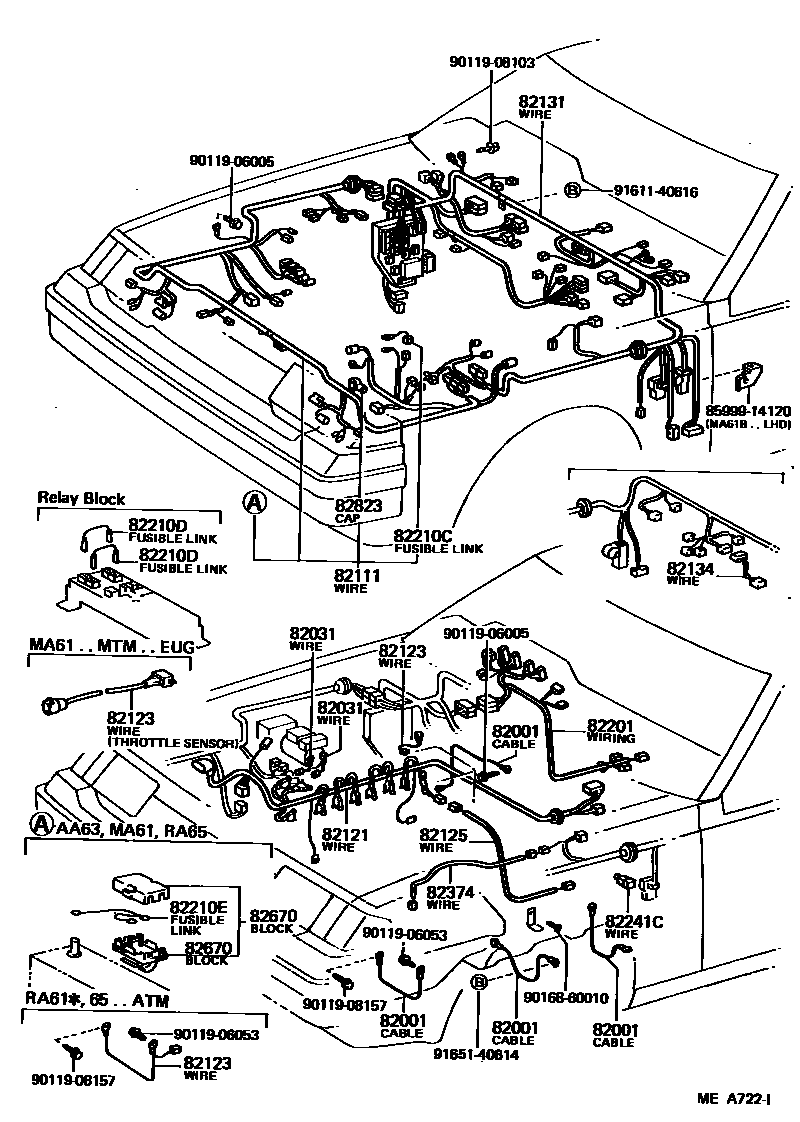

WIRING & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

82001CABLE, BOND, NO.1

main90980-07083iMA61¥920198112-198308

ENGINE--DASH PANEL

main90980-07147iTA60..TCB¥1,010198112-198204

ENGINE--DASH PANEL

main90980-07148iRA61..EUG;MA61,RA60,63,TA60¥540198108-198204

TRANSMISSION--FLOOR

main90980-07148iAA63,MA61,RA6#,SA63,TA60¥540198204-198512

TRANSMISSION--FLOOR,L=260

main90980-07174iRA65¥590198408-198507

main90980-07176iAA63,MA61,RA6#,SA63,TA60¥680198204-198512

TRANSMISSION--FLOOR,L=300

main90980-07196iAA63,RA60,61,65,SA63,TA60¥1,920198108-198507

ENGINE--SIDE MEMBER

main90980-07200iRA61,SA63,TA60¥580198108-198507

ENGINE-DASH PANEL

main90980-07200iMA61¥580198308-198512

ENGINE--DASH PANEL

main90980-07202iRA63¥2,000198108-198308

ENGINE--SIDE MEMBER

main90980-07233iAA63¥740198401-198507

ENGINE-DASH PANEL

82031WIRE SUB-ASSY, IGNITION COIL

main82031-12060iMA61..EFI;MA61..GEN,SA,SAA¥400198308-198512

sub82031-30160

main82031-12490iRA63198108-198308

(+)

main82031-12490iRA60..RHD..GEN198108-198308

HONG KONG SPEC

main82031-12490iTA60..EUG198108-198507

main82031-14040iRA63198108-198308

(-)

main82123-14050iRA60..GEN,ME;RA61..ST..SDZ198108-198507

(+)

main82123-14060iRA60..GEN,ME;RA61..ST..SDZ198108-198507

(-)

82111WIRE, ENGINE ROOM MAIN

main82111-14161iTA60198108-198209

main82111-14162iTA60198209-198301

main82111-14163iTA60198301-198308

main82111-14171iRA60..ARL198108-198209

main82111-14172iRA60..ARL198209-198308

main82111-14181iRA60,61..RHD..(EUR,GEN)198108-198209

main82111-14182iRA60,61..RHD..(EUR,GEN)198209-198301

main82111-14183iRA60,61..RHD..(EUR,GEN)198301-198308

main82111-14191iRA60,61..LHD198108-198209

main82111-14192iRA60,61..LHD198209-198301

main82111-14193iRA60,61..LHD198301-198308

main82111-14201iRA63..RHD198108-198112

main82111-14202iRA63..RHD198112-198209

main82111-14203iRA63..RHD198209-198301

main82111-14204iRA63..RHD198301-198308

main82111-14211iRA63..LHD198108-198209

main82111-14212iRA63..LHD198209-198301

main82111-14213iRA63..LHD198301-198308

main82111-14241iMA61..RHD198112-198301

main82111-14260iMA61..LHD198112-198301

main82111-14261iMA61..LHD198301-198308

main82111-14420iMA61..RHD198301-198308

main82111-14480iSA63198308-198408

main82111-14490iAA63..LHD198308-198507

main82111-14500iAA63..RHD198308-198507

main82111-14510iMA61..RHD..TWC198308-198512

main82111-14720iMA61..LHD198308-198512

main82111-14740iMA61..ARL198308-198512

main82111-14840iTA60198308-198507

main82111-14850iRA61..LHD198308-198408

main82111-14860iRA61..RHD198308-198408

main82111-1B010iRA61..RHD198408-198507

main82111-1B020iRA61..LHD198408-198507

main82111-1B030iRA65198408-198507

82121WIRE, ENGINE

main82121-14060iMA61..LHD198112-198308

main82121-14070iMA61..RHD198112-198308

main82121-14160iAA63..LHD198308-198507

main82121-14170iAA63..RHD198308-198507

main82121-14180iMA61..SDZ198308-198512

main82121-14190iMA61..ARL198308-198512

main82121-14230iMA61..LHD..EUG198308-198512

main82121-14250iMA61..RHD..EUG198308-198512

main82121-14340iMA61..LHD..(GEN,SAA)198308-198512

main82121-14360iMA61..RHD..(GEN,SA)198308-198512

main82121-14410iRA65198408-198507

82123WIRE, ENGINE, NO.3

main82123-14020iSA63¥710198308-198408

main82123-14100iRA61;RA65..4FC198502-198507

main82123-14110iMA61..5F..EUG¥1,260198308-198512

82125WIRE, TRANSMISSION

main82125-14021iRA60,61,65..5F¥980198108-198507

main82125-14041iTA60..3FC198108-198308

main82125-14071iTA60..5F198108-198507

main82125-24010iMA61,SA63..5F198206-198512

main82310-24010iMA61¥3,130198112-198206

sub82125-24010

82131WIRE, COWL

main82131-14021iRA60..ARL198108-198308

main82131-14360iMA61..LHD..EUG198112-198209

main82131-14361iMA61..LHD..EUG198209-198211

main82131-14362iMA61..LHD..EUG198211-198308

main82131-14370iMA61..RHD198112-198209

main82131-14371iMA61..RHD198209-198211

main82131-14372iMA61..RHD198211-198308

main82131-14431iTA60198108-198211

main82131-14432iTA60198211-198308

main82131-14441iRA60,61..RHD..(EUR,GEN)198108-198211

main82131-14442iRA60,61..RHD..(EUR,GEN)198211-198308

main82131-14451iRA60,61..LHD198108-198211

main82131-14452iRA60,61..LHD198211-198308

main82131-14461iRA63..RHD198108-198308

main82131-14471iRA63..LHD198108-198112

main82131-14472iRA63..LHD198112-198211

main82131-14473iRA63..LHD198211-198308

main82131-14740iMA61..LHD..EUG198209-198308

GENERAL COUNTRIES SPEC

main82131-14740iMA61..SAA198208-198308

main82131-14880iAA63..RHD198308-198408

main82131-14881iAA63..RHD198408-198507

main82131-14890iAA63..LHD198308-198408

main82131-14891iAA63..LHD198408-198507

main82131-1B010iMA61..RHD..(GEN,SA)198308-198408

main82131-1B011iMA61..RHD..(GEN,SA)198408-198512

main82131-1B020iMA61..SDZ198308-198408

main82131-1B021iMA61..SDZ198408-198512

main82131-1B030iSA63198308-198408

main82131-1B040iMA61..ARL198308-198408

main82131-1B041iMA61..ARL198408-198512

main82131-1B140iMA61..LHD..EUG198308-198311

main82131-1B141iMA61..LHD..EUG198311-198408

main82131-1B142iMA61..LHD..EUG198408-198512

main82131-1B150iMA61..RHD..EUG198308-198408

main82131-1B151iMA61..RHD..EUG198408-198512

main82131-1B210iMA61..LHD..(GEN,SAA)198308-198311

main82131-1B211iMA61..LHD..(GEN,SAA)198311-198408

main82131-1B212iMA61..LHD..(GEN,SAA)198408-198512

main82131-1B340iTA60198308-198408

main82131-1B341iTA60198408-198507

main82131-1B350iRA61..RHD198308-198408

main82131-1B360iRA61..LHD198308-198408

main82131-1B430iMA61..LHD..EUG198308-198311

W/*DS

main82131-1B431iMA61..LHD..EUG198311-198408

W/*DS

main82131-1B432iMA61..LHD..EUG198408-198512

W/*DS

main82131-1B560iRA61..RHD198408-198507

main82131-1B570iRA61..LHD198408-198507

main82131-1B580iRA65198408-198507

82134WIRE, COWL, NO.4

main82134-14010iMA61..LHD..GEN198309-198512

82201WIRING SUB-ASSY, INSTRUMENT PANEL

main82141-14121iRA6#..RHD198108-198308

main82141-14260iMA61..RHD198112-198308

main82141-14730iMA61..ARL198308-198512

main82141-14740iMA61..RHD..TWC198308-198512

82210CFUSIBLE LINK

main90982-08196iAA63,RA6#,SA63,TA60¥1,010198108-198507

main90982-08198iMA61¥1,340198112-198512

82210DFUSIBLE LINK

main90982-08125iAA63,MA61,RA6#,SA63,TA60¥270198108-198512

1.0YELLOW,L=110,1.0 YELLOW

main90982-08157iAA63,MA61,RA6#,SA63,TA60¥540198108-198512

FL 0.3 PINK,0.3 PINK

82210EFUSIBLE LINK

main90982-08211iMA61;AA63,RA65..RHD¥1,460198308-198512

main90982-08225iAA63..LHD¥1,440198308-198507

82241CWIRE, RELAY

main82241-22100iTA60..LT..EUG198108-198308

82374WIRE, WASHER

main82374-14080iRA61,63,TA60..EUR198108-198507

W/*HC

main82374-14090iMA61..LHD..EUR198208-198512

W/*HC

main82374-24010iMA61..RHD198112-198308

W/*HC

82670BLOCK ASSY, JUNCTION, NO.1

main82670-14050iAA63..LHD198308-198507

main82670-14060iMA61;AA63,RA65..RHD¥2,290198308-198512

82823CAP, TERMINAL, NO.1

main82823-22020iAA63,MA61,RA60,61,65,SA63,TA60¥310198108-198512

sub82823-12020¥320

8599914120BRACKET, COMBINATION RELAY

main85999-14120

9011906005

main90119-06005¥80

9011906053

main90119-06053¥80

9011908103

main90119-08103¥90

9011908157

main90119-08157¥140

9016860010

main90168-60010¥170

9161140616

main91611-40616¥220

9165140614

main91651-40614¥160

24 parts on this diagram · 10 diagrams in section
