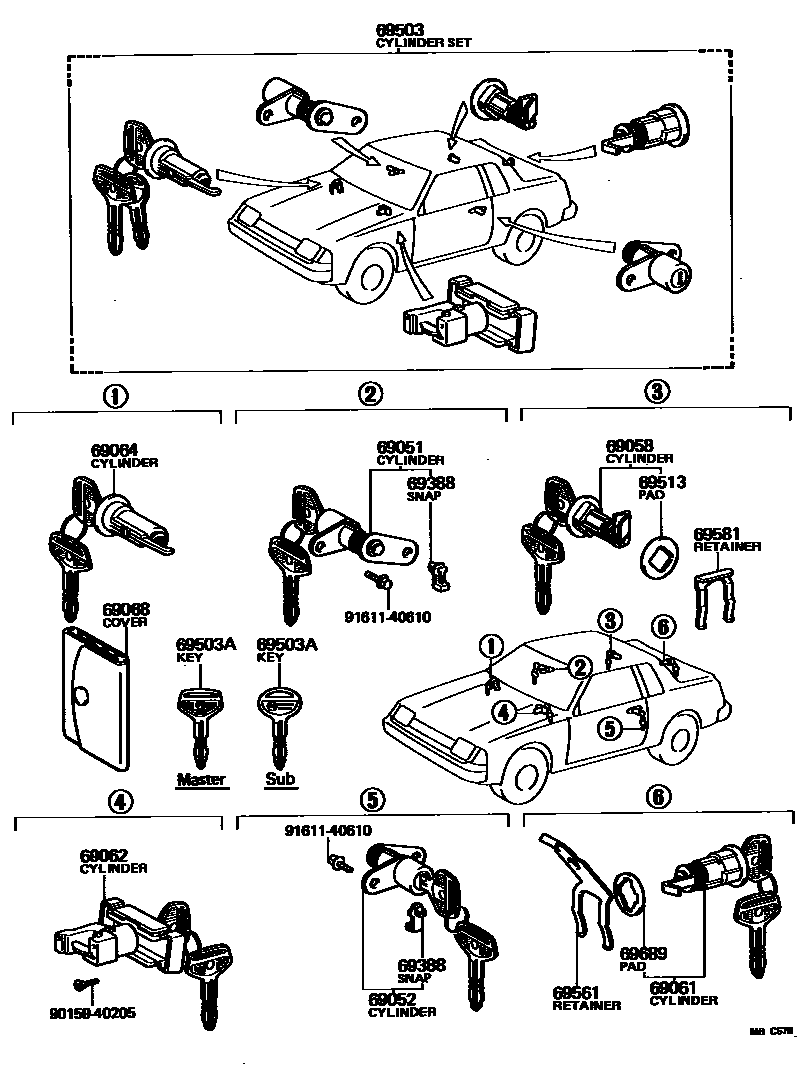

LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-14070iMA61..RHD198209-198308

GENERAL COUNTRIES SPEC

sub69051-14090

main69051-14070iRA60,63,TA60..ARL,GEN,ME198108-198308

sub69051-14090

main69051-14071iAA63,RA6#,SA63,TA60..ARL,GEN,SAA198308-198507

sub69051-14101

main69051-14090iMA61,RA61,63,TA60..EUR198108-198308

main69051-14091iAA63,RA61,TA60..EUR198308-198507

main69051-14100iMA61..LHD..EUG198209-198308

GENERAL COUNTRIES SPEC

sub69051-14090

main69051-14100iMA61..SAA198208-198308

sub69051-14090

main69051-14110iMA61..RHD..(ARL,GEN,SA)198308-198512

sub69051-14101

main69051-14120iMA61..LHD..(GEN,SAA)198308-198512

sub69051-14101

main69051-14130iMA61..EUR198308-198512

sub69051-14101

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-14070iMA61..RHD198209-198308

GENERAL COUNTRIES SPEC

sub69052-14090

main69052-14070iRA60,63,TA60..ARL,GEN,ME198108-198308

sub69052-14090

main69052-14071iAA63,RA6#,SA63,TA60..ARL,GEN,SAA198308-198507

sub69052-14091

main69052-14090iMA61,RA61,63,TA60..EUR198108-198308

main69052-14091iAA63,RA61,TA60..EUR198308-198507

main69052-14100iMA61..LHD..EUG198209-198308

GENERAL COUNTRIES SPEC

main69052-14100iMA61..SAA198208-198308

main69052-14110iMA61..EUR198308-198512

sub69052-14091

main69052-14120iMA61..RHD..(ARL,GEN,SA)198308-198512

main69052-14130iMA61..LHD..(GEN,SAA)198308-198408

sub69052-14101

main69052-14131iMA61..LHD..(GEN,SAA)198408-198512

sub69052-14091

69058CYLINDER & KEY SET, FUEL FILLER LID

main69058-19135iMA61..RHD198209-198308

GENERAL COUNTRIES SPEC

sub69058-14060

main69058-19135iAA63,RA6#,SA63,TA60..ARL,GEN,ME,SAA198108-198507

sub69058-14060

main69058-19145iMA61,RA61,63,TA60..EUR198108-198507

main69058-19245iMA61..LHD..EUG198209-198308

GENERAL COUNTRIES SPEC

main69058-19245iMA61..SAA198208-198308

69061CYLINDER & KEY SET, LUGGAGE LOCK

main69055-14230iMA61..RHD..(ARL,GEN,SA)198308-198512

main69055-14240iMA61..EUR198308-198512

sub69055-19405

main69055-14250iMA61..LHD..(GEN,SAA)198308-198408

main69055-14251iMA61..LHD..(GEN,SAA)198408-198512

main69055-19395iMA61..RHD198209-198308

GENERAL COUNTRIES SPEC

sub69055-19565

main69055-19395iAA63,RA6#,SA63,TA60..LB..(ARL,GEN,ME,SAA)198108-198507

sub69055-19565

main69055-19405iAA63,RA61,TA60..LB..EUR198108-198507

main69055-19415iAA63,RA6#,SA63,TA60..CP..(ARL,GEN,ME,SAA)198108-198507

sub69055-19575

main69055-19425iAA63,RA61,63,TA60..CP..EUR198108-198507

main69055-19565iMA61..LHD..EUG198209-198308

GENERAL COUNTRIES SPEC

main69055-19565iMA61..SAA198208-198308

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-14030-01iMA61..RHD198209-198308

GEN SPEC,BLACK,BLACK,TRIM2#

sub69056-20120

sub69056-14030

main69056-14030-01iAA63,RA6#,SA63,TA60..ARL,GEN,ME,SAA198108-198507

BLACK,BLACK,TRIM2#

sub69056-20120

sub69056-14030

main69056-14030-02iMA61..RHD198209-198308

GEN SPEC,TERRA COTTA,RED/MAROON,TRIM3#

sub69056-20120

sub69056-14030

main69056-14030-04iMA61..RHD198209-198308

GEN SPEC,BLUE,BLUE,TRIM8#

sub69056-20120

sub69056-14030

main69056-14040-01iAA63,RA61,TA60..EUR198108-198507

BLACK,BLACK,TRIM2#

sub69056-14050

main69056-14040-04iMA61..EUG198112-198308

BLUE,BLUE,TRIM8#

sub69056-14050

main69056-14040-06iMA61..EUG198112-198308

DARK BROWN,BROWN,TRIM4#

sub69056-14050

main69056-14050-01iMA61..SAA198208-198308

BLACK,BLACK,TRIM2#

sub69056-14050

main69056-14050-01iMA61..LHD..EUG198209-198308

GEN SPEC,BLACK,BLACK,TRIM2#

sub69056-14050

main69056-14050-02iMA61..SAA198208-198308

TERRA COTTA,RED/MAROON,TRIM3#

sub69056-14050

main69056-14050-02iMA61..LHD..EUG198209-198308

GEN SPEC,TERRA COTTA,RED/MAROON,TRIM3#

sub69056-14050

main69056-14050-04iMA61..SAA198208-198308

BLUE,BLUE,TRIM8#

sub69056-14050

main69056-14050-04iMA61..LHD..EUG198209-198308

GEN SPEC,BLUE,BLUE,TRIM8#

sub69056-14050

main69056-14060-01iMA61..RHD..(ARL,GEN,SA)198308-198512

BLACK,BLACK,TRIM2#

sub69056-14050

sub69056-14060

main69056-14060-02iMA61..RHD..(ARL,GEN)198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

sub69056-14050

sub69056-14060

main69056-14060-04iMA61..RHD..(ARL,GEN,SA)198308-198512

BLUE,BLUE,TRIM8#

sub69056-14050

sub69056-14060

main69056-14060-06iMA61..SA198311-198512

DARK BROWN,DARK BROWN,TRIM4#

sub69056-14050

sub69056-14060

main69056-14070-01iMA61..LHD..(GEN,SAA)198308-198512

BLACK,BLACK,TRIM2#

sub69056-14050

main69056-14070-02iMA61..LHD..(GEN,SAA)198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

sub69056-14050

main69056-14070-04iMA61..LHD..(GEN,SAA)198308-198512

BLUE,BLUE,TRIM8#

sub69056-14050

main69056-14080-01iMA61..EUR198308-198512

BLACK,BLACK,TRIM2#

sub69056-14050

main69056-14080-04iMA61..EUR198308-198512

BLUE,BLUE,TRIM8#

sub69056-14050

main69056-14080-06iMA61..EUR198308-198512

DARK BROWN,BROWN,TRIM4#

sub69056-14050

69064CYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-14040iMA61..SAA198208-198308

sub69057-14060

main69057-14040iMA61..LHD..EUG198209-198308

GENERAL COUNTRIES SPEC

sub69057-14060

main69057-14050iMA61..RHD198209-198308

GENERAL COUNTRIES SPEC

sub69057-14060

main69057-14050iAA63,RA6#,SA63,TA60..ARL,GEN,ME,SAA198108-198507

sub69057-14060

main69057-14060iMA61,RA61,63,TA60..EUR198108-198507

main69057-14070iMA61..RHD..(ARL,GEN,SA)198308-198512

sub69057-14080

main69057-14080iMA61..LHD..(GEN,SAA)198308-198512

main69057-14110iMA61..EUR198308-198512

sub69057-14080

69068COVER SUB-ASSY, KEY

main69555-20010iAA63,MA61,RA6#,SA63,TA60198108-198512

69388SNAP, ROD(FOR DOOR LOCK)

main69759-24080iMA61,RA6#,TA60198108-198308

RH

main69759-24090iMA61,RA6#,TA60198108-198308

LH

main69759-30040iAA63,MA61,RA6#,SA63,TA60198308-198512

RH

main69759-30050iAA63,MA61,RA6#,SA63,TA60198308-198512

LH

69503CYLINDER SET, LOCK

main69005-14340-01iMA61..LHD..EUG198209-198308

GEN SPEC,BLACK,BLACK,TRIM2#

sub69005-14340

main69005-14340-01iMA61..SAA198208-198308

BLACK,BLACK,TRIM2#

sub69005-14340

main69005-14340-02iMA61..SAA198208-198308

TERRA COTTA,RED/MAROON,TRIM3#

sub69005-14340

main69005-14340-02iMA61..LHD..EUG198209-198308

GEN SPEC,TERRA COTTA,RED/MAROON,TRIM3#

sub69005-14340

main69005-14340-04iMA61..SAA198208-198308

BLUE,BLUE,TRIM8#

sub69005-14340

main69005-14340-04iMA61..LHD..EUG198209-198308

GEN SPEC,BLUE,BLUE,TRIM8#

sub69005-14340

main69005-14380iRA60,63,TA60..CP..(ARL,GEN,ME)198108-198308

main69005-14381iAA63,RA6#,SA63,TA60..CP..(ARL,GEN,SAA)198308-198507

main69005-14390-01iMA61..RHD..(ARL,GEN,SA)198308-198512

BLACK,BLACK,TRIM2#

sub69005-14390

main69005-14390-02iMA61..RHD..(ARL,GEN)198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

sub69005-14390

main69005-14390-04iMA61..RHD..(ARL,GEN,SA)198308-198512

BLUE,BLUE,TRIM8#

sub69005-14390

main69005-14390-06iMA61..SA198311-198512

DARK BROWN,DARK BROWN,TRIM4#

sub69005-14390

main69005-14400iRA61,63,TA60..CP..EUR198108-198308

main69005-14401iAA63,RA61,TA60..CP..EUR198308-198507

main69005-14410-01iMA61..EUR198308-198512

BLACK,BLACK,TRIM2#

sub69005-14410

main69005-14410-04iMA61..EUR198308-198512

BLUE,BLUE,TRIM8#

sub69005-14410

main69005-14410-06iMA61..EUR198308-198512

DARK BROWN,BROWN,TRIM4#

sub69005-14410

main69005-14420-01iRA60,63,TA60..LB..(ARL,GEN,ME)198108-198308

BLACK,BLACK,TRIM2#

sub69005-14420

main69005-14420-01iMA61..RHD198209-198308

GEN SPEC,BLACK,BLACK,TRIM2#

sub69005-14420

main69005-14420-02iMA61..RHD198209-198308

GEN SPEC,TERRA COTTA,RED/MAROON,TRIM3#

sub69005-14420

main69005-14420-04iMA61..RHD198209-198308

GEN SPEC,BLUE,BLUE,TRIM8#

sub69005-14420

main69005-14421iAA63,RA6#,SA63,TA60..LB..(ARL,GEN,SAA)198308-198507

main69005-14430-01iMA61..LHD..(GEN,SAA)198308-198408

BLACK,BLACK,TRIM2#

sub69005-14430

main69005-14430-02iMA61..LHD..(GEN,SAA)198308-198408

DEEP MAROON,RED/MAROON,TRIM3#

sub69005-14430

main69005-14430-04iMA61..LHD..(GEN,SAA)198308-198408

BLUE,BLUE,TRIM8#

sub69005-14430

main69005-14431-01iMA61..LHD..(GEN,SAA)198408-198512

BLACK,BLACK,TRIM2#

sub69005-14431

main69005-14431-02iMA61..LHD..(GEN,SAA)198408-198512

DEEP MAROON,DEEP MAROON,TRIM3#

sub69005-14431

main69005-14431-04iMA61..LHD..(GEN,SAA)198408-198512

BLUE,BLUE,TRIM8#

sub69005-14431

main69005-14440-01iMA61,RA61,63,TA60..LB..EUR198108-198308

BLACK,BLACK,TRIM2#

sub69005-14440

main69005-14440-04iMA61..EUG198112-198308

BLUE,BLUE,TRIM8#

sub69005-14440

main69005-14440-06iMA61..EUG198112-198308

DARK BROWN,BROWN,TRIM4#

sub69005-14440

main69005-14441iAA63,RA61,TA60..LB..EUR198308-198507

69503AKEY, BLANK

main90999-00066iAA63,RA6#,SA63,TA60..ARL,GEN,ME,SAA198108-198507

MASTER KEY,MASTER KEY

sub90999-00085

main90999-00068iAA63,RA6#,SA63,TA60..ARL,GEN,ME,SAA198108-198507

SUB KEY,SUB KEY

sub90999-00094

main90999-00074iMA61,RA61,63,TA60..EUR198108-198507

MASTER KEY

sub90999-00104

main90999-00075iMA61,RA61,63,TA60..EUR198108-198507

SUB KEY

sub90999-00094

main90999-00095iMA61198308-198512

MASTER KEY

main90999-00096iMA61198308-198512

SUB KEY

sub90999-00094

69513PAD, FUEL FILLER LID LOCK CYLINDER

main69513-14010iMA61,RA6#,TA60198108-198507

69561RETAINER, LUGGAGE COMPARTMENT OR BACK DOOR LOCK CYLINDER

main69561-14070iAA63,MA61,RA6#,SA63,TA60..LB198108-198512

main69561-14080iAA63,RA6#,SA63,TA60..CP198108-198507

69581RETAINER, FUEL FILLER LID CYLINDER

main69581-14010iMA61,RA6#,TA60198108-198507

69689PAD, LUGGAGE COMPARTMENT OR BACK DOOR LOCK CYLINDER

main69685-12010iAA63,MA61,RA6#,SA63,TA60198108-198512

9015940205

main90159-40205

9161140610

main91611-40610

16 parts on this diagram · 1 diagram in section
