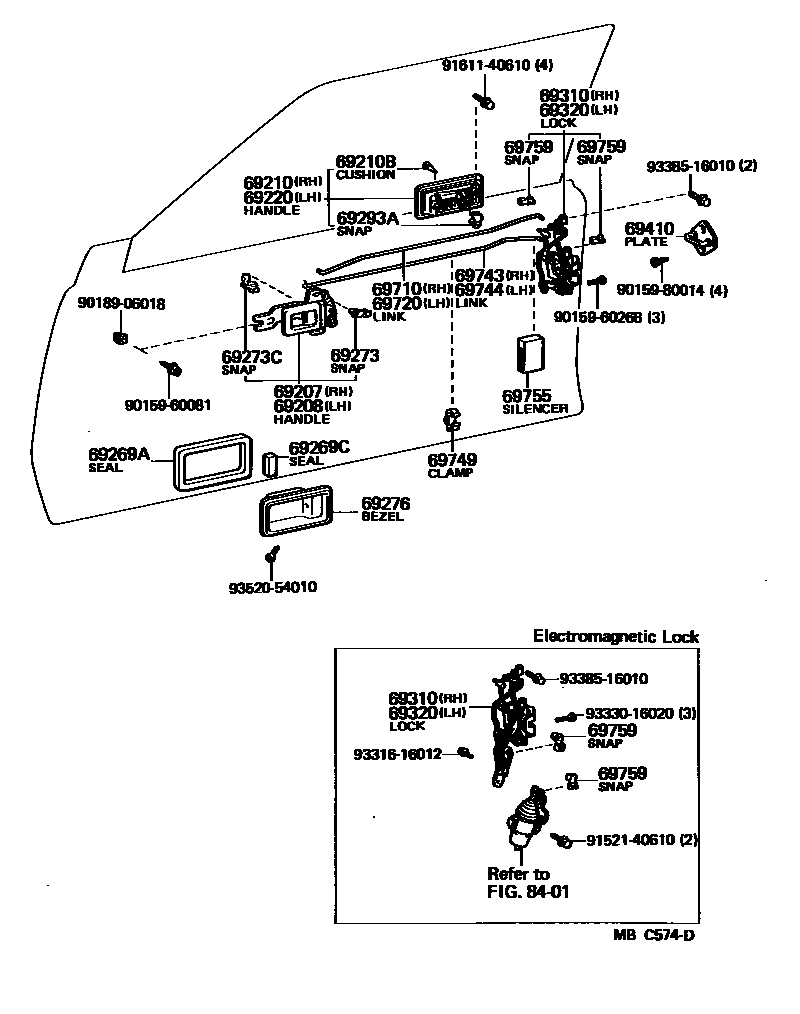

FRONT DOOR LOCK & HANDLE

69207HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-14050-01iRA6#,TA60198108-198108

BLACK,BLACK,TRIM2#

main69205-14050-04iRA6#,TA60198108-198108

BLUE,BLUE,TRIM8#

main69205-14050-06iRA6#,TA60198108-198108

DARK BROWN,BROWN,TRIM4#

main69205-14060-01iMA61,RA6#,TA60198108-198308

BLACK,BLACK,TRIM2#

sub69205-14060

main69205-14060-02iMA61..EUG198209-198308

GEN SPEC,TERRA COTTA,RED/MAROON,TRIM3#

sub69205-14060

main69205-14060-02iMA61..SAA198208-198308

TERRA COTTA,RED/MAROON,TRIM3#

sub69205-14060

main69205-14060-04iMA61,RA6#,TA60198108-198308

BLUE,BLUE,TRIM8#

sub69205-14060

main69205-14060-06iMA61,RA6#,TA60..ARL,EUR,GEN,ME198108-198308

DARK BROWN,BROWN,TRIM4#

sub69205-14060

main69205-14061-01iAA63,MA61,RA6#,SA63,TA60198308-198512

BLACK,BLACK,TRIM2#

main69205-14061-02iMA61..ARL,GEN,SAA198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

main69205-14061-04iAA63,MA61,RA6#,SA63,TA60198308-198512

BLUE,BLUE,TRIM8#

main69205-14061-06iMA61..EUR,SA198308-198512

DARK BROWN,BROWN,TRIM4#

69208HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-14050-01iRA6#,TA60198108-198108

BLACK,BLACK,TRIM2#

main69206-14050-04iRA6#,TA60198108-198108

BLUE,BLUE,TRIM8#

main69206-14050-06iRA6#,TA60198108-198108

DARK BROWN,BROWN,TRIM4#

main69206-14060-01iMA61,RA6#,TA60198108-198308

BLACK,BLACK,TRIM2#

sub69206-14060

main69206-14060-02iMA61..SAA198208-198308

TERRA COTTA,RED/MAROON,TRIM3#

sub69206-14060

main69206-14060-02iMA61..EUG198209-198308

GEN SPEC,TERRA COTTA,RED/MAROON,TRIM3#

sub69206-14060

main69206-14060-04iMA61,RA6#,TA60198108-198308

BLUE,BLUE,TRIM8#

sub69206-14060

main69206-14060-06iMA61,RA6#,TA60..ARL,EUR,GEN,ME198108-198308

DARK BROWN,BROWN,TRIM4#

sub69206-14060

main69206-14061-01iAA63,MA61,RA6#,SA63,TA60198308-198512

BLACK,BLACK,TRIM2#

main69206-14061-02iMA61..ARL,GEN,SAA198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

main69206-14061-04iAA63,MA61,RA6#,SA63,TA60198308-198512

BLUE,BLUE,TRIM8#

main69206-14061-06iAA63,RA6#,SA63,TA60198308-198512

DARK BROWN,BROWN,TRIM4#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-14070iMA61,RA6#,TA60198108-198308

main69210-14080iAA63,MA61,RA6#,SA63,TA60198308-198512

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main90541-03021iAA63,MA61,RA6#,SA63,TA60198108-198512

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-14070iMA61,RA6#,TA60198108-198308

main69220-14080iAA63,MA61,RA6#,SA63,TA60198308-198512

69269ASEAL, DOOR INSIDE HANDLE NO.1(FOR FRONT DOOR)

main69269-14010iMA61,RA61,63,TA60..EUR198108-198308

main69269-14020iAA63,MA61,RA61,TA60..EUR198308-198512

69269CSEAL, DOOR INSIDE HANDLE NO.2(FOR FRONT DOOR)

main69289-12010iAA63,MA61,RA61,63,TA60..EUR198108-198512

69273SNAP, DOOR INSIDE HANDLE ROD

main69759-14050iMA61,RA6#,TA60198108-198308

LH

main69759-20020iAA63,MA61,RA6#,SA63,TA60198308-198512

RH

main69759-20030iAA63,MA61,RA6#,SA63,TA60198308-198512

LH

main69759-24070iMA61,RA6#,TA60198108-198308

RH

69273CSNAP, DOOR INSIDE HANDLE LINK

main69759-20060iAA63,MA61,RA6#,SA63,TA60198308-198512

LH

main69759-20070iAA63,MA61,RA6#,SA63,TA60198308-198512

RH

main69759-24030iMA61,RA6#,TA60198108-198308

RH

main69759-24040iMA61,RA6#,TA60198108-198308

LH

69276BEZEL, FRONT DOOR INSIDE HANDLE

main69277-14020-01iRA6#,TA60198108-198108

BLACK,BLACK,TRIM2#

main69277-14020-04iRA6#,TA60198108-198108

BLUE,BLUE,TRIM8#

main69277-14020-06iRA6#,TA60198108-198108

DARK BROWN,BROWN,TRIM4#

main69277-14030-01iAA63,MA61,RA6#,SA63,TA60198108-198512

BLACK,BLACK,TRIM2#

sub69277-14030

main69277-14030-02iMA61..EUG198209-198308

GEN SPEC,TERRA COTTA,RED/MAROON,TRIM3#

sub69277-14030

main69277-14030-02iMA61..SAA198208-198308

TERRA COTTA,RED/MAROON,TRIM3#

sub69277-14030

main69277-14030-04iAA63,MA61,RA6#,SA63,TA60198108-198512

BLUE,BLUE,TRIM8#

sub69277-14030

main69277-14030-06iAA63,RA6#,SA63,TA60198108-198512

DARK BROWN,BROWN,TRIM4#

sub69277-14030

main69277-14030-22iMA61..ARL,GEN,SAA198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

sub69277-14030

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-12030iAA63,MA61,RA6#,SA63,TA60198308-198512

RH

main69293-12040iAA63,MA61,RA6#,SA63,TA60198308-198512

LH

main69293-16010iMA61,RA6#,TA60198108-198308

LH

main69293-16020iMA61,RA6#,TA60198108-198308

RH

69310LOCK ASSY, FRONT DOOR, RH

main69310-14182iMA61..RHD198408-198512

main69310-14210iRA6#,TA60198108-198108

main69310-14211iMA61,RA6#,TA60..ARL,EUR,GEN,ME198108-198308

main69310-14212iMA61..EUR,SA198308-198512

main69310-14241iMA61..SAA198208-198308

main69310-14241iMA61..LHD..EUG198209-198308

GENERAL COUNTRIES SPEC,*EL

main69310-14242iMA61..LHD198408-198512

*EL

main69310-14242iMA61..ARL,GEN,SAA198308-198408

69320LOCK ASSY, FRONT DOOR, LH

main69320-14152iMA61..RHD198408-198512

main69320-14180iRA6#,TA60198108-198108

main69320-14181iMA61,RA6#,TA60..ARL,EUR,GEN,ME198108-198308

main69320-14182iAA63,RA6#,SA63,TA60198308-198512

main69320-14211iMA61..SAA198208-198308

main69320-14211iMA61..LHD..EUG198209-198308

GENERAL COUNTRIES SPEC,*EL

main69320-14212iMA61..LHD198408-198512

W/*EL

main69320-14212iMA61..ARL,GEN,SAA198308-198408

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-12050iAA63,RA6#,SA63,TA60198308-198512

main69410-14040iMA61,RA6#,TA60..ARL,EUR,GEN,ME198108-198308

main69410-14050iMA61..SAA198208-198308

sub69410-20070

main69410-14050iMA61..LHD..EUG198209-198308

GENERAL COUNTRIES SPEC,*EL

sub69410-20070

main69410-87001iMA61..GEN,SAA198308-198512

69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH

main69711-14060iRA6#,TA60198108-198108

main69711-14061iMA61,RA6#,TA60198108-198308

main69711-14062iAA63,MA61,RA6#,SA63,TA60198308-198512

69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH

main69712-14060iRA6#,TA60198108-198108

main69712-14061iMA61,RA6#,TA60198108-198308

main69712-14062iAA63,MA61,RA6#,SA63,TA60198308-198512

69743LINK, FRONT DOOR LOCKING CONTROL, NO.1 RH

main69733-14040iMA61,RA6#,TA60198108-198308

main69733-14041iAA63,MA61,RA6#,SA63,TA60198308-198512

69744LINK, FRONT DOOR LOCKING CONTROL, NO.1 LH

main69734-14040iMA61,RA6#,TA60198108-198308

main69734-14041iAA63,MA61,RA6#,SA63,TA60198308-198512

69749CLAMP, FRONT DOOR LOCK LINK

main69749-12030iMA61,RA6#,TA60198108-198308

main69749-12040iAA63,MA61,RA6#,SA63,TA60198308-198512

69755SILENCER, FRONT DOOR LOCK LINK

main69759-14010iAA63,MA61,RA6#,SA63,TA60198108-198512

69759SNAP, DOOR LOCK CONTROL LINK, NO.1

main69759-20020iMA61..LHD198408-198512

LH,LOCKING LINK,W/*EL

main69759-20020iMA61..ARL,GEN,SAA198308-198408

LH,LOCKING LINK

main69759-20030iMA61..ARL,GEN,SAA198308-198408

RH,LOCKING LINK

main69759-20030iMA61..LHD198408-198512

RH,LOCKING LINK,W/*EL

main69759-20040iAA63,MA61,RA6#,SA63,TA60198308-198512

LH,OPEN LINK

main69759-20050iAA63,MA61,RA6#,SA63,TA60198308-198512

RH,OPEN LINK

main69759-20080iAA63,RA6#,SA63,TA60198308-198512

LH,LOCKING LINK

main69759-20090iMA61..EUR,SA198308-198512

RH,LOCKING LINK

main69759-20100iMA61..ARL,GEN,SAA198308-198408

RH,SOLENOID LINK

main69759-20100iMA61198408-198512

RH,SOLENOID LINK,W/*EL

main69759-20110iMA61198408-198512

LH,SOLENOID LINK,W/*EL

main69759-20110iMA61..ARL,GEN,SAA198308-198408

LH,SOLENOID LINK

main69759-24010iMA61..LHD..EUG198209-198308

RH,SOLENOID LINK,GEN SPEC

main69759-24010iMA61..SAA198208-198308

RH,SOLENOID LINK

main69759-24020iMA61..LHD..EUG198209-198308

LH,SOLENOID LINK,GEN SPEC

main69759-24020iMA61..SAA198208-198308

LH,SOLENOID LINK

main69759-24050iMA61,RA6#,TA60198108-198308

LH

main69759-24060iMA61,RA6#,TA60198108-198308

RH

8401

9015960081

main90159-60081

9015960268

main90159-60268

9015980014

main90159-80014

9018906018

main90189-06018

9152140610

main91521-40610

9161140610

main91611-40610

9331616012

main93316-16012

9333016020

main93330-16020

9338516010

main93385-16010

9352054010

main93520-54010

32 parts on this diagram · 1 diagram in section
