SIDE MEMBER

0001 1 0002 1 0003 1 0004 1

61103PILLAR SUB-ASSY, FRONT BODY, RH

main61021-14200iAA63,MA61,RA6#,SA63..RHD198108-198512

main61021-14210iRA60,61..ME,SAA198108-198507

main61021-14220iMA61..LHD..EUG198209-198308

GENERAL COUNTRIES SPEC

main61021-14220iMA61..LHD..(GEN,SAA)198208-198512

main61021-14230iAA63,MA61,RA60,61,63,TA60..LHD..(EUR,GEN)198108-198512

sub61021-14210

61104PILLAR SUB-ASSY, FRONT BODY, LH

main61022-14230iAA63,MA61,RA6#,SA63..RHD198108-198512

main61022-14240iRA60,61..ME,SAA198108-198507

main61022-14250iMA61..LHD..EUG198209-198308

GENERAL COUNTRIES SPEC

main61022-14250iMA61..LHD..(GEN,SAA)198208-198512

main61022-14260iAA63,MA61,RA60,61,63,TA60..LHD..(EUR,GEN)198108-198512

sub61022-14240

61105PILLAR SUB-ASSY, FRONT BODY LOWER OUTER, RH

main61025-14040iAA63,MA61,RA6#,SA63..RHD198108-198512

main61025-14050iAA63,MA61,RA60,61,63,TA60..LHD198108-198512

61106PILLAR SUB-ASSY, FRONT BODY LOWER OUTER, LH

main61026-14040iAA63,MA61,RA6#,SA63..RHD198108-198512

main61026-14050iAA63,MA61,RA60,61,63,TA60..LHD198108-198512

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-14170iAA63,MA61,RA6#,SA63,TA60198108-198512

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-14140iAA63,MA61,RA6#,SA63,TA60198108-198512

61211RAIL, ROOF SIDE, OUTER RH

main61211-14901iAA63,MA61,RA6#,SA63,TA60..LB198108-198512

main61211-14902iAA63,RA6#,SA63,TA60..CP198108-198507

61212RAIL, ROOF SIDE, OUTER LH

main61212-14901iAA63,MA61,RA6#,SA63,TA60..LB198108-198512

main61212-14902iAA63,RA6#,SA63,TA60..CP198108-198507

61231RAIL, ROOF SIDE, INNER RH

main61231-14130iAA63,MA61,RA6#,SA63,TA60198108-198512

sub61231-14150

main61231-14150iRA6#,TA60..ARL,EUR,GEN198108-198512

W/SUN ROOF

61232RAIL, ROOF SIDE, INNER LH

main61232-14130iAA63,MA61,RA6#,SA63,TA60198108-198512

sub61232-14150

main61232-14150iRA6#,TA60..ARL,EUR,GEN198108-198512

W/SUN ROOF

61281BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.1

main61281-14030iRA6#,TA60..ARL,EUR,GEN198108-198512

61283BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 RH

main61283-14030iRA6#,TA60..ARL,EUR,GEN198108-198512

61284BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 LH

main61284-14030iRA6#,TA60..ARL,EUR,GEN198108-198512

61341PILLAR, CENTER BODY, INNER LOWER RH

main61345-14010iAA63,MA61,RA6#,SA63,TA60198108-198512

61342PILLAR, CENTER BODY, INNER LOWER LH

main61346-14010iAA63,MA61,RA6#,SA63,TA60198108-198512

61367REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER

main61367-24010iAA63,MA61,RA6#,SA63,TA60198108-198512

61411PANEL, ROCKER, OUTER RH

main61401-14050iAA63,MA61,RA6#,SA63,TA60198108-198512

61412PANEL, ROCKER, OUTER LH

main61402-14050iAA63,MA61,RA6#,SA63,TA60198108-198512

61611PANEL, QUARTER, RH

main61601-14820iAA63,RA6#,SA63,TA60..CP198108-198507

main61601-14860iRA6#,TA60..CP..(ARL,EUR,GEN)198108-198507

W/LID OPENER

main61601-1B030iMA61..GEN,SAA198108-198512

W/LID OPENER

main61601-1B030iMA61..ARL,EUR,SA198308-198512

REAR LICENCE LAMP ON BUMPER

main61601-1B040iAA63,RA6#,SA63,TA60..LB198108-198507

main61601-1B040iMA61..SAA198208-198308

REAR LICENCE LAMP ON BUMPER

main61601-1B080iMA61..EUG198209-198308

GEN SPEC,W/ANTENA HOLE

main61601-1B080iMA61..SAA198208-198308

main61601-1B190iMA61..GEN198308-198512

W/LIP OPENER

sub61601-1B200

main61601-1B190iMA61..EUG198209-198308

GEN SPEC,W/LID OPENER

sub61601-1B200

main61601-1B210iMA61..EUG198209-198308

GEN,W/LID OPENER,ANTENA HOLE

main61601-1B210iMA61..GEN,SAA198208-198512

W/LID OPENER,ANTENA HOLE

main61601-1B220iMA61..GEN198308-198512

W/*OF

main61601-1B300iMA61..GEN198308-198512

W/*OF,RR LICENCE LAMP ONBUMPER

main61601-1B300iMA61..ARL,EUR,SA198308-198512

W/*OF

main61601-1B420iMA61..GEN,SAA198308-198512

W/*OF,ANTENNA HOLE

main61601-1B430iMA61..EUG198209-198308

REAR LICENCE LAMP ONBACK PANEL

sub61601-1B040

61612PANEL, QUARTER, LH

main61602-14730iAA63,RA6#,SA63,TA60..CP198108-198507

main61602-14780iMA61..GEN198208-198512

REAR LICENCE LAMP ON BUMPER

main61602-14780iMA61,RA6#,TA60..LB..(ARL,EUR,GEN,ME)198108-198507

main61602-14810iMA61..GEN198308-198512

W/*OF

main61602-14810iMA61..GEN198308-198512

W/*OF,RR LICENCELAMP ON BUMPER

main61602-14850iMA61..GEN,SAA198208-198512

W/*OF,RR LICENCELAMP ON BUMPER

main61602-14850iMA61..EUG198209-198308

REAR LICENCE LAMP ONBACK PANEL

main61602-14860iMA61..GEN,SAA198308-198512

W/*OF

61707PANEL SUB-ASSY, QUARTER, INNER RH

main61703-14900iAA63,MA61,RA6#,SA63,TA60..LB198108-198512

main61703-14901iAA63,RA60,61,63,TA60..CP198108-198507

main61703-14902iRA65,SA63..ST198308-198507

61708PANEL SUB-ASSY, QUARTER, INNER LH

main61704-14900iAA63,MA61,RA6#,SA63,TA60..LB198108-198512

main61704-14901iAA63,RA60,61,63,TA60..CP198108-198507

main61704-14902iRA65,SA63..ST198308-198507

61711PANEL, ROOF SIDE, OUTER RH

main61711-14060iAA63,RA6#,SA63,TA60..CP198108-198507

main61711-14080iAA63,MA61,RA6#,SA63,TA60..LB198108-198512

61712PANEL, ROOF SIDE, OUTER LH

main61712-14060iAA63,RA6#,SA63,TA60..CP198108-198507

main61712-14080iAA63,MA61,RA6#,SA63,TA60..LB198108-198512

61733CREINFORCEMENT, ROOF SIDE, INNER RH

main61737-14050iAA63,RA61,63,65,SA63..CP198108-198507

main61737-14060iAA63,MA61,RA6#,SA63,TA60..LB198108-198512

61734CREINFORCEMENT, ROOF SIDE, INNER LH

main61738-14050iAA63,RA61,63,65,SA63..CP198108-198507

main61738-14060iAA63,MA61,RA6#,SA63,TA60..LB198108-198512

61740AREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER REAR

main61768-14010iAA63,RA60,61,63,TA60..CP198108-198507

RH

main61768-14020iRA65,SA63..ST198308-198507

RH

main61769-14010iAA63,RA60,61,63,TA60..CP198108-198507

LH

main61769-14020iRA65,SA63..ST198308-198507

LH

61740BREINFORCEMENT, SEAT BELT ANCHOR TO ROOF SIDE, INNER

main61677-14020iAA63,MA61,RA6#,SA63,TA60198108-198512

LWR,RH

main61678-14020iAA63,MA61,RA6#,SA63,TA60198108-198512

LWR,LH

main61766-14060iAA63,MA61,RA6#,SA63,TA60198108-198512

UPR

61747BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH

main61747-14020iAA63,RA6#,SA63,TA60..CP198108-198507

main61747-14030iAA63,MA61,RA6#,SA63,TA60..LB198108-198512

61748CBRACE, ROOF SIDE INNER TO WHEEL HOUSE, LH

main61748-14030iAA63,RA6#,SA63,TA60..CP198108-198507

main61748-14040iAA63,MA61,RA6#,SA63,TA60..LB198108-198512

61792COVER, ROOF SIDE INNER SERVICE HOLE

main61791-14030iAA63,RA6#,SA63,TA60..CP198108-198507

RH

main61792-14030iAA63,RA6#,SA63,TA60..CP198108-198507

LH

61801PANEL, QUARTER INSIDE, REAR RH

main61617-14040iAA63,RA6#,SA63,TA60..CP198108-198507

main61617-14050iAA63,MA61,RA6#,SA63,TA60..LB198108-198512

61802PANEL, QUARTER INSIDE, REAR LH

main61618-14050iAA63,RA6#,SA63,TA60..CP198108-198507

main61618-14060iAA63,MA61,RA6#,SA63,TA60..LB198108-198512

64312BRACKET, PACKAGE TRAY, RH

main64312-14090iAA63,RA6#,SA63,TA60..CP198108-198507

64313BRACKET, PACKAGE TRAY, LH

main64313-14090iAA63,RA6#,SA63,TA60..CP198108-198507

7601

9018906006

main90189-06006

9095001056

main90950-01056

9095001248

main90950-01248

9095001266

main90950-01266

9095001322

main90950-01322

9163140612

main91631-40612

9354014012

main93540-14012

9354076020

main93540-76020

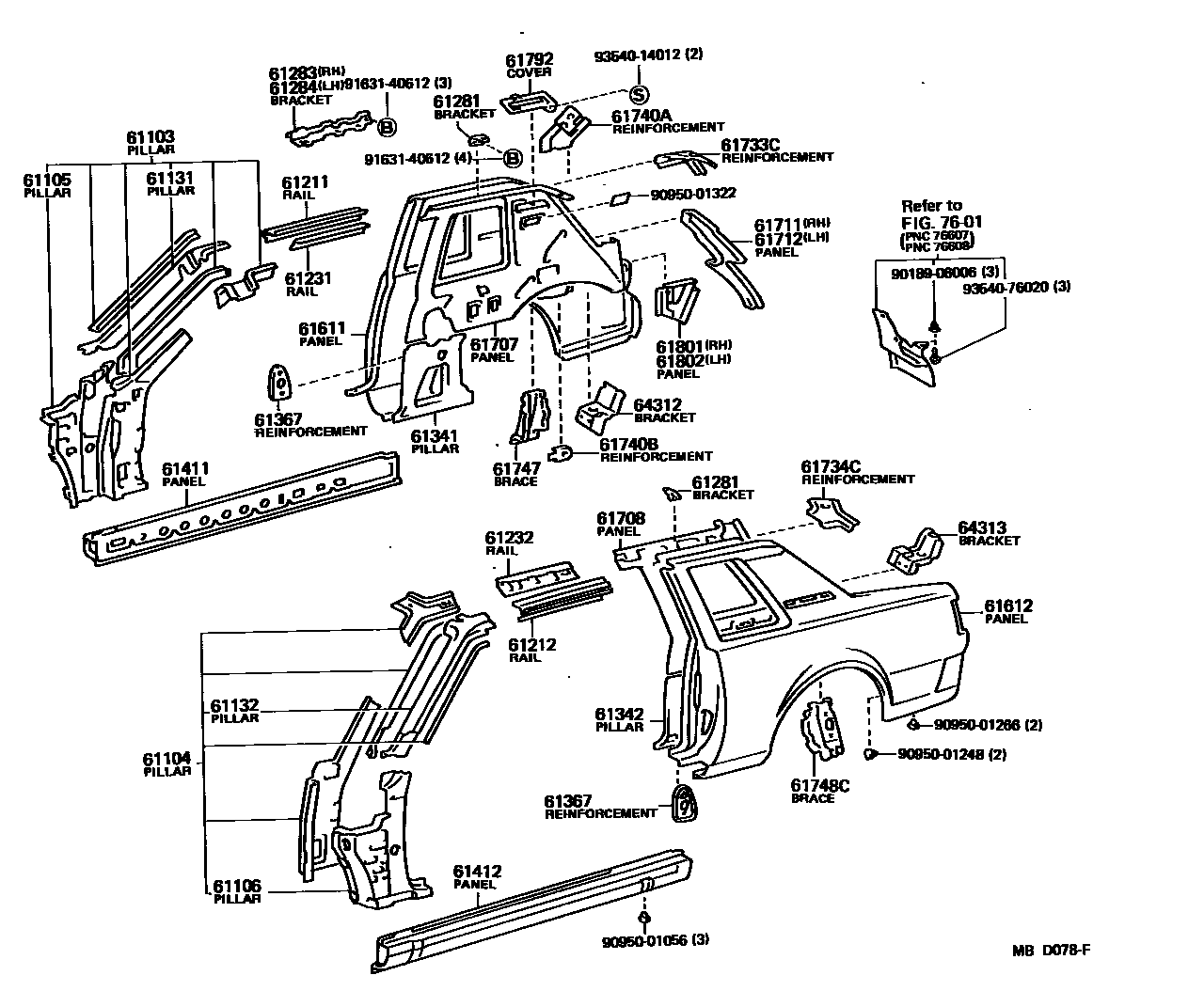

44 parts on this diagram · 4 diagrams in section
