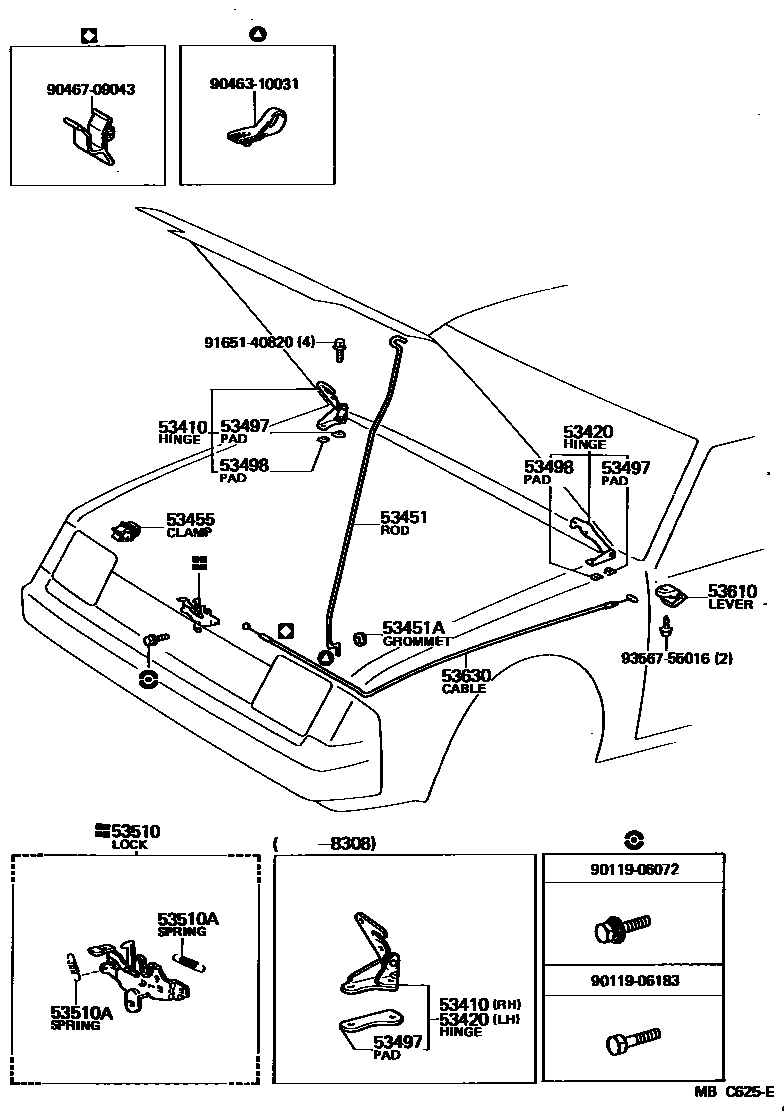

HOOD LOCK & HINGE
53410HINGE ASSY, HOOD, RH
sub53410-14071
53420HINGE ASSY, HOOD, LH
sub53420-14051
53451ROD, HOOD SUPPORT
53451AGROMMET(FOR HOOD SUPPORT ROD)
53455CLAMP, HOOD SUPPORT ROD
53497PAD, HOOD HINGE, NO.1
sub53497-14021
53498PAD, HOOD HINGE, NO.2
53510ASPRING, TENSION(FOR HOOD LOCK)
WD=0.9,CW=21.25,WD=0.9
WD=1.8
WD=2.0,CW=17,WD=2.0
53610LEVER ASSY, HOOD LOCK RELEASE
53630CABLE ASSY, HOOD LOCK CONTROL
9011906072
main90119-06072
9011906183
main90119-06183
9046310031
main90463-10031
9046709043
main90467-09043
9165140820
main91651-40820
9356755016
main93567-55016
17 parts on this diagram · 2 diagrams in section
