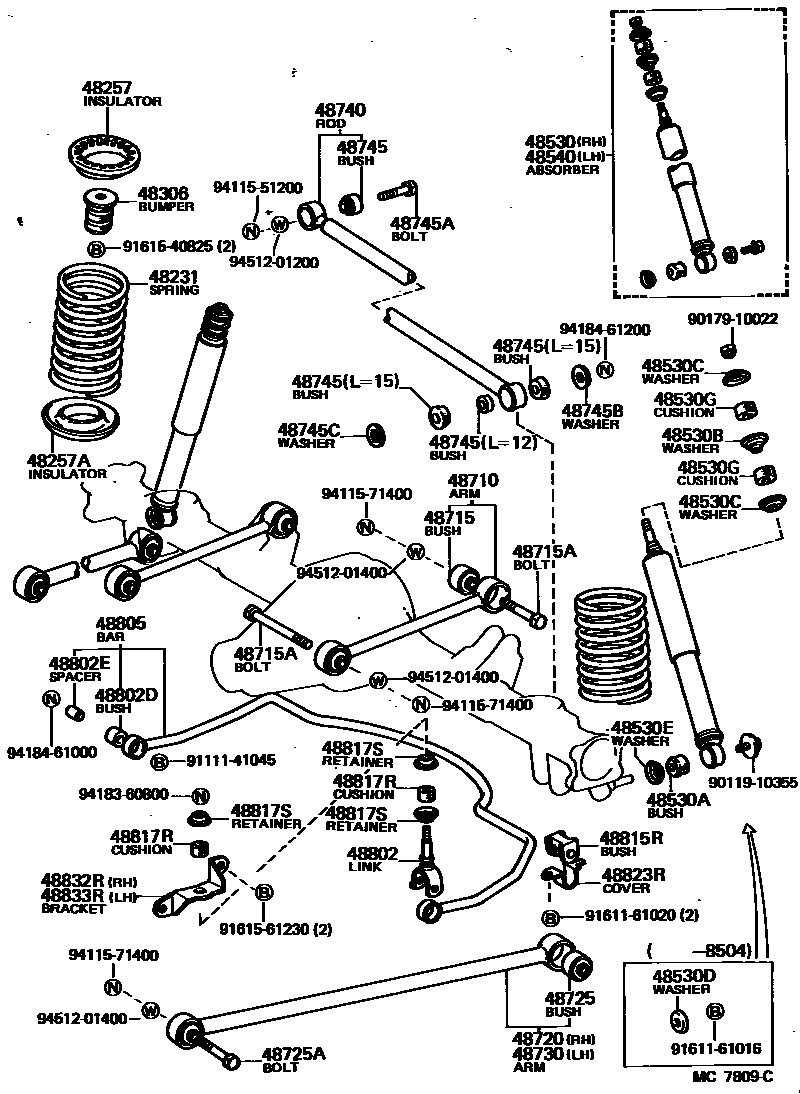

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1

48231SPRING, COIL, REAR

main48231-14410×2iRA61,63198204-198507

main48231-14500×2iRA60..CP198108-198308

main48231-14540×2iRA65,SA63..ST198308-198507

main48231-14570×2iRA60..LB198108-198308

main48231-14630×2iRA65,SA63..XT198308-198507

sub48231-14690

main48231-14650×2iAA63198308-198507

main48231-14660×2iMA61198112-198305

main48231-14670×2iMA61198305-198512

48257INSULATOR, REAR COIL SPRING

main48257-12020×2iRA60,TA60198207-198507

main48257-14020×2iRA60,TA60198108-198207

main48257-22030×2iAA63,MA61,RA61,63,65,SA63198108-198512

48257AINSULATOR, REAR COIL SPRING, LOWER

main48258-14030×2iRA60,TA60198108-198507

main48258-22040iMA61,RA61,63198108-198305

RH

main48258-22041iAA63,MA61,RA61,63,65,SA63198305-198512

RH

main48258-22050iAA63,MA61,RA61,63,65,SA63198108-198512

LH

48306BUMPER SUB-ASSY, REAR SPRING

main48306-14030×2iRA60,TA60198108-198507

main48341-22060×2iAA63,MA61,RA61,63,65,SA63198108-198507

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-19775iTA60198108-198507

sub48531-19776

main48531-19795iRA60198108-198308

sub48531-19796

main48531-19825iRA63198108-198204

sub48531-19826

main48531-19845iMA61..ARL,GEN,SA,SAA198308-198512

sub48531-19846

main48531-19885iMA61198112-198305

sub48531-19886

main48531-80002iAA63,RA61,63198204-198507

sub48531-80209

main48531-80035iMA61198305-198308

sub48531-80218

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-16001×2iAA63,MA61,RA6#,SA63,TA60198108-198512

LWR

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-02050×2iMA61,RA6#,TA60198108-198302

main90948-02075×2iAA63,MA61,RA61,63,65,SA63198302-198512

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90948-02002×2iRA60,TA60198108-198507

LWR

main90948-02045×2iRA60,TA60198108-198507

UPR

48530DWASHER, REAR SHOCK ABSORBER CUSHION, NO.3

main90948-03012×2iAA63,MA61,RA6#,SA63,TA60198108-198504

48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4

main90948-03004×2iAA63,MA61,RA6#,SA63,TA60198108-198512

48530GCUSHION, REAR SHOCK ABSORBER, NO.1

main90540-10002×2iRA60,TA60198108-198507

LWR,OD=30,ID=10

main90540-10005×2iRA60,TA60198108-198507

UPR,OD=30,ID=10&14

main90948-01003×2iAA63,MA61,RA61,63,65,SA63198108-198512

UPR

main90948-01019×2iAA63,MA61,RA61,63,65,SA63198108-198512

LWR

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-19775iTA60198108-198507

sub48531-19776

main48531-19795iRA60198108-198308

sub48531-19796

main48531-19825iRA63198108-198204

sub48531-19826

main48531-19845iAA63,RA65,SA63..ARL,GEN198308-198507

sub48531-19846

main48531-19885iMA61198112-198305

sub48531-19886

main48531-80002iRA61,63;AA63..EUG198204-198507

sub48531-80209

main48531-80035iMA61198305-198308

sub48531-80218

48710ARM ASSY, UPPER CONTROL

main48710-14040×2iRA60198108-198308

main48710-14060×2iTA60198108-198507

48715BUSH, UPPER CONTROL ARM

main48702-14010×4iTA60198108-198507

main48702-22060×4iRA60198108-198308

sub48702-28050

48715ABOLT, HEXAGON(FOR UPPER CONTROL ARM)

main90105-14006×2iRA60,TA60198108-198507

L=77

main90105-14009×2iRA60,TA60198108-198507

L=141

48720ARM ASSY, LOWER CONTROL, RH

main48720-14040iRA60,TA60198108-198507

48725BUSH, LOWER CONTROL ARM

main48702-14020×4iRA60,TA60198108-198507

main48725-22030×2iAA63,MA61,RA61,63,65,SA63198108-198512

OUTER

main48725-22040×2iAA63,MA61,RA61,63,65,SA63198108-198512

INNER

48725ABOLT(FOR LOWER CONTROL ARM)

main90105-14006×4iRA60,TA60198108-198507

48730ARM ASSY, LOWER CONTROL, LH

main48720-14040iRA60,TA60198108-198507

48740ROD ASSY, REAR LATERAL CONTROL

main48740-20030iRA60,TA60198108-198507

48745BUSH, LATERAL CONTROL ROD

main48706-14010iRA60,TA60198108-198507

BODY SIDE

main90385-20001×2iRA60,TA60198108-198507

L=15,HOUSING SIDE

main90386-20001iRA60,TA60198108-198507

L=12,HOUSING SIDE

48745ABOLT, HEXAGON(FOR LATERAL CONTROL ROD)

main90106-12002iRA60,TA60198108-198507

48745BWASHER, LATERAL CONTROL ROD CUSHION

main90201-12010iRA60,TA60198108-198507

48745CWASHER, LATERAL CONTROL ROD CUSHION

main94612-12000iRA60,TA60198108-198507

48802LINK SUB-ASSY, STABILIZER

main48802-14030×2iAA63,MA61,RA61,63,65,SA63198108-198512

main48802-14040×2iRA60,TA60198108-198507

48802DBUSH, STABILIZER LINK

main90385-11021×2iAA63,MA61,RA6#,SA63,TA60198108-198512

48802ESPACER(FOR REAR STABILIZER BAR)

main90560-10275×2iAA63,MA61,RA6#,SA63,TA60198108-198512

48805BAR SUB-ASSY, REAR STABILIZER

main48805-14100iTA60198108-198507

main48805-14110iRA60198108-198308

main48805-14140iMA61198112-198305

main48805-14150iSA63198308-198408

W/PS

main48805-14170iMA61198305-198512

48815RBUSH, STABILIZER(FOR REAR)

main48815-14030×2iMA61198305-198512

main48815-14050×2iRA61198108-198204

main48815-14060×2iMA61198112-198305

48817RCUSHION, STABILIZER(FOR REAR)

main48817-12010×4iAA63,MA61,RA6#,SA63,TA60198108-198512

48817SRETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR)

main90948-02024×4iAA63,MA61,RA6#,SA63,TA60198108-198512

T=1.2

main90948-02025×2iAA63,MA61,RA6#,SA63,TA60198108-198512

T=1.0

48823RCOVER, STABILIZER LINK(FOR REAR)

main48832-14020×2iAA63,MA61,RA61,63,65,SA63198108-198512

main48832-22020×2iRA60,TA60198108-198507

48832RBRACKET, REAR STABILIZER BAR, NO.1 RH

main48832-14030iRA60,TA60198108-198507

48833RBRACKET, REAR STABILIZER BAR, NO.1 LH

main48833-14020iRA60,TA60198108-198507

9011910355

main90119-10355

9017910022

main90179-10022

9111141045

main91111-41045

9161161016

main91611-61016

9161161020

main91611-61020

9161540825

main91615-40825

9161561230

main91615-61230

9411551200

main94115-51200

9411571400

main94115-71400

9418360800

main94183-60800

9418461000

main94184-61000

9418461200

main94184-61200

9451201200

main94512-01200

9451201400

main94512-01400

48 parts on this diagram · 2 diagrams in section
