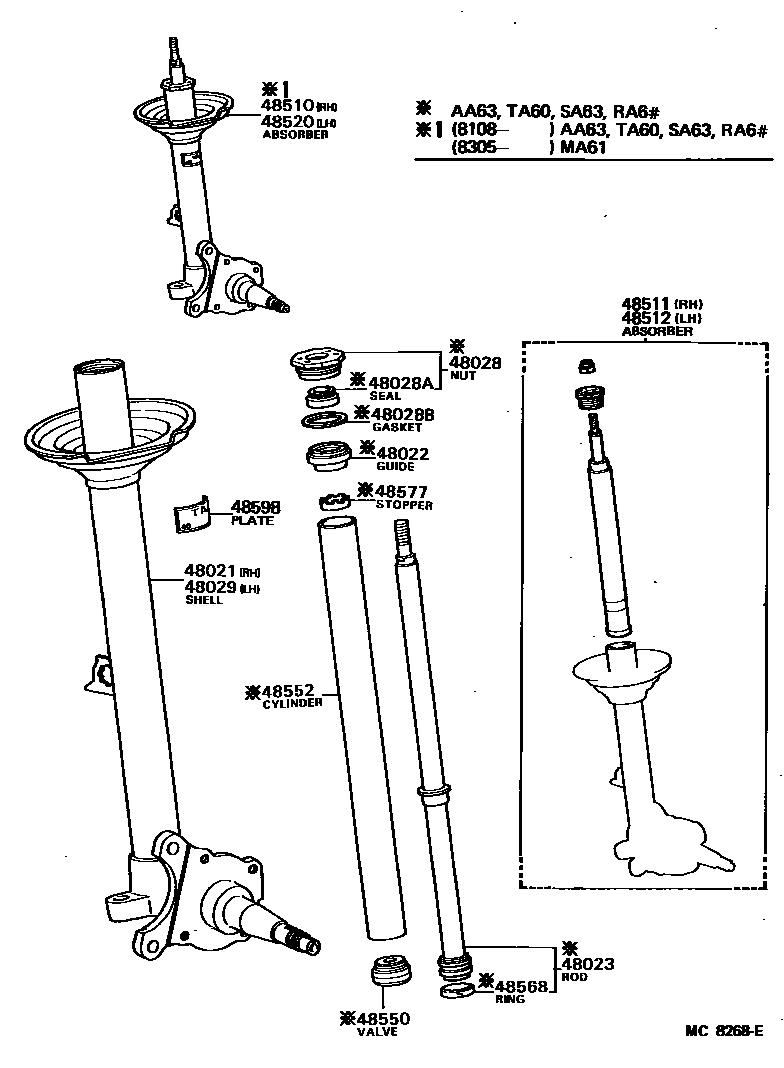

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1

48021SHELL SUB-ASSY, W/STEERING KNUCKLE, RH

main48021-14060iTA60198108-198507

main48021-14070iAA63,RA6#,SA63198108-198507

main48021-14080iMA61198305-198308

main48021-14081iMA61..EUR198308-198408

sub48021-14082

main48021-14082iMA61..EUR198408-198512

main48021-14090iMA61..ARL,GEN,SA,SAA198408-198512

main48021-24010iMA61198112-198408

sub48021-24011

48022GUIDE SUB-ASSY, SHOCK ABSORBER ROD

main48022-14010iAA63,RA6#,SA63,TA60198108-198507

sub48022-22040

sub90430-42001

48023ROD SUB-ASSY, SHOCK ABSORBER PISTON (FOR FRONT)

main48023-14100iTA60198108-198507

main48023-14130iRA60,61198108-198507

main48023-14140iRA63198108-198204

main48023-20090iAA63,RA65,SA63198308-198507

48028NUT SUB-ASSY, SHOCK ABSORBER RING

main48028-14011iAA63,RA6#,SA63,TA60198108-198507

sub48028-14012

main48555-14020iMA61198112-198305

48028ASEAL, OIL(FOR SHOCK ABSORBER RING NUT)

main90316-22001iAA63,RA6#,SA63,TA60198108-198507

48028BGASKET(FOR SHOCK ABSORBER RING NUT)

main90430-43206iAA63,RA6#,SA63,TA60198108-198507

48029SHELL SUB-ASSY, W/STEERING KNUCKLE, LH

main48029-14010iTA60198108-198507

main48029-14020iAA63,RA6#,SA63198108-198507

main48029-14030iMA61198305-198308

main48029-14031iMA61..EUR198308-198408

sub48029-14032

main48029-14032iMA61..EUR198408-198512

main48029-14040iMA61..ARL,GEN,SA,SAA198408-198512

main48029-24010iMA61..ARL,GEN,SA,SAA198112-198408

sub48029-24011

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-14160iTA60198108-198507

sub48510-14161

main48510-14190iRA60,61198108-198507

sub48510-14191

main48510-14200iRA63198108-198204

main48510-14240iMA61198305-198308

sub48510-14242

main48510-14241iMA61..EUR198308-198408

sub48510-14242

main48510-14242iMA61..EUR198408-198512

main48510-14250iMA61..ARL,GEN,SA,SAA198308-198408

sub48510-14251

main48510-14260iMA61..ARL,GEN,SA,SAA198408-198512

sub48510-14261

main48510-20140iAA63,RA65,SA63198308-198507

48511ABSORBER, SHOCK FRONT, RH(FOR CARTRIDGE TYPE)

main48511-14150iTA60198108-198507

main48511-14160iRA60,61,63198108-198507

main48511-14170iRA63198108-198204

main48511-19045iMA61198112-198305

main48511-19055iMA61198305-198308

main48511-19056iMA61..EUR198308-198408

main48511-19065iMA61..ARL,GEN,SA,SAA198308-198408

main48511-19066iMA61..ARL,GEN,SA,SAA198408-198512

main48511-20120iAA63,RA65,SA63198308-198507

48512ABSORBER, SHOCK FRONT, LH(FOR CARTRIDGE TYPE)

main48511-14150iTA60198108-198507

main48511-14160iRA60,61198108-198507

main48511-14170iRA63198108-198204

main48511-19045iMA61198112-198305

main48511-19055iMA61198305-198308

main48511-19056iMA61..EUR198308-198408

main48511-19065iMA61..ARL,GEN,SA,SAA198308-198408

main48511-19066iMA61..ARL,GEN,SA,SAA198408-198512

main48511-20120iAA63,RA65,SA63198308-198507

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-14020iTA60198108-198507

sub48520-14021

main48520-14050iRA60,61,63198108-198507

sub48520-14051

main48520-14060iRA63198108-198204

main48520-14100iMA61198305-198308

sub48520-14102

main48520-14101iMA61..EUR198308-198408

sub48520-14102

main48520-14102iMA61..EUR198408-198512

main48520-14110iMA61..ARL,GEN,SA,SAA198308-198408

sub48520-14111

main48520-14120iMA61..ARL,GEN,SA,SAA198408-198512

sub48520-14121

main48520-20140iAA63,RA65,SA63198308-198507

sub48520-14051

48550VALVE ASSY, SHOCK ABSORBER BASE

main48550-14060iRA60,61,63,TA60198108-198507

main48550-24010iRA63198108-198507

48552CYLINDER, SHOCK ABSORBER(FOR FRONT)

main48552-14010iTA60198108-198507

main48552-14021iAA63,RA6#,SA63198108-198507

48568RING, SHOCK ABSORBER PISTON

main48568-22020iRA6#,TA60198108-198307

main48568-22021iAA63,RA6#,SA63,TA60198307-198507

48577STOPPER, SHOCK ABSORBER REBOUND

main48579-14011iAA63,RA6#,SA63,TA60198108-198507

48598PLATE, ABSORBER NAME

main48598-14290iTA60198109-198409

RH

main48598-14300iTA60198109-198409

LH

main48598-14310iRA60,61,63198109-198409

RH

main48598-14320iRA60,61,63198109-198409

LH

main48598-14330iRA63198109-198204

RH

main48598-14340iRA63198109-198204

LH

main48598-20010iAA63,RA65,SA63198308-198409

RH

main48598-20020iAA63,RA65,SA63198308-198409

LH

16 parts on this diagram · 2 diagrams in section
