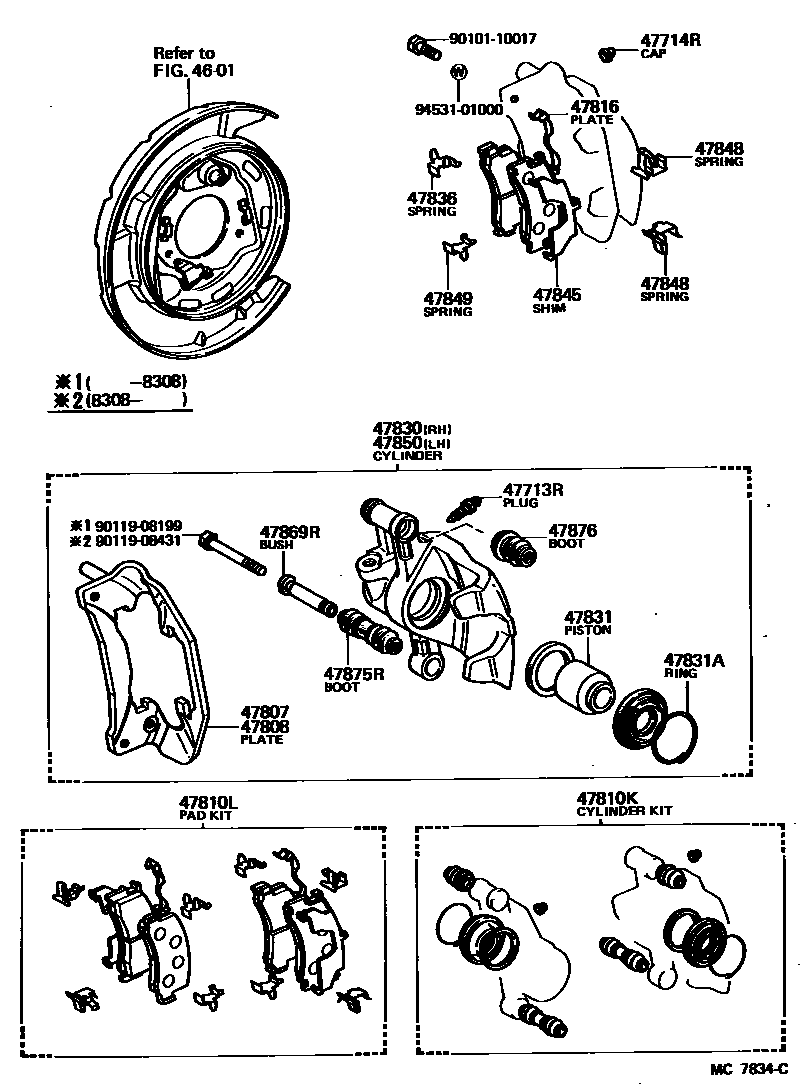

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

4601

47713RPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010iAA63,MA61,RA63..GT,SPR198108-198512

47714RCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iAA63,MA61,RA63..GT,SPR198108-198512

47807PLATE SUB-ASSY, DISC BRAKE TORQUE, RH

main47707-14020iAA63,MA61,RA63..GT,SPR198108-198512

47808PLATE SUB-ASSY, DISC BRAKE TORQUE, LH

main47708-14020iAA63,MA61,RA63..GT,SPR198108-198512

47810KCYLINDER KIT, DISC BRAKE, REAR

main04479-14090iAA63,MA61,RA63..GT,SPR198108-198512

47810LPAD KIT, DISC BRAKE, REAR

main04492-14070iAA63,MA61,RA63..GT,SPR198108-198512

sub04492-14071

47816PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)

main47716-14090iAA63,MA61,RA63..GT,SPR198108-198512

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47730-14150iAA63,MA61,RA63..GT,SPR198108-198512

47831PISTON, REAR DISC BRAKE

main47731-14100iAA63,MA61,RA63..GT,SPR198108-198512

47831ARING, SET(FOR REAR DISC BRAKE PISTON)

main90522-49001iAA63,MA61,RA63..GT,SPR198108-198512

47836PLATE, DISC BRAKE PAD GUIDE

main47736-14020iAA63,MA61,RA63..GT,SPR198108-198512

47845SHIM, ANTISQUEAL, NO.2(FOR REAR DISC BRAKE)

main47744-14060iAA63,MA61,RA63..GT,SPR198108-198512

47848SPRING, ANTI-RATTLE, NO.1(FOR REAR DISC BRAKE)

main47743-14040iAA63,MA61,RA63..GT,SPR198108-198512

UPR

main47748-14050iAA63,MA61,RA63..GT,SPR198108-198512

LWR

47849SPRING, ANTI-RATTLE, NO.2(FOR REAR DISC BRAKE)

main47717-14040iAA63,MA61,RA63..GT,SPR198108-198512

RH

main47718-14080iAA63,MA61,RA63..GT,SPR198108-198512

LH

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47750-14160iAA63,MA61,RA63..GT,SPR198108-198512

47869RBUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-14010iMA61,RA63198108-198308

sub47769-28H00

sub47769-28H01

main47769-28010iAA63,MA61..GT,SPR198308-198512

47875RBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47775-14010iAA63,MA61,RA63..GT,SPR198108-198512

47876BOOT, MAIN PIN(FOR REAR DISC BRAKE)

main47776-14010iAA63,MA61,RA63..GT,SPR198108-198512

9010110017

main90101-10017

9011908199

main90119-08199

9011908431

main90119-08431

9453101000

main94531-01000

23 parts on this diagram · 2 diagrams in section
