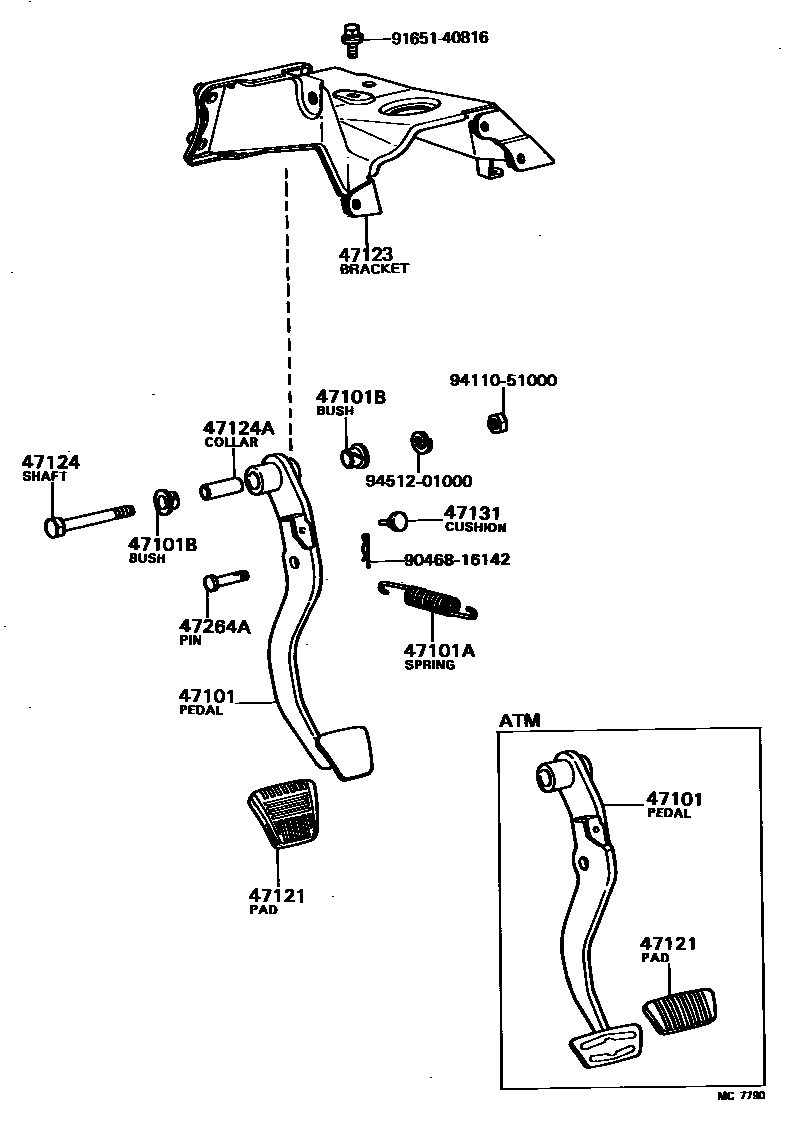

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101PEDAL SUB-ASSY, BRAKE

main47101-14100iAA63,MA61,RA60,61,63,TA60..LHD..5F198108-198512

main47101-14110iRA60,61,TA60..LHD..ATM198108-198507

main47101-24010iAA63,MA61,RA6#,SA63..RHD..5F198108-198512

main47101-24020iRA60,61,65,SA63..RHD..4FC198108-198507

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-12011iAA63,MA61,RA6#,SA63,TA60198108-198512

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iMA61198512-198512

main90386-13192iAA63,MA61,RA6#,SA63,TA60198108-198512

47121PAD, BRAKE PEDAL

main31321-14010iMA61,RA6#,TA60..5F198108-198207

main31321-14020iAA63,MA61,RA6#,SA63,TA60..5F198207-198512

main47121-30050iMA61,RA60,61,65,SA63,TA60..ATM198108-198507

47123BRACKET, BRAKE PEDAL

main55106-14220iMA61,RA6#..RHD198108-198308

main55106-14250iMA61,RA6#,TA60..LHD198108-198308

sub55106-14251

main55106-14251iMA61,RA61,TA60..LHD198308-198512

main55106-14260iMA61,RA6#..RHD198308-198512

47124SHAFT, BRAKE PEDAL

main90101-10039iAA63,MA61,RA6#,SA63..RHD198108-198512

main90101-10043iAA63,MA61,RA60,61,63,TA60..LHD198108-198512

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10002iAA63,MA61,RA60,61,63,TA60..LHD198108-198512

main90387-10003iAA63,MA61,RA6#,SA63..RHD198108-198512

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06008iAA63,MA61,RA6#,SA63,TA60198108-198509

main90541-06032iMA61198509-198512

sub90541-06036

47264APIN(FOR PUSH ROD)

main90249-10064iAA63,MA61,RA6#,SA63,TA60198108-198512

9046816142

main90468-16142

9165140816

main91651-40816

9411051000

main94110-51000

9451201000

main94512-01000

13 parts on this diagram · 2 diagrams in section
