STEERING WHEEL

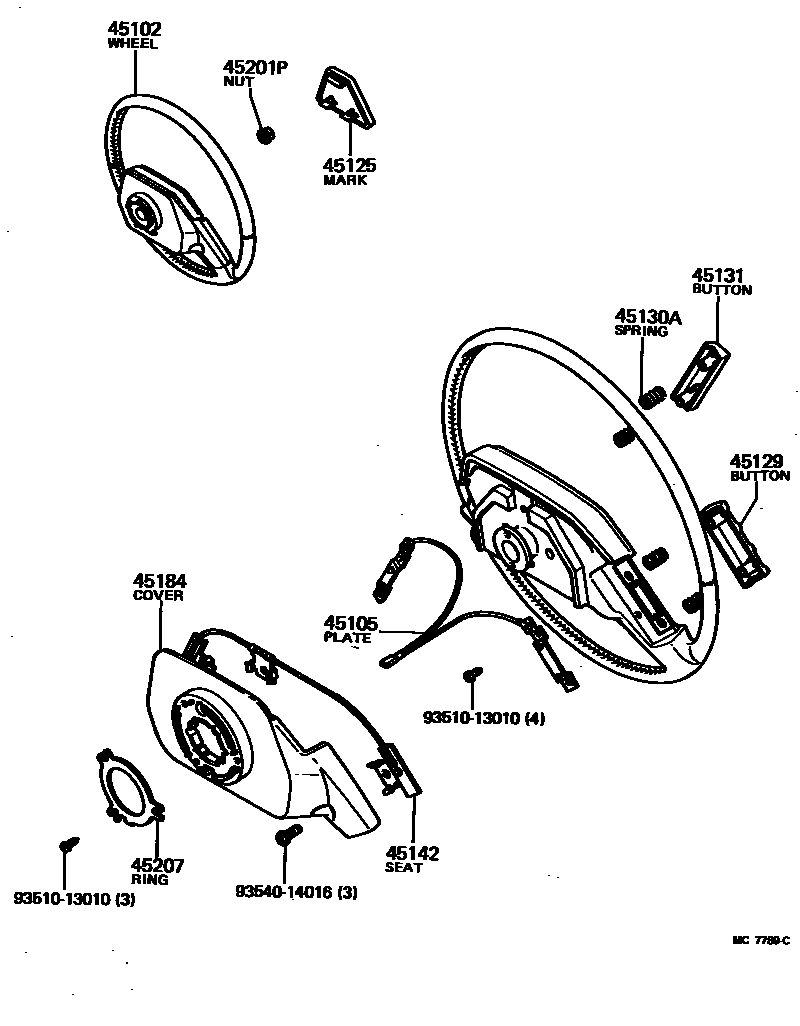

Parts diagram
45102WHEEL SUB-ASSY, STEERING
main45100-14280-01i198108-198308
BLACK,BLACK,TRIM2#
sub45100-14310
main45100-14280-04i198108-198308
BLUE,BLUE,TRIM8#
sub45100-14310
main45100-14280-06i198108-198308
DARK BROWN,BROWN,TRIM4#
sub45100-14310
main45100-14340-01i198308-198507
BLACK,BLACK,TRIM2#
sub45100-14340
main45100-14340-04i198308-198507
BLUE,BLUE,TRIM8#
sub45100-14340
main45100-14340-06i198308-198507
DARK BROWN,BROWN,TRIM4#
sub45100-14340
main45100-24010-01i198112-198512
BLACK,BLACK,TRIM2#
sub45100-24010
main45100-24010-02i198208-198308
TERRACOTTA,RED/MAROON,TRIM3#
sub45100-24010
main45100-24010-04i198112-198512
BLUE,BLUE,TRIM8#
sub45100-24010
main45100-24010-06i198112-198512
DARK BROWN,BROWN,TRIM4#
sub45100-24010
main45100-24010-12i198308-198512
DEEP MAROON,RED/MAROON,TRIM3#
sub45100-24010
45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
main45105-14040i198108-198308
main45105-14060i198308-198507
main45105-24010i198112-198512
45125MARK, STEERING WHEEL PAD
main45125-14280i198108-198308
main45125-14290i198108-198308
main45125-14370i198308-198507
45129BUTTON, HORN, NO.2
main45129-14030-01i198108-198308
BLACK,BLACK,TRIM2#
sub45129-14030
main45129-14030-04i198108-198308
BLUE,BLUE,TRIM8#
sub45129-14030
main45129-14030-06i198108-198308
DARK BROWN,BROWN,TRIM4#
sub45129-14030
45130BUTTON ASSY, HORN
main45130-14130-01i198112-198512
BLACK,BLACK,TRIM2#
sub45130-14130
main45130-14130-02i198208-198308
TERRACOTTA,RED/MAROON,TRIM3#
sub45130-14130
main45130-14130-04i198112-198512
BLUE,BLUE,TRIM8#
sub45130-14130
main45130-14130-06i198112-198512
DARK BROWN,BROWN,TRIM4#
sub45130-14130
main45130-14130-12i198308-198512
DEEP MAROON,RED/MAROON,TRIM3#
sub45130-14130
main45130-14150-01i198308-198507
BLACK,BLACK,TRIM2#
sub45130-14150
main45130-14150-04i198308-198507
BLUE,BLUE,TRIM8#
sub45130-14150
main45130-14150-06i198308-198507
DARK BROWN,BROWN,TRIM4#
sub45130-14150
45130ASPRING, COMPRESSION(FOR HORN BUTTON)
main90501-09023i198108-198308
main90501-10040i198112-198512
sub90501-10104
45131BUTTON, HORN, NO.1
main45131-14090-01i198108-198308
BLACK,BLACK,TRIM2#
sub45131-14090
main45131-14090-04i198108-198308
BLUE,BLUE,TRIM8#
sub45131-14090
main45131-14090-06i198108-198308
DARK BROWN,BROWN,TRIM4#
sub45131-14090
45142SEAT, HORN BUTTON CONTACT, NO.1
main45109-14010i198108-198308
main45142-24010i198112-198512
45184COVER, STEERING WHEEL BOSS, LOWER
main45184-14040-01i198108-198308
BLACK,BLACK,TRIM2#
sub45184-14040
main45184-14040-04i198108-198308
BLUE,BLUE,TRIM8#
sub45184-14040
main45184-14040-06i198108-198308
DARK BROWN,BROWN,TRIM4#
sub45184-14040
main45184-24010-01i198112-198512
BLACK,BLACK,TRIM2#
sub45184-24010
main45184-24010-02i198208-198308
TERRACOTTA,RED/MAROON,TRIM3#
sub45184-24010
main45184-24010-04i198112-198512
BLUE,BLUE,TRIM8#
sub45184-24010
main45184-24010-06i198112-198512
DARK BROWN,BROWN,TRIM4#
sub45184-24010
main45184-24010-12i198308-198512
DEEP MAROON,RED/MAROON,TRIM3#
sub45184-24010
45201PNUT, STEERING WHEEL SET
main90179-12086i198108-198512
45207RING, HORN CONTACT
main45176-14030i198108-198109
main45176-14050i198109-198308
main45176-20030i198112-198512
main45176-30070i198308-198507
9351013010
main93510-13010
9354014016
main93540-14016

13 parts on this diagram · 3 diagrams in section
