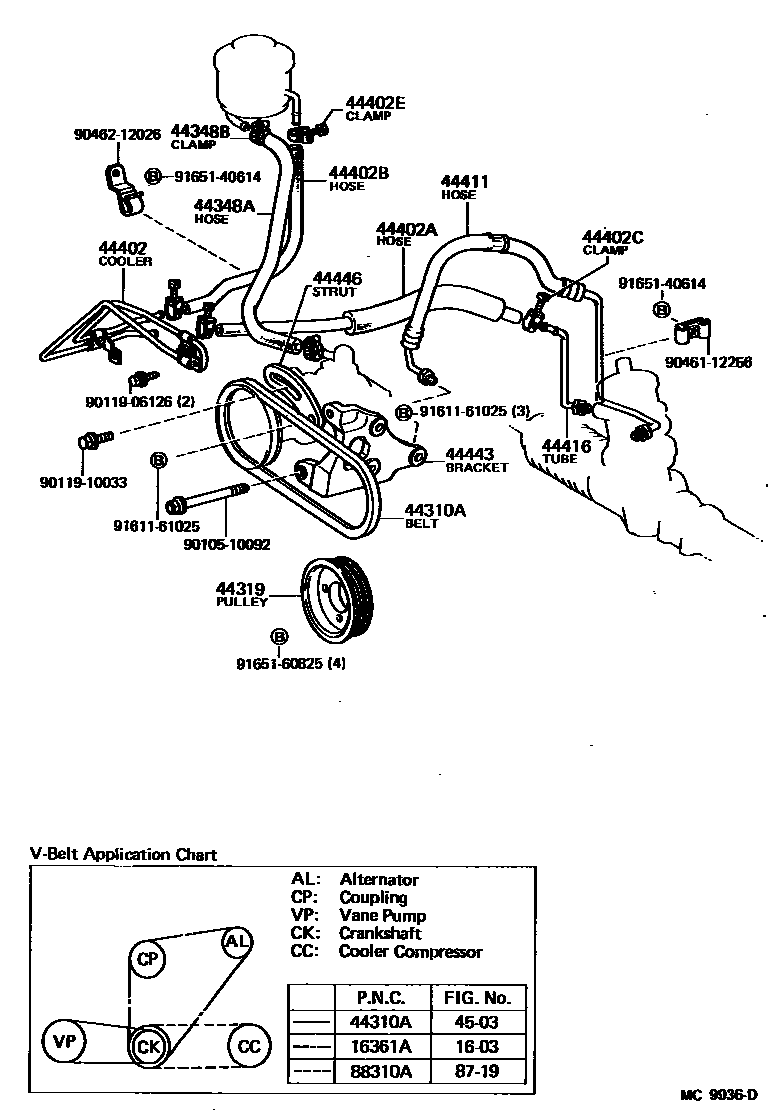

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

1603

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02076i5MGE..MA61198112-198308

main90916-02148i4AGE..AA63198504-198507

main99321-00885i2T#..TA60198108-198507

main99331-00870i21R#..RA61198408-198507

main99331-00880i21R#..RA60,61198108-198408

L=880

main99331-10870i22REC..RA65198408-198507

main99363-01150i2SC..SA63198308-198408

sub99363-31150

main99365-50830i4AGE..AA63198308-198504

sub99365-20830

main99367-00920i5M#..MA61198308-198512

44310ABELT, V(FOR VANE PUMP)

main90916-02107iMA61..TWC198112-198512

sub99322-01195

main99363-50760iSA63198308-198408

sub99363-80760

44319PULLEY, VANE PUMP DRIVE

main44319-14010iSA63198308-198408

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-14020iRA60,61,65198108-198507

main44348-14070iMA61..ARL198308-198512

main44348-14080iMA61..SDZ198308-198512

main44348-20070iSA63198308-198408

44348BCLAMP(FOR OIL RESERVOIR TO PUMP HOSE)

main90460-26001iMA61,RA60,61,65,SA63198108-198512

44402COOLER SUB-ASSY, POWER STEERING OIL, NO.1

main44402-14060iRA60,61198108-198308

main44402-14070iMA61198112-198512

main44402-14110iSA63198308-198408

main44402-14130iRA65198408-198507

main44402-14140iRA61198308-198507

44402AHOSE, POWER STEERING OIL COOLER INLET

main44412-14041iRA60,61198208-198408

main44412-14170iMA61..ARL198308-198512

main44412-20090iSA63198308-198408

44402BHOSE, POWER STEERING OIL COOLER OUTLET

main44412-14040iRA60,61198108-198208

sub44412-14041

main44412-14050iRA60,61198108-198507

main44412-14150iRA65198408-198507

main44412-14180iMA61..EFI198308-198512

main90445-18105iMA61..TWC198112-198512

main90445-18108iSA63198308-198408

44402CCLAMP, POWER STEERING OIL COOLER INLET HOSE

main90460-01001iMA61,RA60,61,65,SA63198108-198512

44402ECLAMP, POWER STEERING OIL COOLER OUTLET HOSE

main90460-01001iMA61,RA60,61,65,SA63198108-198512

44411HOSE, PRESSURE FEED

main44410-14050iRA60,61..LHD198108-198308

main44410-14051iRA61..LHD198308-198507

main44411-14160iMA61..ARL198308-198512

main44411-20131iSA63198308-198408

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-14100iMA61..LHD198108-198512

main44416-14110iRA60,61..LHD198108-198408

main44416-20121iSA63198308-198408

main44416-24010iMA61..RHD198112-198512

44443BRACKET, PUMP

main44443-14020iSA63198308-198408

main44443-20031iRA60,61198108-198408

main44443-24010iMA61..TWC198112-198512

main44443-35020iRA6#198408-198507

44446STRUT, ADJUSTING

main44446-14010iSA63198308-198408

main44446-24010iMA61..TWC198112-198512

4503

8719

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99322-00950iTA60198108-198507

sub99322-50950

main99332-10980iMA61..TWC198112-198512

9010510092

main90105-10092

9011906126

main90119-06126

9011910033

main90119-10033

9046112256

main90461-12256

9046212026

main90462-12026

9161161025

main91611-61025

9165140614

main91651-40614

9165160825

main91651-60825

26 parts on this diagram · 7 diagrams in section
