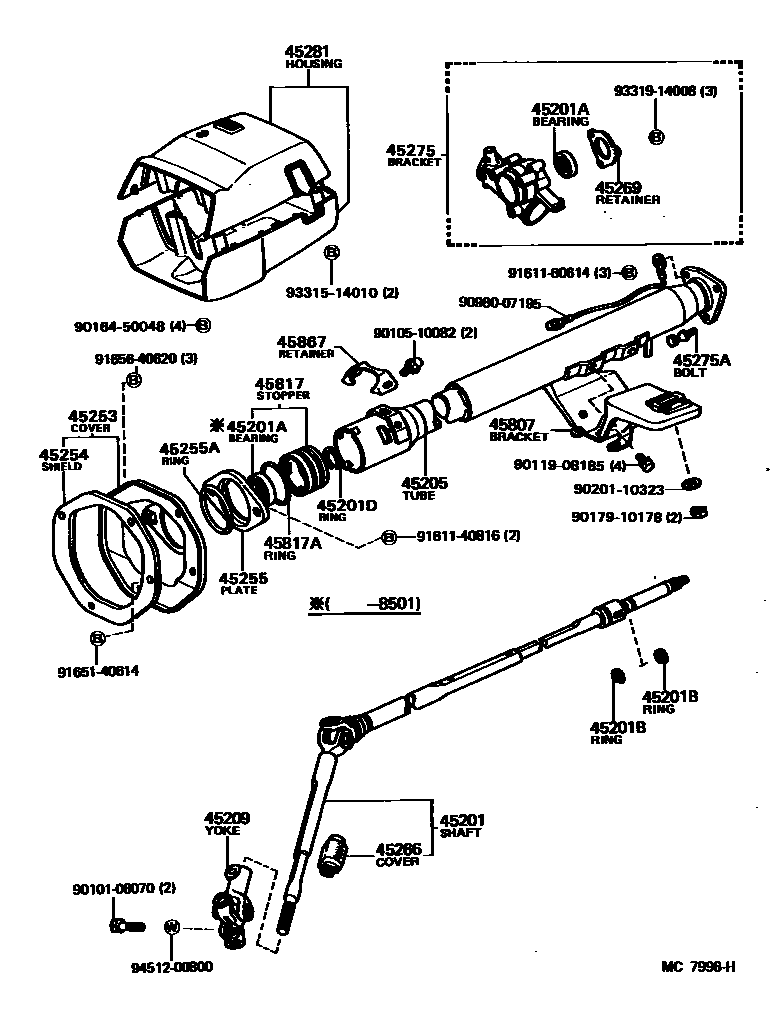

STEERING COLUMN & SHAFT

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1

45201SHAFT SUB-ASSY, STEERING MAIN

main45210-14010iRA61,63..RHD;RA60..RHD..(ST,XT)198108-198304

sub45210-14H00

main45210-14020iRA63..RHD;RA60..RHD..(ST,XT)198201-198308

sub45210-14H00

main45210-14040iRA60,61..RHD..(ST,XT)198108-198507

W/PS

main45210-14050iTA60198108-198308

sub45210-14H01

main45210-14051iTA60198308-198507

main45210-14060iRA6#..LHD198108-198308

sub45210-14H02

main45210-14061iAA63,RA61..LHD198308-198507

main45210-14070iRA60,61..LHD198108-198507

W/PS

main45210-14090iRA60..RHD..(ST,XT)198201-198507

W/PS

main45210-14130iRA65..ST198308-198507

main45210-14140iSA63..ST198308-198408

W/PS

main45210-22050iRA61..EUR,SAA;RA61..XT..GEN;AA63,MA61,RA60,63,65,SA63..GT,GTS,SPR,XT198108-198512

W/TILT STEERING,W/PS & TILT

main45210-22050iTA60..ST;TA60..LT..EUG198108-198507

W/TILT STEERING

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18001iTA60..ST;TA60..LT..EUG198108-198512

UPR,W/TILT STEERING

main90363-18038iRA60..ST,XT;RA65,SA63..ST;AA63,RA61,63,TA60198108-198507

UPR

main90363-28001iTA60..ST;TA60..LT..EUG198108-198512

CTR,W/TILT STEERING

main90363-30007iRA61..EUR,SAA;RA61..XT..GEN;AA63,MA61,RA60,63,65,SA63..GT,GTS,SPR,XT198108-198501

LWR,W/TILT STEERING

main90363-30007iRA60..ST,XT;RA65,SA63..ST;AA63,RA61,63,TA60198108-198501

LWR

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iAA63,MA61,RA6#,SA63,TA60198108-198512

T=1.20,T=1.2

main90520-17196iRA60..ST,XT;RA65,SA63..ST;AA63,RA61,63,TA60198108-198507

T=1.35-1.45,T=1.4

45201DRING(FOR STEERING MAIN SHAFT)

main96152-00300iAA63,MA61,RA6#,SA63,TA60198108-198512

45205TUBE SUB-ASSY, STEERING COLUMN

main45870-14100iRA60..ST,XT;RA65,SA63..ST;AA63,RA61,63,TA60198108-198507

main45870-14110iRA61..EUR,SAA;RA61..XT..GEN;AA63,RA60,63,65,SA63..GT,GTS,XT198108-198507

W/TILT STEERING

main45870-24020iMA61198112-198512

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-14010iRA6#,TA60198108-198308

sub45209-14060

sub45209-32010

main45209-14020iRA60,61,65,SA63198108-198507

W/PS

main45209-14060iRA61..LHD198308-198507

main45209-32010iRA61..RHD;AA63,RA65,SA63,TA60198308-198507

sub45209-10020

45253COVER, STEERING COLUMN HOLE

main45025-14100iAA63,RA6#,SA63..RHD198108-198507

main45025-14110iAA63,RA60,61,63,TA60..LHD198108-198507

main45025-14120iMA61..LHD198112-198512

main45025-24011iMA61..RHD198112-198512

45254SHIELD, STEERING COLUMN HOLE

main45254-24011iAA63,MA61,RA6#,SA63,TA60198108-198512

45255PLATE, STEERING COLUMN HOLE COVER

main45255-12030iAA63,MA61,RA6#,SA63,TA60198108-198512

45255AGROMMET OR RING, O(FOR STEERING COLUMN CLAMP)

main90301-59001iAA63,MA61,RA6#,SA63,TA60198201-198512

main90301-60122iMA61,RA6#,TA60198108-198201

45266COVER, STEERING INTERMEDIATE SHAFT DUST

main45266-12020iAA63,MA61,RA6#,SA63,TA60198108-198512

45269RETAINER, MAIN SHAFT BEARING

main45269-10010iRA6#,TA60..LHD198211-198507

main45269-20010iRA6#,TA60..LHD198108-198406

sub45269-35010

main45269-35010iSA63..ST;AA63,RA61,63..RHD;RA60..RHD..(ST,XT)198108-198406

45275BRACKET, STEERING COLUMN, UPPER

main45280-14010iRA6#,TA60..LHD198108-198211

sub45280-14011

main45280-14011iAA63,RA60,61,63,TA60..LHD198211-198507

main45280-14020iRA60..LHD..XT;MA61,RA61,63..LHD198108-198211

W/TILT STEERING

sub45280-14021

main45280-14021iRA60..LHD..XT;AA63,RA61,63..LHD;MA61..LHD..(EUR,SAA)198211-198512

W/TILT STEERING

sub45280-14041

main45280-14021iTA60..TCB198211-198507

sub45280-14041

main45280-24011iMA61,RA61,63..RHD;RA60..RHD..(GT,XT)198108-198308

W/TILT STEERING

sub45280-24012

main45280-24012iAA63,MA61,RA6#,SA63..RHD..(GT,SPR,XT)198308-198512

W/TILT STEERING

main45280-24030iRA61,63..RHD;RA60..RHD..(ST,XT)198108-198209

sub45280-24031

main45280-24031iRA65,SA63..ST;AA63,RA61,63..RHD;RA60..RHD..(ST,XT)198209-198507

45275ABOLT, HEXAGON(FOR STEERING COLUMN BRACKET)

main45897-12030iRA61..EUR,SAA;RA61..LHD..GEN;AA63,RA60,63,TA60..LHD198108-198507

main45897-14010iMA61,RA60,61..EUR,ME,SAA198108-198512

W/TILT STEERING

sub45897-12030

45281HOUSING, STEERING COLUMN

main45286-14922-01iMA61,RA61,63..RHD;RA60..RHD..(GT,XT)198108-198507

W/TILT STEERING,BLACK,BLACK,TRIM2#

sub45286-14922

main45286-14922-04iAA63,RA6#,SA63..RHD..(GT,XT)198108-198507

W/TILT STEERING,BLUE,BLUE,TRIM8#

sub45286-14922

main45286-14922-06iAA63,RA6#,SA63..RHD..(GT,XT)198108-198507

W/TILT STEERING,DARK BROWN,BROWN,TRIM4#

sub45286-14922

main45286-14923-01iRA6#,TA60..LHD198108-198304

BLACK,BLACK,TRIM2#

sub45286-14926

main45286-14923-04iRA6#,TA60..LHD198108-198304

BLUE,BLUE,TRIM8#

sub45286-14926

main45286-14923-06iRA6#,TA60..LHD198108-198304

DARK BROWN,BROWN,TRIM4#

sub45286-14926

main45286-14924-01iRA60..LHD..XT;MA61,RA61,63..LHD198108-198305

W/TILT STEERING,BLACK,BLACK,TRIM2#

sub45286-14925

main45286-14924-02iMA61..SAA198208-198305

W/TILT STEERING,TERRACOTTA,RED/MAROON,TRIM3#

sub45286-14925

main45286-14924-04iTA60..ST;TA60..LT..EUG198108-198305

W/TILT STEERING,BLUE,BLUE,TRIM8#

sub45286-14925

main45286-14924-06iRA60..LHD..XT;MA61,RA61,63..LHD..(EUR,GEN)198108-198305

W/TILT STEERING,DARK BROWN,BROWN,TRIM4#

sub45286-14925

main45286-14925-01iAA63,RA61,TA60..LHD198305-198507

W/TILT STEERING,BLACK,BLACK,TRIM2#

sub45286-14925

main45286-14925-02iMA61..SAA198305-198308

W/TILT STEERING,TERRACOTTA,RED/MAROON,TRIM3#

sub45286-14925

main45286-14925-04iTA60..ST;TA60..LT..EUG198305-198507

W/TILT STEERING,BLUE,BLUE,TRIM8#

sub45286-14925

main45286-14925-06iAA63,RA61,TA60..LHD198305-198507

W/TILT STEERING,DARK BROWN,BROWN,TRIM4#

sub45286-14925

main45286-14926-01iAA63,RA60,61,63,TA60..LHD198307-198507

BLACK,BLACK,TRIM2#

sub45286-14926

main45286-14926-04iAA63,RA60,61,63,TA60..LHD198307-198507

BLUE,BLUE,TRIM8#

sub45286-14926

main45286-14926-06iAA63,RA60,61,63,TA60..LHD198307-198507

DARK BROWN,BROWN,TRIM4#

sub45286-14926

main45286-14927-01iMA61..RHD198308-198512

BLACK,BLACK,TRIM2#

sub45286-14927

main45286-14927-04iMA61..RHD198308-198512

BLUE,BLUE,TRIM8#

sub45286-14927

main45286-14927-06iMA61..RHD..EUG198308-198512

DARK BROWN,BROWN,TRIM4#

sub45286-14927

main45286-14927-12iMA61..RHD..(ARL,GEN)198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

sub45286-14927

main45286-14928-01iMA61..LHD198308-198512

BLACK,BLACK,TRIM2#

sub45286-14928

main45286-14928-04iMA61..LHD198308-198512

BLUE,BLUE,TRIM8#

sub45286-14928

main45286-14928-06iMA61..LHD..EUR198308-198512

DARK BROWN,BROWN,TRIM4#

sub45286-14928

main45286-14928-12iMA61..LHD..(GEN,SAA)198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

sub45286-14928

main45286-24900-01iRA65,SA63..ST;AA63,RA61,63..RHD;RA60..RHD..(ST,XT)198108-198507

BLACK,BLACK,TRIM2#

sub45286-24900

main45286-24900-04iRA65,SA63..ST;AA63,RA61,63..RHD;RA60..RHD..(ST,XT)198108-198507

BLUE,BLUE,TRIM8#

sub45286-24900

main45286-24900-06iRA65,SA63..ST;AA63,RA61,63..RHD;RA60..RHD..(ST,XT)198108-198507

DARK BROWN,BROWN,TRIM4#

sub45286-24900

45807BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT

main45082-14030iMA61..5F..SAA;RA60..LHD..XT;MA61..LHD..EUR;AA63,RA61,63..LHD198108-198512

W/TILT STEERING

main45082-14050iRA61..RHD..EUG;RA61..RHD..XT..GEN;AA63,MA61,RA60,63,65,SA63..RHD..(GT,SPR,XT)198108-198512

W/TILT STEERING

main45807-14100iAA63,RA60,61,63,TA60..LHD198108-198507

main45807-24011iRA65,SA63..ST;AA63,RA61,63..RHD;RA60..RHD..(ST,XT)198108-198507

45817STOPPER, STEERING SHAFT THRUST

main45808-12020iAA63,MA61,RA6#,SA63,TA60198108-198501

sub45808-12030

main45808-12030iAA63,MA61,RA6#,TA60198501-198512

45817ARING, O(FOR STEERING SHAFT THRUST STOPPER)

main96711-24053iAA63,MA61,RA6#,SA63,TA60198108-198507

45867RETAINER, STEERING MAIN SHAFT STOPPER

main45867-12010iAA63,MA61,RA6#,SA63,TA60198108-198512

9010108070

main90101-08070

9010510082

main90105-10082

9011908185

main90119-08185

9016450048

main90164-50048

9017910178

main90179-10178

9020110323

main90201-10323

9098007195

main90980-07195

9161140816

main91611-40816

9161160614

main91611-60614

9165140614

main91651-40614

9165640620

main91656-40620

9331514010

main93315-14010

9331914008

main93319-14008

9451200800

main94512-00800

33 parts on this diagram · 11 diagrams in section
