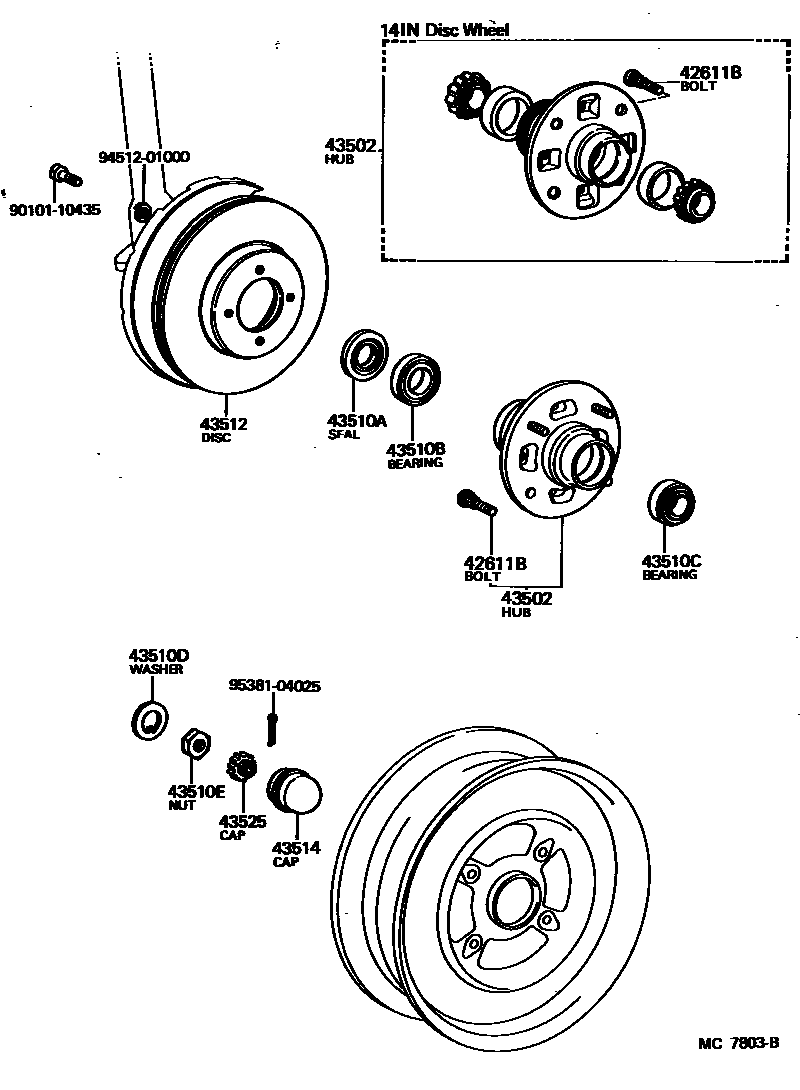

FRONT AXLE HUB

42611BBOLT, HUB (FOR FRONT AXLE)

main90942-02035iMA61,RA6#198108-198307

sub90942-02047

main90942-02036iTA60198108-198307

sub90942-02048

main90942-02047iAA63,MA61,RA6#,SA63198307-198512

main90942-02048iTA60198307-198507

43502HUB SUB-ASSY, FRONT AXLE

main43502-14030iTA60198108-198507

main43502-29015iMA61,RA6#198108-198208

sub43502-29035

main43502-29035iAA63,MA61,RA6#,SA63198208-198512

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-41123iTA60198108-198507

main90311-48001iAA63,MA61,RA6#,SA63198108-198512

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90368-29068iTA60198108-198507

main90368-31067iAA63,MA61,RA6#,SA63198108-198512

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90368-17017iTA60198108-198507

main90368-19037iAA63,MA61,RA6#,SA63198108-198512

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90214-16010iTA60198108-198507

main90214-20005iAA63,MA61,RA6#,SA63198108-198512

43510ENUT (FOR STEERING KNUCKLE)

main90170-16137iTA60198108-198507

sub94125-41600

main90170-19185iAA63,MA61,RA6#,SA63198108-198512

43512DISC, FRONT

main43512-14070iTA60198108-198507

main43512-14080iAA63,RA6#,SA63;MA61..ARL,GEN,SA,SAA198108-198512

sub43512-14090

main43512-14090iMA61..EUR;MA61..5F..SAA198112-198512

43514CAP, FRONT HUB GREASE

main43514-20010iTA60198108-198507

main43514-22020iAA63,MA61,RA6#,SA63198108-198512

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-20011iTA60198108-198507

main43525-22010iAA63,MA61,RA6#,SA63198108-198512

9010110435

main90101-10435

9451201000

main94512-01000

9538104025

main95381-04025

13 parts on this diagram · 1 diagram in section
