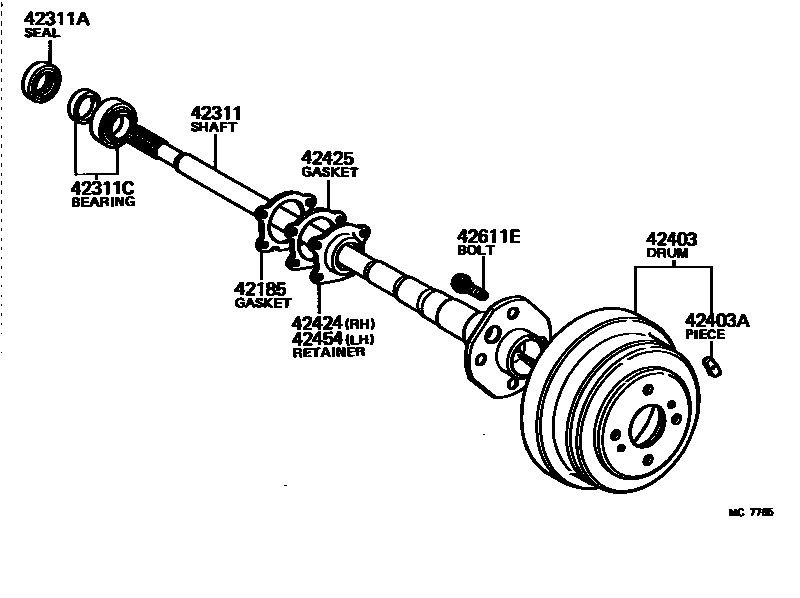

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1 0004 1

42185GASKET, REAR AXLE HOUSING END

main42185-14020iRA60,TA60¥620198108-198507

main42185-22030iAA63,MA61,RA63..GT,SPR¥250198108-198502

42311SHAFT, REAR AXLE

main42301-22050iAA63,MA61,RA61,63,65,SA63¥22,300198108-198512

main42311-14140iRA60,TA60¥22,100198108-198507

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90311-38009iAA63,MA61,RA61,63,65,SA63¥290198108-198512

main90311-52059iRA60,TA60¥320198108-198507

42311CBEARING(FOR REAR AXLE SHAFT)

main04421-30011iRA60,TA60¥3,710198108-198507

sub04421-30012¥3,700

42403DRUM SUB-ASSY, REAR BRAKE

main42431-12060iRA60,TA60¥13,100198108-198507

sub42431-14061¥11,900

main42431-14080iAA63,RA61,65,SA63..GTS,ST,XT¥11,600198108-198507

sub42431-14081¥11,600

42403APIECE, BALANCE (FOR REAR BRAKE DRUM)

main90937-01117iRA60;AA63,RA61,65,SA63,TA60..GTS,LT,ST,XT¥130198108-198507

10G,10G

main90937-01118iRA60;AA63,RA61,65,SA63,TA60..GTS,LT,ST,XT¥130198108-198507

20G,20G

main90937-01119iRA60;AA63,RA61,65,SA63,TA60..GTS,LT,ST,XT¥130198108-198507

30G,30G

main90937-01195iRA60;AA63,RA61,65,SA63,TA60..GTS,LT,ST,XT¥170198108-198507

40G,40G

main90937-01196iRA60;AA63,RA61,65,SA63,TA60..GTS,LT,ST,XT¥190198108-198507

50G,50G

main90937-01197iRA60;AA63,RA61,65,SA63,TA60..GTS,LT,ST,XT¥270198108-198507

60G,60G

42424RETAINER, REAR AXLE BEARING, OUTER, RH

main42424-14020iRA60,TA60¥620198108-198507

42425GASKET, REAR AXLE BEARING RETAINER

main42425-14020iRA60,TA60¥230198108-198507

42454RETAINER, REAR AXLE BEARING, OUTER, LH

main42454-14010iRA60,TA60¥620198108-198507

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02035iMA61,RA6#,TA60¥240198108-198307

sub90942-02047¥230

main90942-02047iAA63,MA61,RA6#,SA63,TA60¥230198307-198512

10 parts on this diagram · 4 diagrams in section
