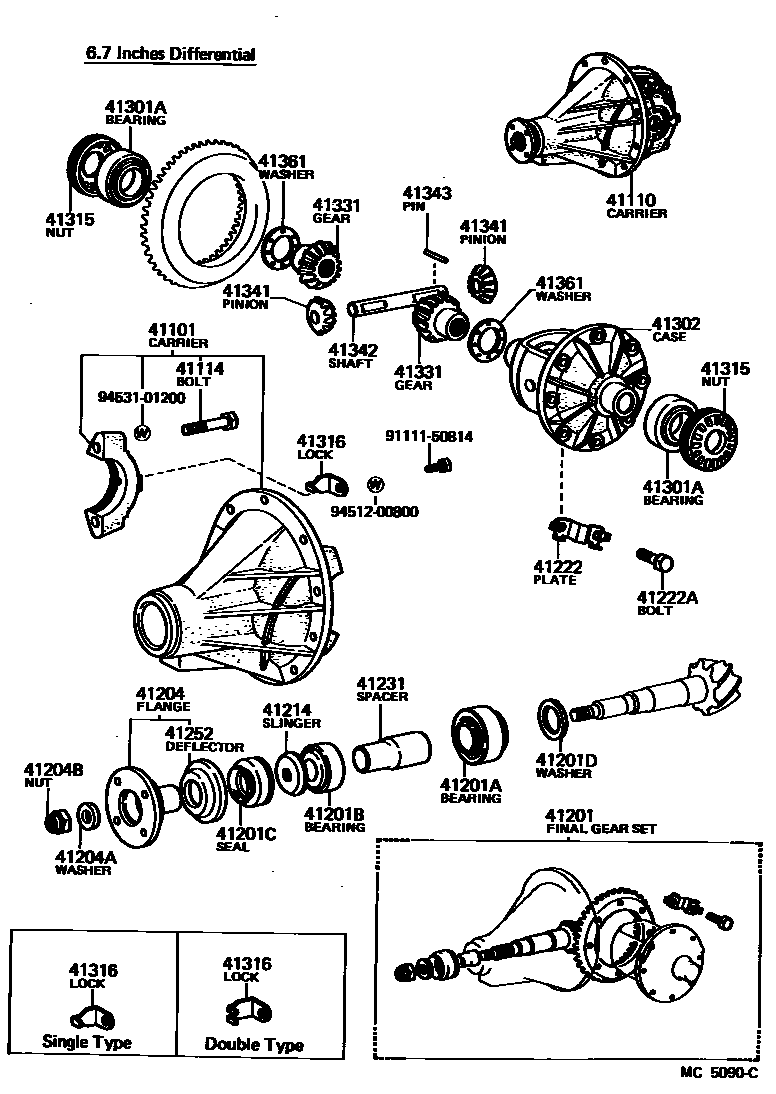

REAR AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1 0003 1 0005 1 0009 1

41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR

main41101-14020iAA63,RA61,SA63..ARL,GEN,SAA198108-198507

main41101-20020iRA60,TA60198108-198507

sub41101-20021

sub41204-48020

main41101-22020iMA61,RA63;RA61..EUG198108-198512

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-14180iMA61..5F..GEN198308-198512

*FGR=41:11=3.727,R=41:11=3.727

main41110-14190iMA61..5F..(EUR,GEN,SA,SAA)198112-198512

R=41:11=3.727,W/LSD

main41110-14200iRA63;MA61..5F..ARL198108-198512

R=43:11=3.909,W/LSD

main41110-14210iMA61..4FC198308-198512

*FGR=41:10=4.100,R=41:10=4.100,W/LSD

main41110-14220iRA61,SA63..5F..(ARL,SAA)198308-198507

*FGR=43:11=3.909,R=43:11=3.909

sub41110-14221

main41110-14230iSA63..4FC198308-198408

*FGR=41:10=4.100,R=41:10=4.100

sub41110-14231

main41110-14240iAA63..GEN198308-198507

*FGR=43:10=4.300,R=43:10=4.300

sub41110-14241

main41110-14280iRA65..5F198408-198507

R=43:12=3.583

main41110-14300iRA61..4FC..SAA198308-198507

R=41:11=3.727

sub41110-14301

main41110-14310iRA61..SDZ198108-198208

R=43:11=3.909

sub41110-14311

main41110-20181iTA60198108-198507

R=41:10=4.100

main41110-20191iRA60..4FC..ME198108-198308

R=41:11=3.727

main41110-20201iRA60..5F..ME;RA60..ARL,GEN198108-198308

R=43:11=3.909

main41110-22131iRA61,63..EUR198108-198507

*FGR=43:11=3.909,R=43:11=3.909

main41110-22141iMA61..4FC..GEN198308-198512

*FGR=41:10=4.100,R=41:10=4.100

main41110-24010iAA63..EUG198308-198507

R=43:10=4.300

main41110-24020iAA63..EUG198308-198507

R=43:10=4.300,W/LSD

41114BOLT, REAR DIFFERENTIAL BEARING CAP

main90101-12371iRA60,TA60;RA61..ST..SDZ198108-198507

sub90105-12114

main90101-12376iMA61,RA63;AA63,RA61..EUR198108-198408

main90105-12053iMA61;AA63,RA6#..ARL,EUR198408-198512

41201FINAL GEAR KIT, DIFFERENTIAL, REAR

main41201-19425iRA61..SDZ198108-198208

N=43:11

sub41201-19426

main41201-29196iTA60198108-198212

N=41:10

sub41201-29197

main41201-29197iTA60;SA63..4FC198212-198507

*FGR=41:10=4.100,N=41:10

main41201-29207iAA63..GEN198308-198507

*FGR=43:10=4.300,N=43:10

main41201-29226iRA60..4FC..ME198108-198212

N=41:11

sub41201-29227

main41201-29227iRA60,61..4FC..(ME,SAA)198212-198507

*FGR=41:11,N=41:11

main41201-29236iRA60..5F..ME;RA60..ARL,GEN198108-198212

N=43:11

sub41201-29237

main41201-29237iRA61..GEN198212-198507

*FGR=43:11,N=43:11

main41201-29297iMA61198112-198212

*FGR=41:11=3.727,N=41:11

sub41201-29298

main41201-29298iMA61..5F..(EUR,GEN,SA,SAA)198212-198512

N=41:11

sub41201-39635

main41201-39168iRA61,63198108-198212

*FGR=43:11=3.909,N=43:11

sub41201-39585

main41201-39467iRA65..5F198408-198507

N=43:12

sub41201-39795

main41201-39565iAA63..EUG198308-198507

*FGR=43:10=4.300,N=43:10

sub41201-39725

main41201-39575iMA61..4FC198308-198512

*FGR=41:10=4.100,N=41:10

sub41201-39625

main41201-39585iMA61..5F..ARL198212-198512

N=43:11

sub41201-39815

41201ABEARING (FOR REAR DRIVE PINION REAR)

main90366-35023iMA61,RA63;AA63,RA61,65..ARL,EUR198108-198512

main90368-34049iTA60;AA63,RA61,SA63..ARL,GEN,SAA198108-198507

sub90366-34019

41201BBEARING (FOR REAR DRIVE PINION FRONT)

main90366-30022iMA61,RA63;AA63,RA61,65..ARL,EUR198108-198512

sub90366-30078

main90368-30002iRA60,TA60;RA61..ST..SDZ198108-198507

41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

main90311-38010iMA61;AA63,RA61,63,65..ARL,EUR198108-198512

main90311-38015iRA60,TA60198108-198507

main90311-38019iAA63,RA61,SA63..ARL,GEN,SAA198108-198507

sub90311-38068

41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)

main90201-35396iAA63,MA61,RA6#,SA63,TA60198108-198512

T=2.36,MARK 05,T=2.35-2.37

main90201-35397iAA63,MA61,RA6#,SA63,TA60198108-198512

T=2.39,MARK 06,T=2.38-2.40

main90201-35398iAA63,MA61,RA6#,SA63,TA60198108-198512

T=2.42,MARK 07,T=2.41-2.43

main90201-35399iAA63,MA61,RA6#,SA63,TA60198108-198512

T=2.43,MARK 08,T=2.44-2.46

main90201-35400iAA63,MA61,RA6#,SA63,TA60198108-198512

T=2.48,MARK 09,T=2.47-2.49

main90201-35401iAA63,MA61,RA6#,SA63,TA60198108-198512

T=2.51,MARK 10,T=2.50-2.52

main90201-35402iAA63,MA61,RA6#,SA63,TA60198108-198512

T=2.54,MARK 11,T=2.53-2.55

main90201-35403iAA63,MA61,RA6#,SA63,TA60198108-198512

T=2.57,MARK 12,T=2.56-2.58

main90201-35404iAA63,MA61,RA6#,SA63,TA60198108-198512

T=2.60,MARK 13,T=2.59-2.61

main90201-35434iMA61,RA63;AA63,RA61,65..ARL,EUR198108-198512

T=2.24,MARK 01,T=2.23-2.25

sub90201-35515

main90201-35435iAA63,MA61,RA6#,SA63,TA60198108-198512

T=2.27,MARK 02,T=2.26-2.28

sub90201-35516

main90201-35436iAA63,MA61,RA6#,SA63,TA60198108-198512

T=2.30,MARK 03,T=2.29-2.31

sub90201-35517

main90201-35437iAA63,MA61,RA6#,SA63,TA60198108-198512

T=2.33,MARK 04,T=2.32-2.34

sub90201-35518

main90201-35438iAA63,MA61,RA6#,SA63,TA60198108-198512

T=2.63,MARK 14,T=2.62-2.64

main90201-35439iAA63,MA61,RA6#,SA63,TA60198108-198512

T=2.66,MARK 15,T=2.65-2.67

main90201-35440iAA63,MA61,RA6#,SA63,TA60198108-198512

T=2.69,MARK 16,T=2.68-2.70

main90201-35441iMA61,RA63;AA63,RA61,65..ARL,EUR198108-198512

T=2.72,MARK 17,T=2.71-2.73

41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

main41204-20020iRA60,TA60;RA61..ST..SDZ198108-198507

main41204-20030iMA61,RA63;AA63,RA61,65..ARL,EUR198108-198512

41204AWASHER, PLATE (FOR REAR DRIVE PINION)

main90201-18485iAA63,MA61,RA6#,SA63,TA60198108-198512

41204BNUT (FOR REAR DRIVE PINION)

main90179-18001iAA63,MA61,RA6#,SA63,TA60198108-198512

41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL

main41214-20020iRA60,TA60;RA61..ST..SDZ198108-198507

main41214-30021iMA61,RA63;AA63,RA61,65..ARL,EUR198108-198512

41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-30030iRA60,TA60;RA61..ST..SDZ198108-198507

sub41222-28010

main41222-30040iMA61,RA63;AA63,RA61,65..ARL,EUR198108-198512

sub41222-35030

41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)

main90101-11353iAA63,MA61,RA6#,SA63,TA60198108-198512

41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

main41231-22010iAA63,MA61,RA6#,SA63,TA60198108-198512

41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)

main41252-22010iRA60,TA60;RA61..ST..SDZ198108-198507

main41252-30010iMA61,RA63;AA63,RA61,65..ARL,EUR198108-198512

41301ABEARING(FOR REAR DIFFERENTIAL CASE)

main90368-41001iAA63,RA61,SA63..ARL,GEN,SAA198108-198507

main90368-41050iRA60,TA60198108-198507

KOYO

main90368-41053iRA60,TA60198108-198507

NSK

sub90368-41050

main90368-41056iRA60,TA60198108-198507

NACHI

sub90368-41050

main90368-45002iMA61,RA63;RA61..EUG198108-198512

41302CASE SUB-ASSY, REAR DIFFERENTIAL

main41302-14020iMA61;AA63,RA63..EUG198108-198512

W/LSD

sub41302-22020

sub90368-50006

main41311-14030iAA63,RA61,SA63..ARL,GEN,SAA198108-198507

sub41311-14031

sub41351-12030

main41311-22030iRA60,TA60198108-198507

sub41311-22031

sub41351-12030

main41311-22050iAA63,RA61,63,65..ARL,EUR198108-198512

sub41311-22060

sub90368-50006

41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING

main41315-22011iRA60,TA60198108-198507

41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT

main41316-22011iRA60,TA60198108-198507

SINGLE TYPE

main41317-22011iRA60,TA60198108-198507

DOUBLE TYPE

41331GEAR, REAR DIFFERENTIAL SIDE

main41305-14010iMA61;AA63,RA63..EUG198108-198512

W/LSD

sub41305-14011

main41331-14030iAA63,RA61,SA63..ARL,GEN,SAA198108-198507

main41331-22020iRA60,TA60198108-198507

main41331-22041iAA63,RA61,63,65..ARL,EUR198108-198512

sub41331-14040

41341PINION, REAR DIFFERENTIAL

main41341-14031iMA61;AA63,RA63..EUG198108-198512

W/LSD

main41341-22020iRA60,TA60;RA61..ST..SDZ198108-198507

sub41341-12030

main41341-30020iRA63;AA63,RA61,65..ARL,EUR198108-198512

sub41341-30050

41342SHAFT, REAR DIFFERENTIAL PINION

main41342-22010iRA60,TA60;RA61..ST..SDZ198108-198507

main41342-22020iMA61..GEN198108-198512

sub41342-22021

41343PIN, REAR DIFFERENTIAL PINION SHAFT

main90250-04193iTA60;AA63,RA61,SA63..ARL,GEN,SAA198108-198507

main90250-06058iMA61..GEN198108-198512

41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-22020iTA60;AA63,RA61,SA63..ARL,GEN,SAA198108-198507

T=1.00,MARK 02,T=0.98-1.02

main41361-22030iRA60,TA60;RA61..ST..SDZ198108-198507

T=1.10,MARK 03,T=1.08-1.12

main41361-22040iRA60,TA60;RA61..ST..SDZ198108-198507

T=1.20,MARK 04,T=1.18-1.22

main41361-22051iMA61;AA63,RA63..EUG198108-198512

T=1.80,MARK 1,T=1.80,W/LSD

main41361-22061iMA61;AA63,RA63..EUG198108-198512

T=1.85,MARK 2,T=1.85,W/LSD

main41361-22071iMA61;AA63,RA63..EUG198108-198512

T=1.90,MARK 3,T=1.90,W/LSD

main41361-22081iMA61;AA63,RA63..EUG198108-198512

T=1.95,MARK 4,T=1.95,W/LSD

main41361-22101iMA61;AA63,RA63..EUG198108-198512

T=2.00,MARK 5,T=2.00,W/LSD

main41361-22111iMA61;AA63,RA63..EUG198108-198512

T=2.05,MARK 6,T=2.05,W/LSD

main41361-22140iTA60;AA63,RA61,SA63..ARL,GEN,SAA198108-198507

T=0.95,MARK 14,T=0.93-0.97

main41361-22150iRA60,TA60;RA61..ST..SDZ198108-198507

T=1.05,MARK 15,T=1.03-1.07

main41361-22160iTA60;AA63,RA61,SA63..ARL,GEN,SAA198108-198507

T=1.15,MARK 16,T=1.13-1.17

main41361-30040iMA61..GEN198108-198512

T=1.0,T=0.96-1.04

main41361-30050iRA63;AA63,RA61,65..ARL,EUR198108-198512

T=1.1,T=1.06-1.14

main41361-30060iRA63;AA63,RA61,65..ARL,EUR198108-198512

T=1.2,T=1.16-1.24

main41361-30070iRA63;AA63,RA61,65..ARL,EUR198108-198512

T=1.3,T=1.26-1.34

9111150814

main91111-50814

9451200800

main94512-00800

9453101200

main94531-01200
