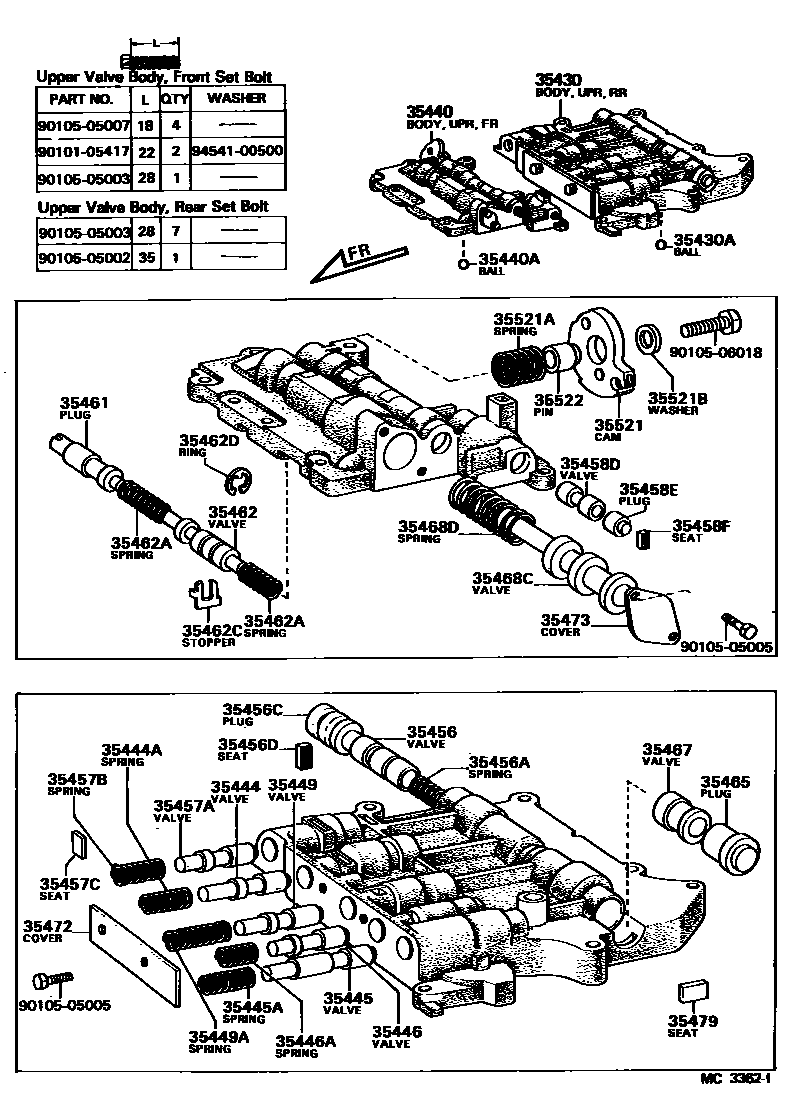

VALVE BODY & OIL STRAINER (ATM)

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1

35430BODY ASSY, REAR UPPER VALVE

main35430-22060iTA60..3FC198108-198308

main35430-22072iSA63..4FC198308-198408

main35430-22110iRA60,61..4FC198108-198507

main35430-22130iRA65..4FC198408-198507

main35430-30040iMA61..4FC..EFI198308-198512

sub35430-22072

sub35430-30041

main35430-30120iMA61..4FC..EUG198308-198512

main35430-30150iMA61..4FC..(GEN,SAA)198308-198512

35430ABALL (FOR REAR UPPER VALVE BODY)

main35495-22010iRA60,61,65,SA63,TA60..ATM198108-198512

OD=5.535,RUBBER,OD=5.56,GUM

sub35495-22020

main90360-06023iMA61,RA60,61,65,SA63,TA60..ATM198108-198512

0D=5.56,OD=5.56,STEEL

35440BODY ASSY, FRONT UPPER VALVE

main35440-20010iRA60,61..LHD..4FC198108-198409

sub35440-20011

main35440-20011iRA61..LHD..4FC198409-198507

main35440-22031iTA60..3FC198108-198308

main35440-22041iRA60,61,SA63..RHD..4FC198108-198409

sub35440-22120

main35440-22120iRA61..RHD..4FC198409-198507

main35440-30050iRA65..4FC198408-198409

sub35440-30051

main35440-30051iRA65..4FC198409-198507

main35440-30070iMA61..4FC..EUG198308-198512

main35440-30090iMA61..4FC..EFI;MA61..4FC..(GEN,SAA)198308-198512

35440ABALL (FOR FRONT UPPER VALVE BODY)

main35495-22010iRA60,61,65,SA63,TA60..ATM198108-198507

OD=5.535,RUBBER

sub35495-22020

35444VALVE, INTERMEDIATE MODULATOR

main35444-22010iMA61,TA60..ATM198108-198512

35444ASPRING, COMPRESSION (FOR INTERMEDIATE MODULATOR VALVE)

main90501-08725iMA61..4FC..EUG198308-198512

LOW COAST

main90501-09686iMA61..4FC..EUG198308-198512

INTERMEDIATE COAST

main90501-11001iTA60..3FC198108-198308

sub90501-11009

main90501-11009iMA61..4FC..EFI;MA61..4FC..(GEN,SAA)198308-198512

35445VALVE, LOW MODULATOR

main35445-22010iRA60,61,65,SA63,TA60..ATM198108-198512

35445ASPRING, COMPRESSION (FOR LOW MODULATOR VALVE)

main90501-08725iRA60,61,65,SA63,TA60..ATM198108-198512

35446VALVE, GOVERNOR MODULATOR

main35446-22010iRA60,61,65,SA63,TA60..ATM198108-198512

35446ASPRING, COMPRESSION (FOR GOVERNOR MODULATOR VALVE)

main90501-07019iMA61..4FC..(GEN,SAA)198308-198512

main90501-07688iMA61..4FC..EFI198108-198512

35449VALVE, SEQUENCE

main35447-22010iRA60,61,65,SA63,TA60..ATM198108-198512

RR UPR VALVE

main35449-22010iRA60,61,SA63,TA60..ATM198108-198507

LWR VALVE

35449ASPRING, COMPRESSION (FOR SEQUENCE VALVE)

main90501-12055iMA61..4FC..EFI198308-198512

main90501-12726iRA60,61,65,SA63,TA60..ATM198108-198512

35456VALVE, 2-3 SHIFT

main35456-22010iMA61..4FC..EFI;MA61..4FC..(GEN,SAA)198108-198512

main35456-30040iRA60,61,65,SA63..4FC198108-198507

main35456-30050iMA61..4FC..EUG198308-198512

35456ASPRING, COMPRESSION (FOR 2-3 SHIFT VALVE)

main90501-08013iRA60,61,65,SA63..4FC198108-198507

main90501-08724iTA60..3FC198108-198512

main90501-09028iMA61..4FC..EUG198308-198512

35456CPLUG (FOR 2-3 SHIFT VALVE)

main35452-22010iMA61..4FC..EFI;MA61..4FC..(GEN,SAA)198108-198512

main35452-30010iMA61..4FC..EUG198308-198512

sub90339-05014

main35452-30020iRA60,61,65,SA63..4FC198108-198507

35456DSEAT (FOR 2-3 SHIFT VALVE)

main35493-22020iTA60..3FC198108-198512

main35493-30030iMA61..4FC..EUG198308-198512

35457AVALVE, DETENT REGULATOR

main35457-22010iRA60,61,65,SA63,TA60..ATM198108-198512

35457BSPRING, COMPRESSION (FOR DETENT REGULATOR VALVE)

main90501-09006iRA60,61,65..4FC198108-198507

main90501-09007iMA61..4FC..EFI;MA61..4FC..(GEN,SAA)198308-198512

main90501-09739iSA63,TA60..ATM198108-198507

35457CSEAT (FOR DETENT REGULATOR VALVE)

main35438-22020iRA60,61,65,SA63,TA60..ATM198108-198512

35458DVALVE, CUT BACK

main35458-22010iRA60,61,65,SA63,TA60..ATM198108-198512

main35458-30020iMA61..4FC..EUG198308-198512

35458EPLUG (FOR CUT BACK VALVE)

main35459-22010iMA61,RA60,61,65,SA63,TA60..ATM198108-198512

35458FSEAT (FOR CUT BACK VALVE)

main35493-22010iMA61,RA60,61,65,SA63,TA60..ATM198108-198512

35461PLUG, DOWN SHIFT

main35408-22010iRA60,61..LHD..4FC198108-198507

main35408-22020iMA61..4FC..EFI;MA61..4FC..(GEN,SAA)198108-198512

main35408-30010iRA65..4FC198408-198507

main35408-30020iMA61..4FC..EUG198308-198512

35462VALVE, THROTTLE

main35462-22011iMA61,RA60,61,65,SA63,TA60..ATM198108-198512

35462ASPRING, COMPRESSION (FOR THROTTLE VALVE)

main90501-07680iMA61,RA60,61,65,SA63,TA60..ATM198108-198512

L=19.24,SECONDARY,WD=0.71,CW=8

main90501-11011iMA61..4FC..EUG198308-198512

PRIMARY

main90501-11681iRA60,61..LHD..4FC198108-198507

main90501-12011iRA60,61..RHD..4FC;RA65,SA63,TA60..ATM198108-198512

L=39.71,PRIMARY,WD=1.19,CW=11.5

35462CSTOPPER, VALVE VIBRATING

main35422-22010iMA61,RA60,61,65,SA63,TA60..ATM198108-198512

35462DRING, E (FOR THROTTLE VALVE)

main90523-06023iMA61,RA60,61,65,SA63,TA60..ATM198108-198512

35465PLUG, INTERMEDIATE SHIFT VALVE

main35465-22010iTA60..3FC198108-198512

main35465-30010iRA60,61,65,SA63..4FC198108-198507

35467VALVE, INTERMEDIATE SHIFT

main35467-22010iMA61..4FC..EFI;MA61..4FC..(GEN,SAA)198108-198512

main35467-30020iRA60,61,65,SA63..4FC198108-198507

35468CVALVE, SECONDARY REGULATOR

main35468-14010iMA61..4FC198308-198512

main35468-22010iRA60,61,65,SA63,TA60..ATM198108-198507

35468DSPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE)

main90501-16683iTA60..3FC198108-198308

main90501-19001iMA61,RA60,61,65,SA63..4FC198108-198512

35472COVER, VALVE BODY, NO.2

main35472-22010iMA61..4FC..EFI;MA61..4FC..(GEN,SAA)198108-198512

main35472-30010iMA61..4FC..EUG198308-198512

35473COVER, TRANSMISSION VALVE BODY

main35473-22010iMA61,RA60,61,65,SA63,TA60..ATM198108-198512

35479SEAT, INTERMEDIATE SHIFT VALVE

main35479-22010iTA60..3FC198108-198512

35521CAM, THROTTLE VALVE

main35521-22020iRA60,61..LHD..4FC198108-198507

main35521-22030iSA63,TA60..ATM;RA60,61..RHD..4FC198108-198507

main35521-30010iRA65..4FC;MA61..4FC..EFI;MA61..4FC..(GEN,SAA)198308-198512

main35521-30030iMA61..4FC..EUG198308-198512

35521ASPRING (FOR THROTTLE VALVE CAM RETURN)

main90508-12331iMA61,RA60,61,65,SA63,TA60..ATM198108-198512

35521BWASHER (FOR THROTTLE VALVE CAM SET)

main90201-06472iMA61,RA60,61,65,SA63,TA60..ATM198108-198512

35522PIN, THROTTLE VALVE CAM

main35522-22010iMA61,RA60,61,65,SA63,TA60..ATM198108-198512

9010105417

main90101-05417

9010505002

main90105-05002

9010505003

main90105-05003

9010505005

main90105-05005

9010505007

main90105-05007

9010506018

main90105-06018

9454100500

main94541-00500

45 parts on this diagram · 11 diagrams in section
