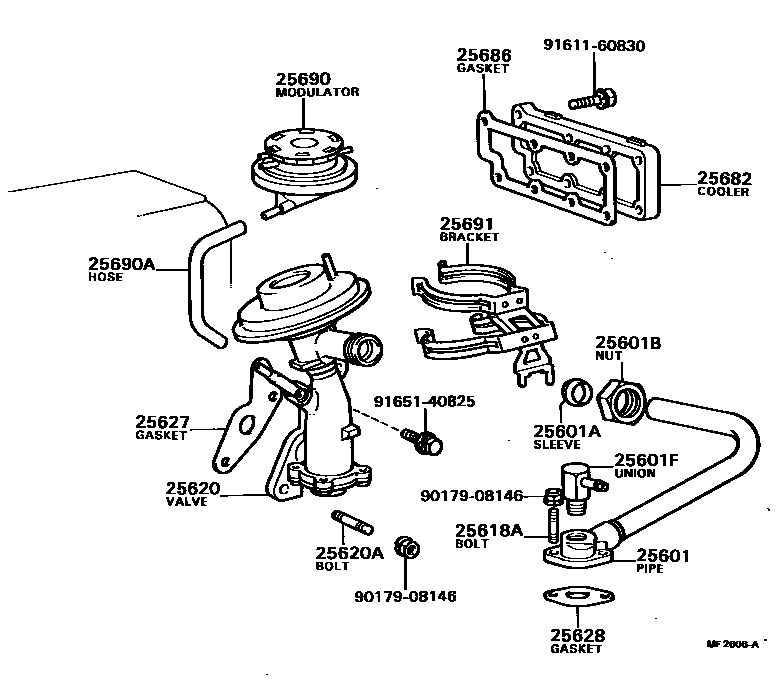

EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

25601PIPE SUB-ASSY, EGR, NO.1

main25601-35010i22REC..RA65198408-198507

main25601-38010i21R..RA61..EUG198108-198507

main25601-43010i5ME..MA61198308-198512

main25601-74010i2SC..SA63198308-198408

25601ASLEEVE, BALL, EGR PIPE, NO.1

main90410-16001i5ME..MA61198308-198512

main90410-16044i21R..RA61..4FC..SAA198108-198507

25601BNUT, UNION, EGR PIPE, NO.1

main90402-22005i5ME..MA61198308-198512

main90402-22081i21R,22REC..RA6#..ARL,EUR198108-198507

25601FUNION(FOR EGR PIPE, NO.1)

main90404-53027i5ME..MA61198308-198512

25618ABOLT, STUD(FOR EGR INLET)

main90116-08025i5ME..MA61198308-198512

25620VALVE ASSY, EGR

main25620-35110i22REC..RA65..5F198408-198507

main25620-35140i22REC..RA65..4FC198408-198507

main25620-37040i21RC..RA60198108-198308

sub25620-37050

main25620-37050i21RC..RA61198208-198408

main25620-37060i21RC..RA61198408-198507

main25620-37070i21R..RA61..5F..EUG198408-198507

main25620-37080i21R..RA61..4FC..(EUR,SAA)198408-198507

main25620-43031i5ME..MA61..4FC198308-198512

main25620-43100i5ME..MA61..5F198308-198512

main25620-74030i2SC..SA63..4FC198308-198408

main25620-74060i2SC..SA63..5F198308-198408

25620ABOLT, STUD(FOR EGR VALVE)

main90116-08025i5MGE..MA61198112-198512

main90116-08027i21R..RA61..4FC..SAA198408-198507

main90116-08207i21RC..RA60,61198108-198507

25627GASKET, EGR VALVE

main25627-43020i5MGE..MA61198112-198308

sub25627-43100

main25627-43030i5MGE..MA61198308-198512

sub25627-42040

main25627-45020i5ME..MA61198308-198512

sub25627-43070

main25627-74030i2SC..SA63198308-198408

sub25627-74031

25628GASKET, EGR INLET

main25628-35010i22REC..RA65198408-198507

sub25628-35011

main25628-38010i21R..RA61..EUG198108-198507

sub25628-35030

main25628-43010i5ME..MA61198308-198512

sub25628-43050

main25628-43030i5MGE..MA61198112-198308

sub25628-43060

25682COOLER, EGR, NO.2

main25682-45020i5ME..MA61198308-198512

25686GASKET, EGR COOLER, NO.2

main25686-45010i5ME..MA61198308-198512

sub25686-43010

25690MODULATOR ASSY, EGR VACUUM

main25690-37020i21RC..RA60,61198108-198408

main25870-35040i21RC,22REC..RA6#198408-198507

main25870-43021i5ME..MA61198308-198512

main25870-74010i2SC..SA63..5F198308-198408

main25870-74020i2SC..SA63..4FC198308-198408

25690AHOSE(FOR EGR VACUUM MODULATOR)

main25695-35010i22REC..RA65198408-198507

main90445-11020i5ME..MA61198308-198512

sub90445-11051

main90445-11065i2SC..SA63198308-198408

main90910-05147i21RC..RA60,61198108-198507

25691BRACKET, EGR VACUUM MODULATOR

main25691-35010i21RC..RA60,61198108-198507

main25691-35021i22REC..RA65198408-198507

main25691-43030i5ME..MA61198308-198512

9017908146

main90179-08146

9161160830

main91611-60830

9165140825

main91651-40825

17 parts on this diagram · 7 diagrams in section
