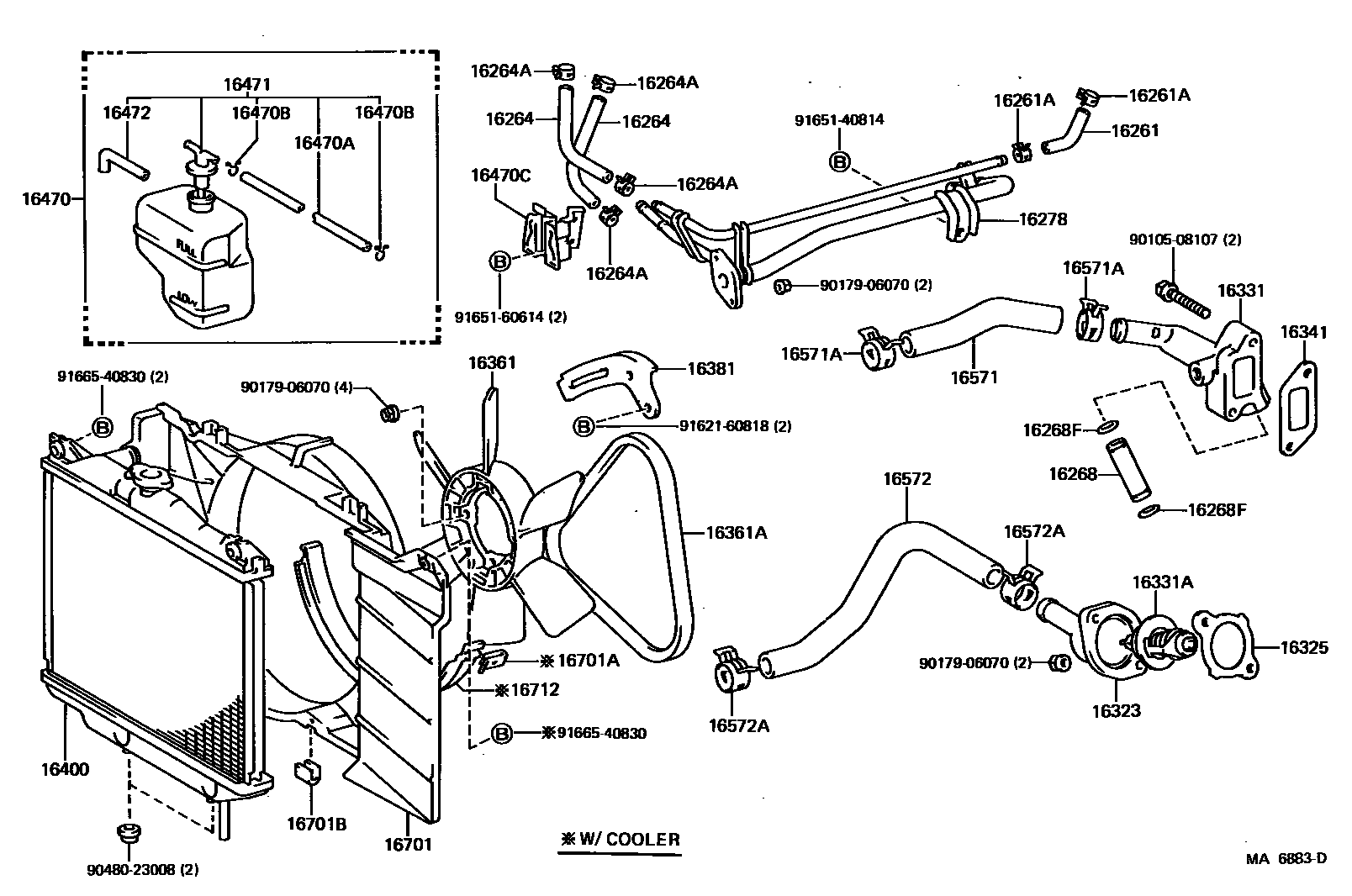

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0012 1

16261HOSE, WATER BY-PASS

main16261-16020i4AGE..AA63198308-198507

L=100

sub99555-10100

main16261-25020i2T#..TA60198108-198507

main16261-35010i21RC..RA60198108-198207

sub16261-35040

main16261-35040i21R#..RA61198207-198507

main16261-35070i22REC..RA65198408-198507

main16261-37010i21R#..RA60,61..EUR,GEN,ME,SAA198108-198408

main16261-63010i2SC..SA63198308-198408

main16261-88271i18RG..RA63198108-198308

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90467-13001i4AGE..AA63198308-198507

sub96135-51300

main90467-20005i21R#,22REC..RA60,61,65198108-198507

sub96134-41900

main90467-20006i18RG..RA63198210-198308

main90467-20134i18RG..RA63198108-198210

main96112-10250i2SC..SA63198308-198408

16264HOSE, WATER BY-PASS, NO.2

main16264-16020i4AGE..AA63198308-198507

L=210

16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

main90467-13001i4AGE..AA63198308-198507

sub96135-51300

16268PIPE, WATER BY-PASS, NO.1

main16268-16010i4AGE..AA63198308-198504

sub16268-16011

main16268-16011i4AGE..AA63198504-198507

main16268-35010i21RC..RA60198108-198507

main16268-35050i22REC..RA65198408-198507

main16268-37010i21R#..RA60,61..EUR,GEN,ME,SAA198108-198408

main16268-41140i5M#..MA61198112-198512

main16268-88272i18RG..RA63198108-198308

16268FRING, O(FOR WATER BY-PASS PIPE)

main96711-24013i4AGE..AA63198308-198507

16278PIPE, WATER BY-PASS, NO.2

main16278-16020i4AGE..AA63198308-198507

sub16278-16040

16323HOUSING, WATER INLET

main16323-16020i4AGE..AA63198308-198507

main16323-63010i2SC..SA63198308-198408

16325GASKET, WATER INLET HOUSING, NO.1

main16325-63010i2SC..SA63198308-198408

sub16325-63011

main16325-70021i4AGE..AA63198308-198507

16331OUTLET, WATER

main16331-16020i4AGE..AA63198308-198507

main16331-26060i2T#..TA60198108-198507

main16331-35040i22REC..RA65198408-198507

sub16331-35041

main16331-35050i21R#..RA61198408-198507

sub16331-35051

main16331-37020i21R..RA60,61198108-198208

sub16331-37070

sub91611-60828

main16331-37030i21RC..RA60198108-198208

main16331-37050i21RC..RA61198108-198208

sub16331-37060

sub91611-60828

main16331-37060i21RC..RA61198208-198408

main16331-37070i21R..RA60,61198208-198408

main16331-37080i21RC..RA60198208-198308

main16331-43010i5MGE..MA61198112-198512

main16331-43020i5ME..MA61198308-198512

main16331-63010i2SC..SA63..5F198308-198408

main16331-63020i2SC..SA63..4FC198308-198408

main16331-88270i18RG..RA63198108-198308

16331ATHERMOSTAT

main90916-03036i21R#,18RG..RA6#198108-198308

*WAX 88-100,FUJI-THOMSON

sub90916-03040

main90916-03040i2T#..TA60198108-198211

*WAX 88-100,KUZEH

sub90916-03078

main90916-03046i4AGE..AA63198308-198507

*WAX 82-95

main90916-03046i4AGE..AA63198308-198507

*WAX 82-95,*WAX 82-95

main90916-03055i5M#..MA61198112-198512

*WAX 88-100

sub90916-03078

main90916-03055i2T#..TA60198211-198512

*WAX 88-100,*WAX 88-100,KUZEH

sub90916-03078

16341GASKET, WATER OUTLET

main16341-16010i4AGE..AA63198308-198507

sub16341-16020

main16341-35010i21R#,22REC..RA60,61,65198208-198507

main16341-38010i2T#..TA60198108-198201

sub16341-38012

main16341-38011i2T#..TA60198201-198507

sub16341-38012

main16341-38020i21R#..RA60,61198108-198208

sub16341-38021

main16341-41010i5ME..MA61198308-198512

sub16341-38021

main16341-43010i5MGE..MA61198112-198512

sub16341-43011

main16341-63010i2SC..SA63198308-198408

sub16341-63011

main16341-88260i18RG..RA63198108-198210

sub16341-88280

main16341-88280i18RG..RA63198210-198308

sub16341-88281

16361FAN

main16361-16010i4AGE..AA63198308-198507

main16361-18010i2T..TA60..3FC198108-198308

sub16361-16010

main16361-26040i2T#..TA60..5F198108-198507

main16361-34030i18RG..RA63198108-198308

main16361-38010i21R#,22REC..RA60,61,65198108-198507

7 BLADES

main16361-41090i5M#..MA61198112-198512

7 BLADES

main16361-45020i2SC..SA63198308-198408

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02076i5MGE..MA61198112-198308

main90916-02148i4AGE..AA63198504-198507

main99321-00885i2T#..TA60198108-198507

main99331-00870i21R#..RA61198408-198507

main99331-00880i21R#..RA60,61198108-198408

L=880

main99331-10870i22REC..RA65198408-198507

main99363-01150i2SC..SA63198308-198408

sub99363-31150

main99365-50830i4AGE..AA63198308-198504

sub99365-20830

main99367-00920i5M#..MA61198308-198512

16381BAR, FAN BELT ADJUSTING

main16381-16010i4AGE..AA63198308-198507

main16381-25010i2T#..TA60198108-198507

main16381-34030i18RG..RA63198108-198308

main16381-35020i21R#,22REC..RA6#198408-198507

sub16381-35021

sub91651-60818

main16381-38020i21R#..RA60,61198108-198408

main16381-43010i5M#..MA61198308-198512

main16381-45011i5MGE..MA61198112-198308

main16381-63010i2SC..SA63198308-198408

16400RADIATOR ASSY

main16400-15081i4AGE..AA63198308-198507

W/CAP

sub16400-15240

main16400-26330i2T#..TA60..5F198108-198507

W/CAP

sub16400-26370

main16400-26340i2T..TA60..3FC198108-198308

W/CAP

sub16400-28081

main16400-35060i21R..RA60,61..5F..(ME,SAA)198108-198507

W/CAP

sub16400-35080

main16400-35060i21R..RA61..5F..XT..GEN198308-198507

W/CAP,MIDDLE EAST SPEC

sub16400-35080

main16400-35080i21R..RA60..4FC..ME198108-198507

W/CAP

main16400-37090i21RC,18RG..RA60,61,63..5F;21R..RA60,61..5F..(EUR,GEN)198108-198507

W/CAP

main16400-37100i21R..RA61..4FC..GEN198108-198507

W/CAP

sub16400-35080

main16400-37150i21R..RA61..LHD..4FC..GEN198404-198507

W/CAP,MIDDLE EAST SPEC

main16400-37150i21R..RA61..4FC..SAA198404-198507

W/CAP

main16400-41330i5MGE..MA61..4FC..(GEN,SAA)198308-198512

W/CAP

main16400-43030i5ME..MA61..5F198112-198512

W/CAP

sub16400-43040

main16400-43030i5MGE..MA61..5F..EUG198208-198512

sub16400-43040

main16400-43040i5ME..MA61..4FC198308-198512

W/CAP

main16400-43080i5MGE..MA61..EUG198209-198308

GENERAL COUNTRY SPEC

sub16400-41330

main16400-43080i5MGE..MA61..5F..(GEN,SA,SAA)198208-198512

W/CAP

sub16400-41330

main16400-63010i2SC..SA63..5F198308-198408

W/CAP

sub16400-74030

main16400-74030i2SC..SA63..4FC198404-198408

W/CAP

main16410-37140i21R..RA61..LHD..4FC..EUG198308-198507

W/CAP

sub16400-37140

main16410-37150i21R..RA61..LHD..4FC..GEN198308-198404

W/CAP,MIDDLE EAST SPEC

sub16400-37150

main16410-37150i21R..RA61..LHD..4FC..GEN198308-198404

W/CAP

sub16400-37150

main16410-74030i2SC..SA63..4FC198308-198404

W/CAP

sub16400-74030

16470TANK ASSY, RADIATOR RESERVE

main16470-16010i4AGE..AA63198308-198507

sub16470-16040

main16470-26080i18RG..RA63198108-198308

main16470-35020i22REC..RA65198408-198507

sub16470-35030

main16470-70010i5M#..MA61198112-198512

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main90099-33534i4AGE..AA63198308-198507

L=1000

main90099-33534i22REC..RA65198408-198507

L=1450(*H,L=800),NO.1

main90445-12013i18RG..RA63198108-198308

L=1000(*H,L=700)

sub90099-33534

main90445-12043i5M#..MA61198112-198512

L=600(*H,L=360)

sub90445-12078

main90445-12078i22REC..RA65198408-198507

L=1800(*H,L=1635),NO.2

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i4AGE..AA63198108-198512

16470CBRACKET(FOR RADIATOR RESERVE TANK)

main16402-26010i18RG..RA63198108-198308

main16611-16010i4AGE..AA63198308-198507

16471CAP SUB-ASSY, RESERVE TANK

main16405-16010i4AGE..AA63198308-198507

sub16405-16030

main16471-35020i22REC..RA65198408-198507

sub16471-35030

16472HOSE, BREATHER

main85338-12020i4AGE..AA63198308-198507

main85338-20030i22REC..RA65198408-198507

main85338-30010i5M#..MA61198108-198512

16571HOSE, RADIATOR, INLET

main16571-16020i4AGE..AA63198308-198507

main16571-34140i18RG..RA63198108-198308

main16571-35030i21R#..RA60,61198108-198507

main16571-35060i22REC..RA65198408-198507

main16571-43010i5MGE..MA61198112-198512

main16571-43040i5ME..MA61198308-198512

main16571-63010i2SC..SA63198308-198408

main90916-01143i2T#..TA60198108-198507

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-33002i2SC..SA63198406-198507

sub90467-34003

main90467-34001i4AGE..AA63198308-198506

sub90467-33003

main90467-37001i5M#..MA61198108-198512

sub90467-37003

16572HOSE, RADIATOR, OUTLET

main16571-26090i2T#..TA60198108-198507

main16572-16030i4AGE..AA63198308-198507

main16572-34090i18RG..RA63198108-198308

main16572-35080i21R#,22REC..RA6#198409-198507

main16572-38070i21R#,22REC..RA60,61,65198108-198409

sub16572-35080

main16572-41100i5ME..MA61198308-198410

sub16572-41101

sub90467-37002

main16572-41101i5ME..MA61198410-198512

main16572-43010i5MGE..MA61198112-198410

sub16572-43011

sub90467-37002

main16572-43011i5MGE..MA61198410-198512

main16572-63010i2SC..SA63198308-198408

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-33002i2SC..SA63198406-198507

sub90467-34003

main90467-34001i4AGE..AA63198308-198506

sub90467-33003

main90467-37002i5M#..MA61198410-198512

sub90467-37005

main96111-10460i21R#,22REC,18RG..RA6#198108-198507

RADIATOR SIDE

main96111-10460i5M#..MA61198112-198410

main96111-10490i2T#..TA60198108-198507

WATER PUMP SIDE

16701SHROUD SUB-ASSY, FAN

main16711-15070i4AGE..AA63198308-198507

main16711-26090i2T#..TA60..5F198108-198507

main16711-28090i2T..TA60..3FC198108-198305

sub16711-28091

main16711-28091i2T..TA60..3FC198305-198308

main16711-34110i18RG..RA63198108-198308

main16711-35010i21R#,22REC..RA60,61,65198108-198507

main16711-43020i5MGE..MA61198112-198301

sub16711-43021

main16711-43021i5M#..MA61198301-198512

main16711-63010i2SC..SA63198308-198408

16701ACLIP(FOR FAN SHROUD)

main90468-06013i21R..RA61;21R#,22REC,18RG..RA60,63,65198108-198512

W/COOLER

16701BCUSHION, FAN SHROUD

main90541-11002i21R#,22REC,18RG..RA6#198108-198507

16712SHROUD, FAN, NO.2

main16712-43020i5MGE..MA61198112-198301

W/COOLER

sub16712-43021

main16712-43021i5M#..MA61198301-198512

W/COOLER

main16712-44040i2T#..TA60198108-198507

W/COOLER

main16712-54050i2SC..SA63198108-198507

W/COOLER

9010508107

main90105-08107

9017906070

main90179-06070

9048023008

main90480-23008

9162160818

main91621-60818

9165140814

main91651-40814

9165160614

main91651-60614

9166540830

main91665-40830

37 parts on this diagram · 11 diagrams in section
