13511CAMSHAFT

main13501-16010i198308-198507

main13501-43020i198112-198505

main13501-43040i198505-198512

main13501-45030i198308-198512

main13501-63010i198308-198408

sub13501-63011

main13501-88250i198108-198308

main13511-25010i198108-198210

sub13511-25900

main13511-25020i198108-198210

sub13511-25901

main13511-25900i198210-198507

main13511-25901i198210-198308

main13511-35010i198108-198507

main13511-37010i198108-198308

13511APIN, STRAIGHT(FOR CAMSHAFT KNOCK)

main90072-25005i198108-198308

main90249-08042i198308-198512

L=23,OD=8

main90250-05121i198112-198512

L=15,OD=5

main90250-06001i198108-198507

L=14,OD=6,L=14,OD=6

13512CAMSHAFT, NO.2

main13502-16010i198308-198507

main13502-43020i198112-198505

main13502-43040i198505-198512

main13502-88250i198108-198308

13523GEAR OR SPROCKET, CAMSHAFT TIMING

main13522-33010i198108-198507

main13523-35010i198207-198408

sub13523-35020

main13523-35020i198408-198507

main13523-38011i198108-198207

main13523-43010i198308-198512

N=40

main13523-88220i198108-198308

N=24

13523PPULLEY, CAMSHAFT TIMING

main13523-16010i198308-198507

main13523-43020i198112-198308

main13523-43040i198308-198512

main13523-63020i198308-198408

13711VALVE, INTAKE

main13711-16010i198308-198507

sub13711-16020

main13711-25011i198108-198507

main13711-35031i198108-198308

main13711-35040i198408-198507

sub13711-35050

main13711-37010i198108-198408

main13711-43020i198308-198512

main13711-43030i198112-198512

main13711-63010i198308-198408

main13711-88212i198108-198308

13711ASEAL OR RING, O(FOR VALVE STEM OIL)

main90072-72206i198108-198308

main90913-02015i198308-198512

EXHAUST

main90913-02022i198308-198512

INTAKE

main90913-02023i198108-198212

main90913-02023i198108-198507

INTAKE

main90913-02053i198112-198512

sub90913-02110

main90913-02057i198308-198408

sub90913-02094

main90913-02058i198108-198507

EXHAUST

main90913-02066i198308-198507

13711BSPRING, COMPRESSION(FOR INNER)

main90072-50137i198108-198308

sub90501-26025

main90501-26001i198308-198512

WD=2.6,CW=7.75

main90501-33001i198308-198507

main90501-45014i198308-198408

main90501-45017i198112-198512

main90501-47540i198108-198507

13715VALVE, EXHAUST

main13715-16010i198308-198507

sub13715-16020

main13715-25011i198108-198507

main13715-35030i198108-198308

main13715-35040i198408-198507

main13715-37020i198108-198408

main13715-43010i198112-198512

main13715-45020i198308-198512

main13715-63011i198308-198408

main13715-88222i198108-198308

13734SEAT, VALVE SPRING

main13734-16010i198308-198507

main13734-43010i198112-198512

main13734-88211i198108-198308

13741RETAINER, VALVE SPRING

main13740-43010i198112-198512

EXHAUST

main13741-16010i198308-198507

main13741-25012i198108-198507

main13741-38010i198108-198507

main13741-41010i198308-198512

main13741-43010i198112-198512

INTAKE

main13741-63010i198308-198408

INTAKE

main13741-88211i198108-198308

13741ALOCK, VALVE SPRING RETAINER

main90913-03005i198108-198512

main90913-03010i198108-198208

sub90913-03022

main90913-03021i198308-198507

main90913-03022i198208-198308

13751LIFTER, VALVE

main13751-16010i198308-198507

main13751-31020i198108-198507

STD

sub13751-44030

main13751-88210-01i198108-198308

OD=37.925-37.931,BLACK,BLACK

sub13751-88210

main13751-88210-02i198108-198308

OD=37.931-37.937,BLUE,RED/MAROON

sub13751-88210

main13751-88210-03i198108-198308

OD=37.937-37.943,YELLOW,GRAY

sub13751-88210

main13751-88210-04i198108-198308

OD=37.943-37.949,RED,BLUE

sub13751-88210

main13755-31020i198108-198507

O/S 0.05

sub13755-44030

13753SHIM, VALVE ADJUSTING

main13753-16020i198308-198507

T=2.50,T=2.50

main13753-16040i198308-198507

T=2.55,T=2.55

main13753-16060i198308-198507

T=2.60,T=2.60

sub13753-16351

main13753-16080i198308-198507

T=2.65,T=2.65

sub13753-16371

main13753-16100i198308-198507

T=2.70,T=2.70

sub13753-16401

main13753-16120i198308-198507

T=2.75,T=2.75

sub13753-16421

main13753-16140i198308-198507

T=2.80,T=2.80

sub13753-16451

main13753-16160i198308-198507

T=2.85,T=2.85

sub13753-16471

main13753-16180i198308-198507

T=2.90,T=2.90

sub13753-16501

main13753-16200i198308-198507

T=2.95,T=2.95

sub13753-16521

main13753-16220i198308-198507

T=3.00,T=3.00

sub13753-16551

main13753-16240i198308-198507

T=3.05,T=3.05

sub13753-16571

main13753-16260i198308-198507

T=3.10,T=3.10

sub13753-16601

main13753-16280i198308-198507

T=3.15,T=3.15

sub13753-16621

main13753-16300i198308-198507

T=3.20,T=3.20

sub13753-16651

main13753-16320i198308-198507

T=3.25,T=3.25

main13753-16340i198308-198507

T=3.30,T=3.30

9020110019

main90201-10019

9111271020

main91112-71020

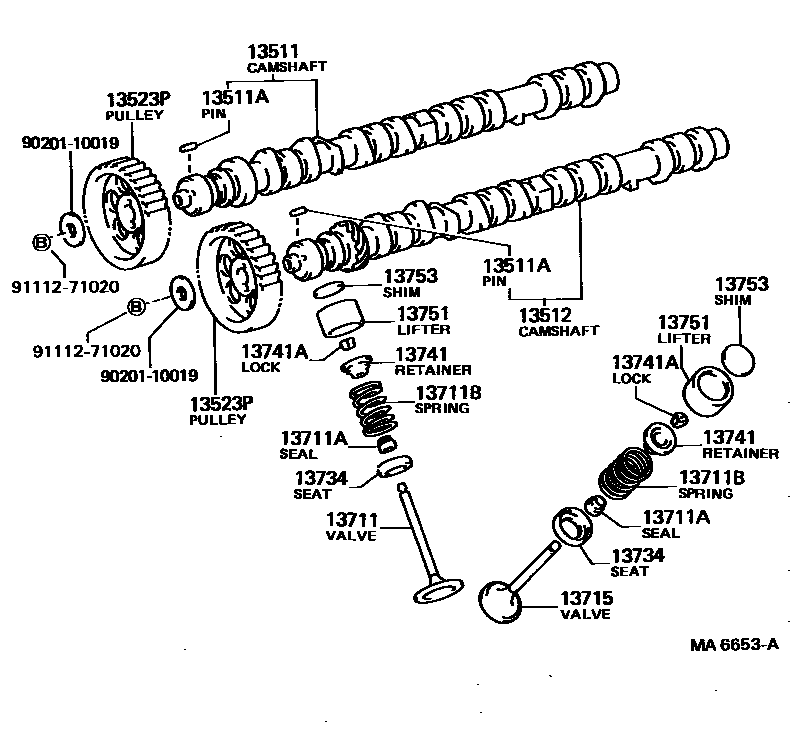

CAMSHAFT & VALVE
