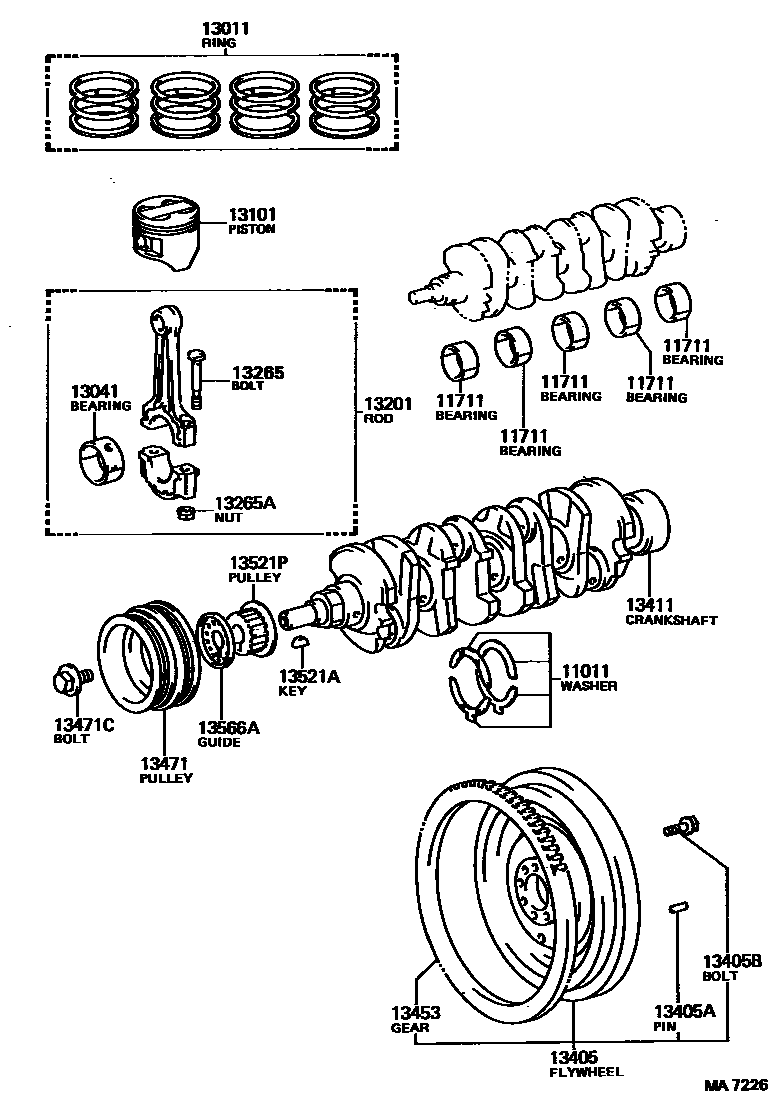

CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
STD,STD
STD,STD
STD,STD
STD,STD
O/S 0.125
O/S 0.125,O/S 0.125
O/S 0.125,O/S 0.125
O/S 0.125,O/S 0.125
O/S 0.250
O/S 0.250,O/S 0.250
O/S 0.250,O/S 0.250
O/S 0.250,O/S 0.250
11711BEARING, CRANKSHAFT
NO.1,MARK"1",MARK 1
NO.1,MARK"2",MARK 2
NO.1,MARK"3",MARK 3
NO.1,MARK"4",MARK 4
NO.1,MARK"5",MARK 5
MARK"1",MARK 1
MARK"2",MARK 2
MARK"3",MARK 3
MARK"3",MARK 3
MARK"4",MARK 4
MARK"5",MARK 5
NO.2,MARK"1",MARK 1
NO.2,MARK"2",MARK 2
NO.2,MARK"3",MARK 3
NO.2,MARK"4",MARK 4
NO.2,MARK"5",MARK 5
13011RING SET, PISTON
STD
STD
STD
STD
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.75
O/S 1.00
O/S 1.00
O/S 1.00
O/S 1.00
13041BEARING, CONNECTING ROD
MARK"1",MARK 1
MARK"2",MARK 2
MARK"3",MARK 3
MARK"1",MARK 1
MARK"2",MARK 2
MARK"3",MARK 3
MARK"4",MARK 4
MARK"5",MARK 5
MARK"1",MARK 1
MARK"2",MARK 2
MARK"3",MARK 3
MARK"3",MARK 3
MARK"4",MARK 4
MARK"5",MARK 5
MARK"6",MARK 6
MARK"7",MARK 7
13101PISTON SUB-ASSY, W/PIN
STD
STD
STD
STD
STD
STD,STD
STD,STD
STD,STD
STD
STD
STD
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.50,O/S 0.50
O/S 0.50,O/S 0.50
O/S 0.50,O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.75
O/S 0.75,O/S 0.75
O/S 0.75,O/S 0.75
O/S 0.75,O/S 0.75
O/S 0.75
O/S 1.00
O/S 1.00
O/S 1.00
O/S 1.00,O/S 1.00
O/S 1.00,O/S 1.00
O/S 1.00,O/S 1.00
O/S 1.00
O/S 1.00
O/S 1.00
13201ROD SUB-ASSY, CONNECTING
sub13201-19066
sub13201-34012
sub13201-39015
sub13201-49025
sub13201-49025
sub13201-49015
sub13201-49026
sub13201-69055
13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=23,OD=8,L=23,OD=8
L=18,OD=8
13405BBOLT, FLYWHEEL SETTING
*11-1.25PX26-18
13453GEAR, FLYWHEEL RING
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
13521PPULLEY, CRANKSHAFT TIMING
13566AGUIDE, TIMING BELT
19 parts on this diagram · 8 diagrams in section
