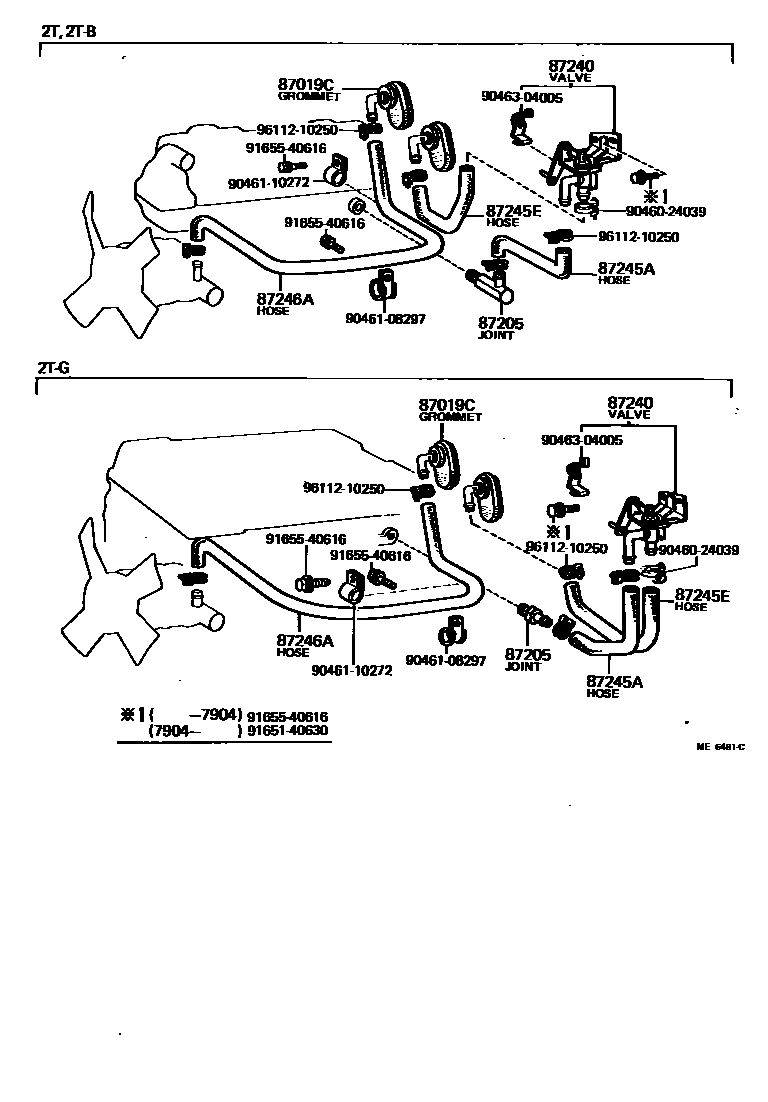

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1

87019CGROMMET, HEATER HOSE

main90480-01015iRA40,TA40197708-198107

87205JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALVE

main87251-14010iTA40..GT197708-198107

main87251-20100iTA40..LT,ST197708-198107

main90404-54004iRA40..GT197708-197908

87240VALVE ASSY, HEATER WATER

main87240-14070iRA40,TA40197708-197904

main87240-20240iRA40,TA40197904-198107

87245AHOSE, HEATER WATER, INLET A

main87209-20320iTA40..LHD..(LT,ST)197808-198107

main87245-14390iTA40..LT,ST197708-198107

main87245-14410iTA40..GT197708-198107

main87245-14420iRA40..GT197708-197808

main87245-14530iRA40..ARL197708-197805

L=920

main87245-14570iRA40..(ST,XT)..(EUR,GEN)197708-197908

sub87245-14690

main87245-14690iRA40..LT,ST,XT197908-198107

main87245-20390iRA40..GT197808-198107

87245EHOSE, HEATER WATER, INLET E

main87245-14120iRA40,TA40..RHD197708-197809

sub87245-20400

main87245-20400iRA40,TA40..RHD197809-198107

main99552-30055iRA40,TA40..LHD197708-198107

L=55

sub99552-30075

87246AHOSE, HEATER WATER, OUTLET A

main87245-14430iTA40..RHD..(LT,ST)197708-197809

sub87245-20420

main87245-14440iTA40..RHD..GT197708-198107

sub99552-31000

main87245-14450iRA40..RHD..GT197708-198107

sub99552-31000

main87245-20420iTA40..RHD..(LT,ST)197809-198107

sub99552-32000

main99552-30055iRA40,TA40..LHD197708-198107

L=55

sub99552-30075

main99552-30700iRA40..RHD..(LT,ST,XT)197908-198107

L=700

sub99556-30700

main99552-30720iRA40..RHD..(LT,ST,XT)197708-197908

L=720

sub99552-31000

9046024039

main90460-24039

9046108297

main90461-08297

9046110272

main90461-10272

9046304005

main90463-04005

9165140630

main91651-40630

9165540616

main91655-40616

9611210250

main96112-10250

13 parts on this diagram · 4 diagrams in section
