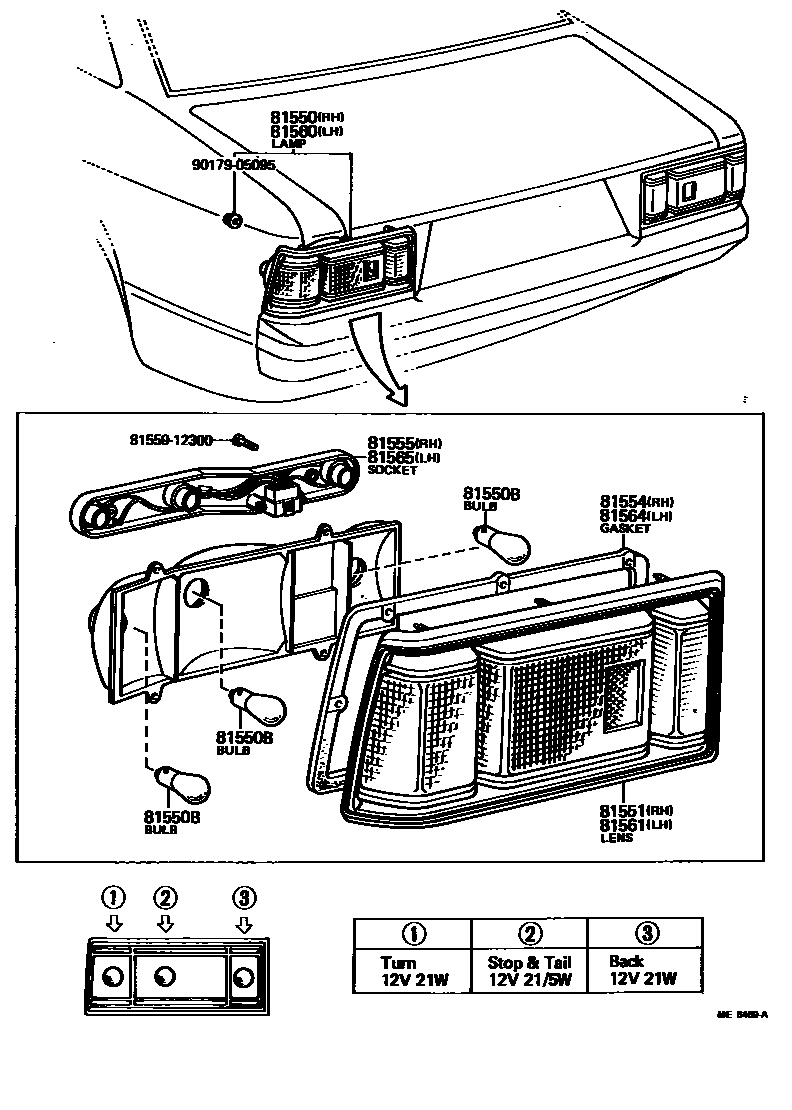

REAR COMBINATION LAMP

0001 1 0002 1 0003 1 0004 1

81550LAMP ASSY, REAR COMBINATION, RH

main81550-19915iRA40,TA40..CP197708-197908

main81550-19955iRA40,TA40..LB197708-197908

main81550-80059iRA40,TA40..CP..LHD..EUG197908-198107

WEST GERMANY SPEC

main81550-80062iRA40,TA40..CP197908-198107

main81550-80065iRA40,TA40..LB197908-198107

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11050×2iRA40,TA40..CP197908-198107

12V 5W,12V 5W

main99132-11210×4iRA40,TA40197708-198107

12V 21W,12V 21W

main99132-21210×2iRA40,TA40..CP197708-197908

12V 21/5W,12V 21/5W

81551LENS, REAR COMBINATION LAMP, RH

main81551-14290iRA40,TA40..CP197708-197908

main81551-14291iRA40,TA40..CP197908-198107

main81551-14311iRA40,TA40..LB197908-198107

main81551-14320iRA40,TA40..LB197708-197908

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81554-14280iRA40,TA40..CP197708-198107

main81554-14310iRA40,TA40..LB197708-197908

main81554-14311iRA40,TA40..LB197908-198107

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-14280iRA40,TA40..CP197708-197908

main81555-14290iRA40,TA40..CP197908-198107

main81555-14320iRA40,TA40..LB197708-197908

main81555-14321iRA40,TA40..LB197908-198107

81560LAMP ASSY, REAR COMBINATION, LH

main81560-19915iRA40,TA40..CP197708-197908

main81560-19955iRA40,TA40..LB197708-197908

main81560-80061iRA40,TA40..CP..LHD..EUG197908-198107

WEST GERMANY SPEC

main81560-80064iRA40,TA40..CP197908-198107

main81560-80067iRA40,TA40..LB197908-198107

81561LENS, REAR COMBINATION LAMP, LH

main81561-14290iRA40,TA40..CP197708-197908

main81561-14291iRA40,TA40..CP197908-198107

main81561-14311iRA40,TA40..LB197908-198107

main81561-14320iRA40,TA40..LB197708-197908

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81554-14280iRA40,TA40..CP197708-198107

main81554-14310iRA40,TA40..LB197708-197908

main81554-14311iRA40,TA40..LB197908-198107

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-14320iRA40,TA40..LB197708-197908

main81555-14321iRA40,TA40..LB197908-198107

main81565-14280iRA40,TA40..CP197708-197908

main81565-14290iRA40,TA40..CP197908-198107

8155912300MOULDING, REAR COMBINATION LAMP, RH

main81559-12300

9017905095

main90179-05095

11 parts on this diagram · 4 diagrams in section
