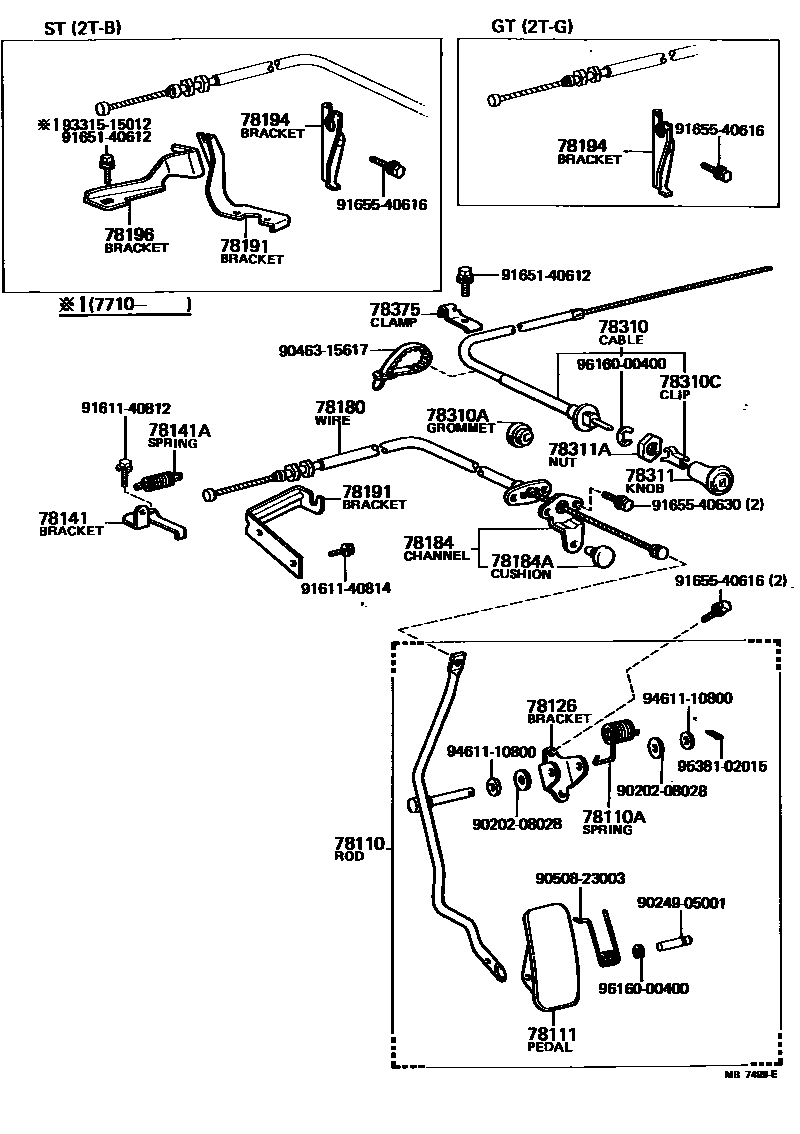

ACCELERATOR LINK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

78110ROD ASSY, ACCELERATOR PEDAL

main78120-14140iRA40..LHD..(ST,XT)197708-197806

main78120-14141iRA40..LHD..(ST,XT)197806-197904

main78120-14142iRA40..LHD..(ST,XT)197904-198107

sub78120-14230

main78120-14150iRA40..LHD..GT197708-197806

main78120-14151iRA40..LHD..GT197806-197904

main78120-14152iRA40..LHD..GT197904-198107

main78120-14160iTA40..LHD..LT197708-197806

main78120-14161iTA40..LHD..LT197806-197904

sub78120-14162

main78120-14162iTA40..LHD..LT197904-198107

main78120-14170iTA40..LHD..(GT,ST)197708-197806

main78120-14171iTA40..LHD..(GT,ST)197806-197904

sub78120-14172

main78120-14172iTA40..B;TA40..LHD..4F..ST..GEN;TA40..LB..LHD..GT..GEN;TA40..LHD..(GT,ST)..EUG;TA40..CP..LHD..5F..(GT,ST)..GEN197904-198107

main78120-14190iRA40..RHD197708-197908

sub78120-14191

main78120-14191iRA40..RHD197908-198008

sub78120-14192

main78120-14192iRA40..RHD198008-198107

main78120-14200iTA40..RHD197708-197908

sub78120-14201

main78120-14201iTA40..RHD197908-198107

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-23001iRA40..LHD197708-198107

main90508-23007iTA40..LHD197708-198107

main90508-26038iRA40..RHD198008-198107

main90508-29001iRA40,TA40..RHD197708-198107

78111PEDAL, ACCELERATOR

main78010-14011iRA40,TA40..LHD197806-197904

main78010-14012iRA40,TA40..LHD197904-198107

main78010-14020iRA40,TA40..LHD197708-197806

main78111-12100iRA40,TA40..RHD197708-198107

78126BRACKET, ACCELERATOR PEDAL ROD

main78126-14060iRA40,TA40..RHD197708-198107

78141BRACKET, ACCELERATOR WIRE RETURN SPRING

main78187-12020iTA40..RHD..MTM..LT197708-197805

78141ASPRING, TENSION(FOR ACCELERATOR WIRE RETURN SPRING)

main90507-08002iTA40..LB..LHD..5F..ST..GEN197805-198107

main90507-10002iTA40..LHD..LT197708-197805

main90507-12024iTA40..RHD..LT197708-197805

78180WIRE ASSY, ACCELERATOR

main78180-14010iTA40..RHD..LT197708-198107

main78180-14020iTA40..RHD..ST197708-198107

main78180-14030iTA40..RHD..GT197708-198107

main78180-14050iTA40..LHD..LT197708-198107

main78180-14060iTA40..B;TA40..LHD..ST..EUG;TA40..LHD..4F..ST..GEN;TA40..CP..LHD..5F..ST..GEN197708-198107

main78180-14070iTA40..LHD..GT197708-198107

78184CHANNEL, ACCELERATOR IDLE ADJUSTING STOPPER

main78181-14040iTA40197708-197908

main78181-14041iTA40197908-198107

78184ACUSHION (FOR ACCELERATOR ADJUST STOPPER CHANNEL)

main90541-06008iTA40197708-198107

78191BRACKET, ACCELERATOR WIRE SUPPORT

main21524-88220iTA40..LHD..GT197708-198107

main78024-12010iTA40..LHD..LT197805-198107

main78184-12050iTA40..RHD..LT197708-198107

main78184-12070iTA40..RHD..ST197708-198107

main78184-12091iTA40..LHD..LT197708-197805

main78184-12110iTA40..B;TA40..LHD..ST..EUG;TA40..LHD..4F..ST..GEN;TA40..CP..LHD..5F..ST..GEN197708-198107

78194BRACKET, ACCELERATOR WIRE SUPPORT, NO.2

main78186-14010iTA40..RHD..(GT,ST)197708-198107

78196BRACKET, ACCELERATOR WIRE SUPPORT, NO.3

main78198-12010iTA40..RHD..ST197708-198107

78310CABLE ASSY, CHOKE

main78310-14141iTA40..RHD..ST197708-197908

main78310-14142iTA40..RHD..ST197908-198104

main78310-14143iTA40..RHD..ST198104-198107

main78310-14161iRA40,TA40..RHD..GT..GEN197908-198104

main78310-14162iRA40,TA40..RHD..GT..GEN198104-198107

main78310-14171iTA40..LHD..ST197708-197908

main78310-14172iTA40..B;TA40..LHD..4F..ST..GEN;TA40..CP..LHD..5F..ST..GEN197908-198104

main78310-14173iTA40..B;TA40..LHD..4F..GEN;TA40..CP..LHD..5F..ST..GEN198104-198107

main78310-14181iTA40..RHD..GT197708-197908

main78310-14191iTA40..LHD..GT197708-197908

main78310-14201iRA40..RHD..GT197708-197908

main78310-14211iRA40..LHD..GT197708-197908

main78310-14221iRA40,TA40..LHD..GT..GEN197908-198104

main78310-14222iRA40,TA40..LHD..GT..GEN198104-198107

main84506-14010iTA40..RHD..ST..EUG197908-198104

W/CHOKE WARNING LAMP

sub84506-14011

sub78311-12031

main84506-14011iTA40..RHD..ST..EUG198104-198107

W/CHOKE WARNING LAMP

main84506-14030iTA40..LHD..ST..EUG197908-198104

W/CHOKE WARNING LAMP

sub84506-14031

sub78311-12031

main84506-14031iTA40..LHD..ST..EUG198104-198107

W/CHOKE WARNING LAMP

main84506-14040iRA40,TA40..RHD..GT..EUG197908-198104

W/CHOKE WARNING LAMP

sub84506-14041

sub78311-12031

main84506-14041iRA40,TA40..RHD..GT..EUG198104-198107

W/CHOKE WARNING LAMP

main84506-14050iRA40,TA40..LHD..GT..EUG197908-198104

W/CHOKE WARNING LAMP

sub84506-14051

sub78311-12031

main84506-14051iRA40,TA40..LHD..GT..EUG198104-198107

W/CHOKE WARNING LAMP

78310AGROMMET, CHOKE CABLE

main90480-13055iTA40..B;RA40..GT,ST;TA40..RHD..(GT,ST);TA40..LHD..4F..ST..GEN;TA40..LB..LHD..GT..GEN;TA40..LHD..(GT,ST)..EUG;TA40..CP..LHD..5F..(GT,ST)..GEN197708-198107

78310CCLIP (FOR CHOKE CABLE)

main78312-12010iTA40..B;TA40..RHD;RA40..GT,ST;TA40..LHD..4F..GEN;TA40..LHD..GT..GEN;TA40..LHD..(GT,ST)..EUG;TA40..CP..LHD..5F..ST..GEN198104-198107

78311KNOB, CHOKE CONTROL CABLE

main78311-12030iTA40..B;TA40..LHD..4F..ST..GEN;TA40..LB..LHD..GT..GEN;TA40..RHD..(GT,ST)..GEN;TA40..CP..LHD..5F..(GT,ST)..GEN197908-198104

sub78311-19025

main78311-12031iRA40..GT..EUG198104-198107

main89482-20010iRA40..GT197708-197908

78311ANUT, CHOKE SHAFT SET

main90170-11003iTA40..(GT,ST)..EUG197708-198107

78375CLAMP, CHOKE ROD FLEXIBLE TUBE

main78375-14010iTA40..B;TA40..RHD..ST;TA40..LHD..ST..EUG;TA40..LHD..4F..ST..GEN;TA40..CP..LHD..5F..ST..GEN197708-198107

9020208028

main90202-08028

9024905001

main90249-05001

9046315617

main90463-15617

9050823003

main90508-23003

9161140812

main91611-40812

9161140814

main91611-40814

9165140612

main91651-40612

9165540616

main91655-40616

9165540630

main91655-40630

9331515012

main93315-15012

9461110800

main94611-10800

9538102015

main95381-02015

9616000400

main96160-00400

31 parts on this diagram · 6 diagrams in section
