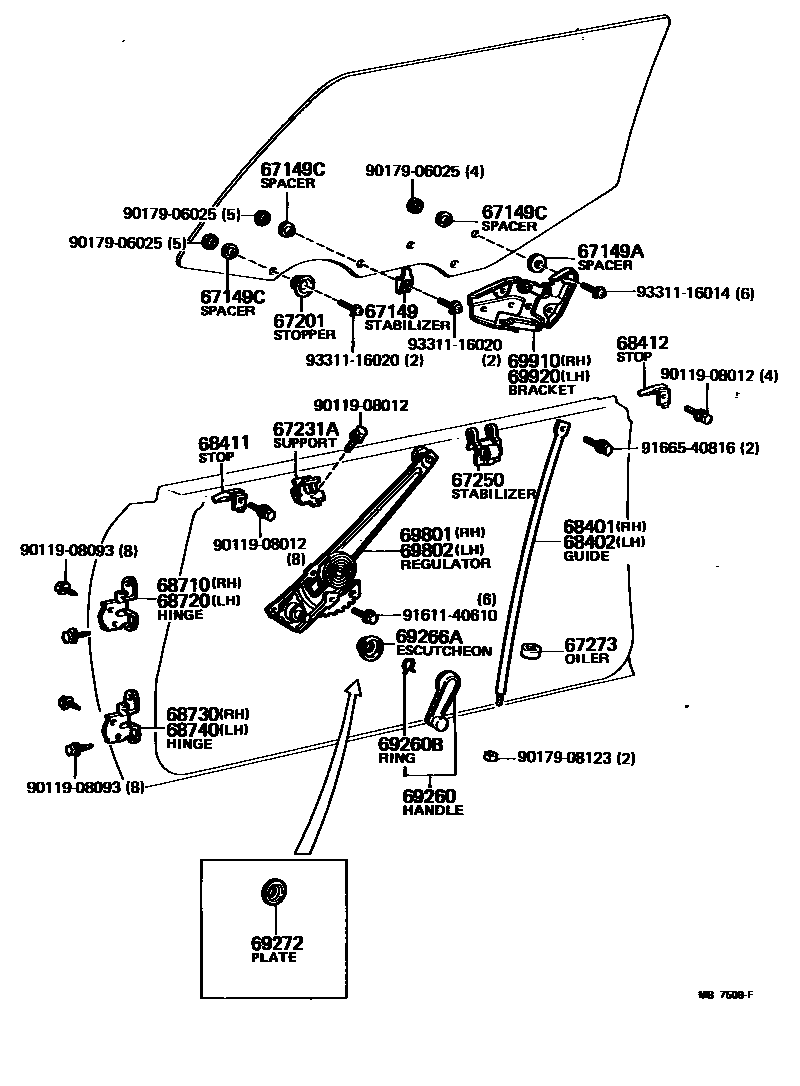

FRONT DOOR WINDOW REGULATOR & HINGE

67149STABILIZER, FRONT DOOR GLASS

main68149-14010×4iRA40,TA40197708-198107

67149ASPACER, FRONT DOOR GLASS, NO.1

main90202-08002×14iRA40,TA40197708-198107

67149CSPACER, FRONT DOOR GLASS, NO.2

main90209-08003×14iRA40,TA40197708-198107

67201STOPPER ASSY, DOOR GLASS(FOR FRONT DOOR)

main68147-14010×4iRA40,TA40197708-198107

67231ASUPPORT, FRONT DOOR TRIM

main67231-14010×4iRA40,TA40197708-198002

sub67231-95500

main67231-14020×4iRA40,TA40198002-198005

main67231-22020×4iRA40,TA40198005-198107

67250STABILIZER ASSY, FRONT DOOR GLASS

main67255-14010×4iRA40,TA40197808-198005

sub67255-14030

67273OILER, FRONT DOOR WINDOW BAR

main67271-95800×2iRA40,TA40197708-198107

68401GUIDE SUB-ASSY, FRONT DOOR WINDOW, RH

main67401-14060iTA40..RHD..5F..LT;TA40..5F..LT..EUG;TA40..LB..RHD..4F;RA40..RHD..GT..EUG;TA40..LB..RHD..ST..EUG;RA40..LB..LHD..3FC..EUG;RA40..CP..RHD..3FC..EUG;RA40..LB..LHD..5F..X197708-198107

68402GUIDE SUB-ASSY, FRONT DOOR WINDOW, LH

main67402-14070iTA40..RHD..5F..LT;TA40..5F..LT..EUG;TA40..LB..RHD..4F;RA40..RHD..GT..EUG;TA40..LB..RHD..ST..EUG;RA40..LB..LHD..3FC..EUG;RA40..CP..RHD..3FC..EUG;RA40..LB..LHD..5F..X197708-198107

68411STOPPER, DOOR WINDOW GLASS, UPPER FRONT

main67211-14010×2iTA40..RHD..5F..LT;TA40..5F..LT..EUG;TA40..LB..RHD..4F;RA40..RHD..GT..EUG;TA40..LB..RHD..ST..EUG;RA40..LB..LHD..3FC..EUG;RA40..CP..RHD..3FC..EUG;RA40..LB..LHD..5F..X197708-198107

68412STOPPER, DOOR WINDOW GLASS, UPPER REAR

main67211-14010iTA40..RHD..5F..LT;TA40..5F..LT..EUG;TA40..LB..RHD..4F;RA40..RHD..GT..EUG;TA40..LB..RHD..ST..EUG;RA40..LB..LHD..3FC..EUG;RA40..CP..RHD..3FC..EUG;RA40..LB..LHD..5F..X197708-198107

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-22030iRA40,TA40197708-198107

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-22020iRA40,TA40197708-198107

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-22030iRA40,TA40197708-198107

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-22030iRA40,TA40197708-198107

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-12010-04×2iRA40,TA40..LT197708-197711

BLUE,BLUE,TRIM8#

main69260-12010-11×2iRA40,TA40..LT197708-197711

BLACK,BLACK,TRIM2#

main69260-12010-16×2iRA40,TA40..LT197708-197711

LIGHT BROWN,BROWN,TRIM4#

main69260-22020-01×2iRA40,TA40197711-198107

BLACK,BLACK,TRIM2#

sub69260-14030

main69260-22020-04×2iRA40,TA40197711-198107

BLUE,BLUE,TRIM8#

sub69260-14030

main69260-22020-05×2iRA40,TA40197711-198107

BEIGE,BEIGE,TRIM4#

sub69260-14030

main69260-22020-06×2iRA40,TA40..GT,ST,XT197708-197711

LIGHT BROWN,BROWN,TRIM4#

sub69260-14030

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002×2iRA40,TA40..GT,ST,XT197708-197711

main90520-01274×2iRA40,TA40..LT197708-197711

69266AESCUTCHEON, DOOR REGULATOR HANDLE(FOR FRONT DOOR)

main69266-22010-01×2iRA40,TA40..LT197708-197711

BLACK,BLACK,TRIM2#

main69266-22010-04×2iRA40,TA40..LT197708-197711

BLUE,BLUE,TRIM8#

main69266-22010-16×2iRA40,TA40..LT197708-197711

LIGHT BROWN,BROWN,TRIM4#

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69272-30010×2iRA40,TA40..GT,ST,XT197708-197711

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69810-14060iRA40,TA40197708-198107

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69820-14060iRA40,TA40197708-198107

69910BRACKET ASSY, FRONT DOOR GLASS, RH

main69910-14010iRA40,TA40197708-198002

main69910-14011iRA40,TA40198002-198107

69920BRACKET ASSY, FRONT DOOR GLASS, LH

main69920-14010iRA40,TA40197708-198002

main69920-14011iRA40,TA40198002-198107

9011908012

main90119-08012

9011908093

main90119-08093

9017906025

main90179-06025

9017908123

main90179-08123

9161140610

main91611-40610

9166540816

main91665-40816

9331116014

main93311-16014

9331116020

main93311-16020

31 parts on this diagram · 1 diagram in section
