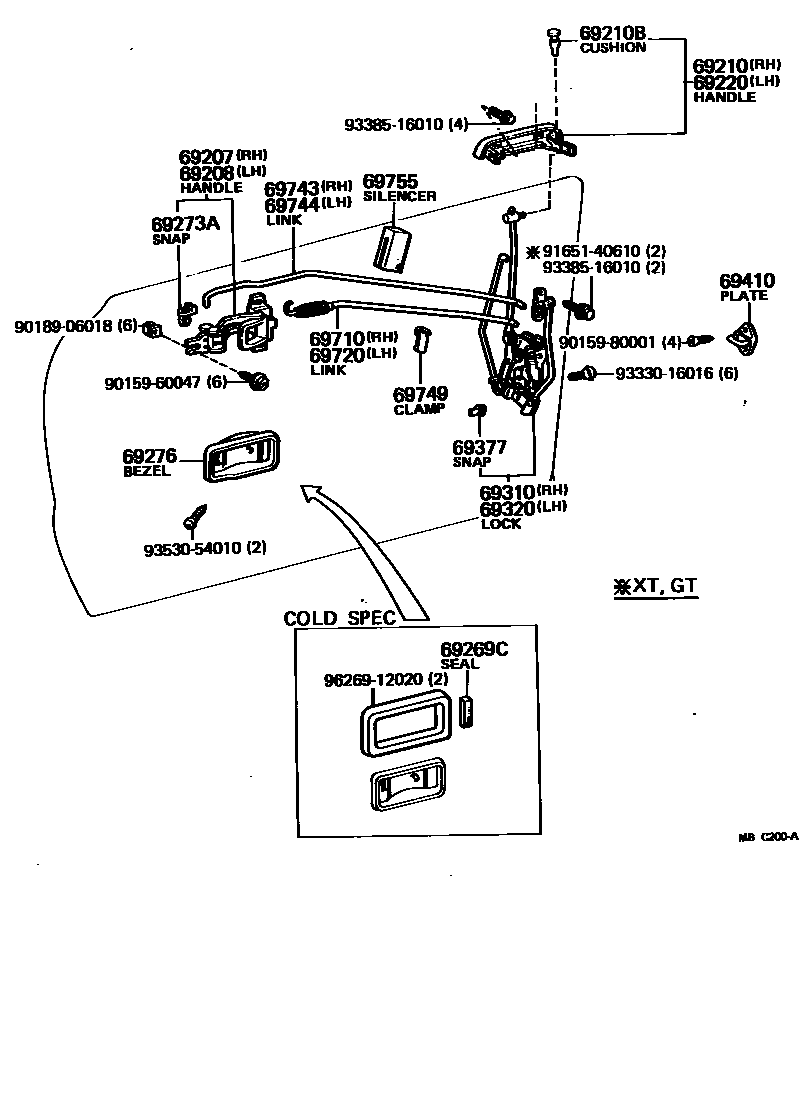

FRONT DOOR LOCK & HANDLE
69207HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69208HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
LIGHT BROWN,BROWN,TRIM4#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69269CSEAL, DOOR INSIDE HANDLE NO.2(FOR FRONT DOOR)
FOR ARCTIC
69273ASNAP, DOOR INSIDE HANDLE ROD(FOR FRONT DOOR)
69276BEZEL, FRONT DOOR INSIDE HANDLE
69310LOCK ASSY, FRONT DOOR, RH
69320LOCK ASSY, FRONT DOOR, LH
69377SNAP, FRONT DOOR LOCK CONTROL ROD
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH
69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH
69743LINK, FRONT DOOR LOCKING CONTROL, NO.1 RH
69744LINK, FRONT DOOR LOCKING CONTROL, NO.1 LH
69749CLAMP, FRONT DOOR LOCK LINK
9015960047
main90159-60047
9015980001
main90159-80001
9018906018
main90189-06018
9165140610
main91651-40610
9333016016
main93330-16016
9338516010
main93385-16010
9353054010
main93530-54010
9626912020
main96269-12020
26 parts on this diagram · 1 diagram in section
