DECK BOARD & DECK TRIM COVER
58400BELT ASSY, LUGGAGE HOLD, NO.1
64392BUSH, TONNEAU COVER SIDE HINGE
64397HOLDER, TONNEAU COVER SIDE, RH
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
LIGHT BROWN,BROWN,TRIM4#
64398HOLDER, TONNEAU COVER SIDE, LH
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
LIGHT BROWN,BROWN,TRIM4#
64709COVER SUB-ASSY, LOWER BACK PANEL
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
LIGHT BROWN,BROWN,TRIM4#
64709BCOVER, SERVICE HOLE, NO.1(FOR LOWER BACK PANEL COVER)
64709CCOVER, SERVICE HOLE, NO.2(FOR LOWER BACK PANEL COVER)
64709DCOVER, BACK DOOR STRIKER
64739COVER, DECK TRIM SIDE WASHER
64750PANEL ASSY, DECK SIDE TRIM, RH
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
LIGHT BROWN,BROWN,TRIM4#
64760PANEL ASSY, DECK SIDE TRIM, LH
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
LIGHT BROWN,BROWN,TRIM4#
64760ATRIM, JACK HOUSE OPENING, NO.1
main82817-12120iTA40..RHD..5F..LT;TA40..5F..LT..EUG;TA40..LB..RHD..4F;RA40..RHD..GT..EUG;TA40..LB..RHD..ST..EUG;RA40..LB..LHD..3FC..EUG;RA40..CP..RHD..3FC..EUG;RA40..LB..LHD..5F..X197711-197908
L=130
sub82817-12130
64766COVER SUB-ASSY, QUARTER TRIM JACK
64770DCOVER ASSY, SPARE WHEEL
main64770-14010iTA40..B;RA40..LB;TA40..LB..RHD;TA40..LB..LHD..EUG;TA40..LB..LHD..4F..GEN;TA40..LB..LHD..GT..GEN197708-198107
64910COVER ASSY, PARCEL
64910BHANGER, PARCEL COVER
9011906014
main90119-06014
9011906064
main90119-06064
9015940020
main90159-40020
9016740002
main90167-40002
9018304056
main90183-04056
9020205005
main90202-05005
9056006008
main90560-06008
9056006083
main90560-06083
9353054010
main93530-54010
9353054014
main93530-54014
9356054012
main93560-54012
9356054016
main93560-54016

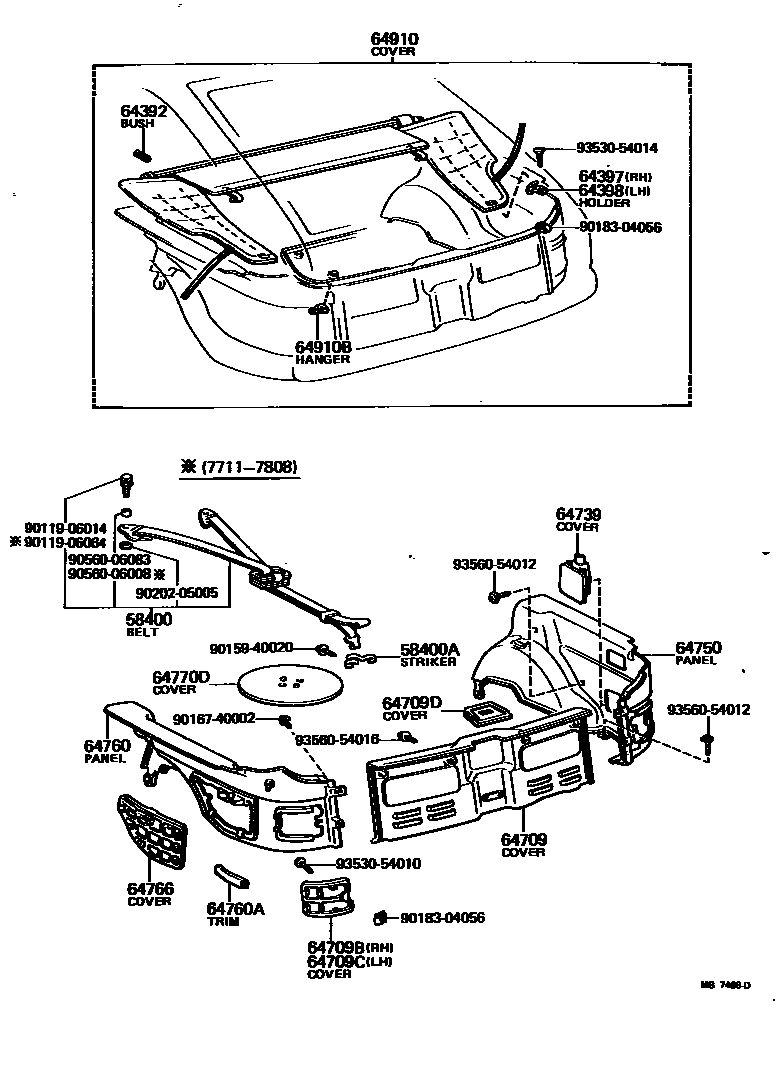

29 parts on this diagram · 3 diagrams in section
