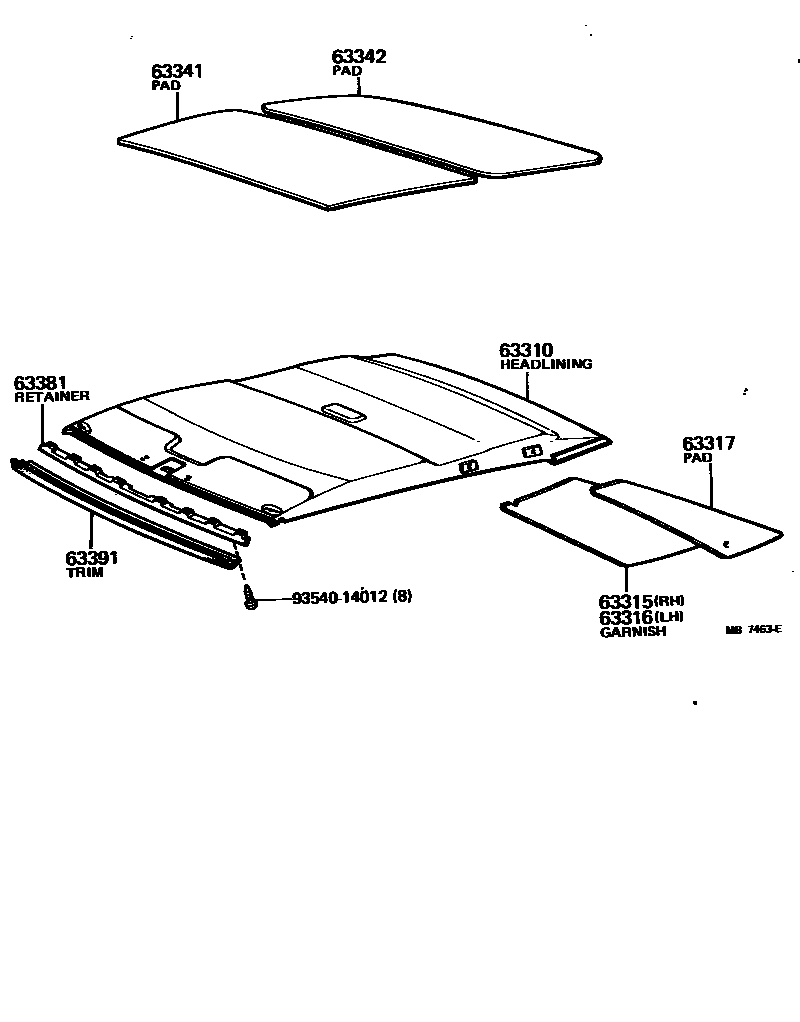

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1 0003 1 0004 1

63310HEADLINING ASSY, ROOF

main63310-14200-03iRA40,TA40..CP..(GT,LT,ST)197711-197808

W/SUN ROOF,GRAY,GRAY,TRIM2#

sub63310-14201

main63310-14200-04iRA40,TA40..CP..(GT,LT,ST)197711-197808

W/SUN ROOF,BLUE,BLUE,TRIM8#

sub63310-14201

main63310-14200-06iRA40,TA40..CP..(GT,LT,ST)197711-197808

W/SUN ROOF,LIGHT BROWN,BROWN,TRIM4#

sub63310-14201

main63310-14201-03iRA40,TA40..CP..(GT,LT,ST)197808-198107

W/SUN ROOF,GRAY,GRAY,TRIM2#

sub63310-14201

main63310-14201-04iRA40,TA40..CP..(GT,LT,ST)197808-198107

W/SUN ROOF,BLUE,BLUE,TRIM8#

sub63310-14201

main63310-14201-06iRA40,TA40..CP..(GT,LT,ST)197808-198107

W/SUN ROOF,LIGHT BROWN,BROWN,TRIM4#

sub63310-14201

main63310-14210-03iRA40..CP..XT197711-198107

W/SUN ROOF,GRAY,GRAY,TRIM2#

sub63310-14210

main63310-14210-04iRA40..CP..XT197711-198107

W/SUN ROOF,BLUE,BLUE,TRIM8#

sub63310-14210

main63310-14210-06iRA40..CP..XT197711-198107

W/SUN ROOF,LIGHT BROWN,BROWN,TRIM4#

sub63310-14210

main63310-14220-03iRA40,TA40..CP..(LT,ST)197708-197805

GRAY,GRAY,TRIM2#

sub63310-14221

main63310-14220-04iRA40,TA40..CP..(LT,ST)197708-197805

BLUE,BLUE,TRIM8#

sub63310-14221

main63310-14220-06iRA40,TA40..CP..(LT,ST)197708-197805

LIGHT BROWN,BROWN,TRIM4#

sub63310-14221

main63310-14221-03iRA40,TA40..CP..(LT,ST)197805-198107

GRAY,GRAY,TRIM2#

sub63310-14330

main63310-14221-04iRA40,TA40..CP..(LT,ST)197805-198107

BLUE,BLUE,TRIM8#

sub63310-14330

main63310-14221-06iRA40,TA40..CP..(LT,ST)197805-198107

LIGHT BROWN,BROWN,TRIM4#

sub63310-14330

main63310-14240-03iTA40..CP..GT197708-197808

GRAY,GRAY,TRIM2#

sub63310-14242

sub63310-14241

main63310-14240-04iTA40..CP..GT197708-197808

BLUE,BLUE,TRIM8#

sub63310-14242

sub63310-14241

main63310-14240-06iTA40..CP..GT197708-197808

LIGHT BROWN,BROWN,TRIM4#

sub63310-14242

sub63310-14241

main63310-14241-03iTA40..CP..GT197808-197908

GRAY,GRAY,TRIM2#

sub63310-14242

main63310-14241-04iTA40..CP..GT197808-197908

BLUE,BLUE,TRIM8#

sub63310-14242

main63310-14241-06iTA40..CP..GT197808-197908

LIGHT BROWN,BROWN,TRIM4#

sub63310-14242

main63310-14242-03iTA40..CP..GT197908-198107

GRAY,GRAY,TRIM2#

sub63310-14242

main63310-14242-04iTA40..CP..GT197908-198107

BLUE,BLUE,TRIM8#

sub63310-14242

main63310-14242-06iTA40..CP..GT197908-198107

LIGHT BROWN,BROWN,TRIM4#

sub63310-14242

main63310-14250-03iRA40..CP..XT197708-197908

GRAY,GRAY,TRIM2#

sub63310-14251

main63310-14250-04iRA40..CP..XT197708-197908

BLUE,BLUE,TRIM8#

sub63310-14251

main63310-14250-06iRA40..CP..XT197708-197908

LIGHT BROWN,BROWN,TRIM4#

sub63310-14251

main63310-14251-03iRA40..CP..XT197908-198107

GRAY,GRAY,TRIM2#

sub63310-14251

main63310-14251-04iRA40..CP..XT197908-198107

BLUE,BLUE,TRIM8#

sub63310-14251

main63310-14251-06iRA40..CP..XT197908-198107

LIGHT BROWN,BROWN,TRIM4#

sub63310-14251

main63310-14270-03iTA40..RHD..5F..LT;TA40..5F..LT..EUG;TA40..LB..RHD..4F;RA40..RHD..GT..EUG;TA40..LB..RHD..ST..EUG;RA40..LB..LHD..3FC..EUG;RA40..CP..RHD..3FC..EUG;RA40..LB..LHD..5F..X197708-197808

GRAY,GRAY,TRIM2#

sub63310-14272

sub63310-14271

main63310-14270-04iTA40..RHD..5F..LT;TA40..5F..LT..EUG;TA40..LB..RHD..4F;RA40..RHD..GT..EUG;TA40..LB..RHD..ST..EUG;RA40..LB..LHD..3FC..EUG;RA40..CP..RHD..3FC..EUG;RA40..LB..LHD..5F..X197708-197808

BLUE,BLUE,TRIM8#

sub63310-14272

sub63310-14271

main63310-14270-06iTA40..RHD..5F..LT;TA40..5F..LT..EUG;TA40..LB..RHD..4F;RA40..RHD..GT..EUG;TA40..LB..RHD..ST..EUG;RA40..LB..LHD..3FC..EUG;RA40..CP..RHD..3FC..EUG;RA40..LB..LHD..5F..X197708-197808

LIGHT BROWN,BROWN,TRIM4#

sub63310-14272

sub63310-14271

main63310-14271-03iTA40..RHD..5F..LT;TA40..5F..LT..EUG;TA40..LB..RHD..4F;RA40..RHD..GT..EUG;TA40..LB..RHD..ST..EUG;RA40..LB..LHD..3FC..EUG;RA40..CP..RHD..3FC..EUG;RA40..LB..LHD..5F..X197808-197908

GRAY,GRAY,TRIM2#

sub63310-14272

main63310-14271-04iTA40..RHD..5F..LT;TA40..5F..LT..EUG;TA40..LB..RHD..4F;RA40..RHD..GT..EUG;TA40..LB..RHD..ST..EUG;RA40..LB..LHD..3FC..EUG;RA40..CP..RHD..3FC..EUG;RA40..LB..LHD..5F..X197808-197908

BLUE,BLUE,TRIM8#

sub63310-14272

main63310-14271-06iTA40..RHD..5F..LT;TA40..5F..LT..EUG;TA40..LB..RHD..4F;RA40..RHD..GT..EUG;TA40..LB..RHD..ST..EUG;RA40..LB..LHD..3FC..EUG;RA40..CP..RHD..3FC..EUG;RA40..LB..LHD..5F..X197808-197908

LIGHT BROWN,BROWN,TRIM4#

sub63310-14272

main63310-14272-03iTA40..RHD..5F..LT;TA40..5F..LT..EUG;TA40..LB..RHD..4F;RA40..RHD..GT..EUG;RA40..CP..RHD..3FC..EUG;RA40..LB..LHD..3FC..EUG;RA40..LB..LHD..5F..XT..GEN;TA40..CP..LHD..5197908-198107

GRAY,GRAY,TRIM2#

sub63310-14272

main63310-14272-04iTA40..RHD..5F..LT;TA40..5F..LT..EUG;TA40..LB..RHD..4F;RA40..RHD..GT..EUG;RA40..CP..RHD..3FC..EUG;RA40..LB..LHD..3FC..EUG;RA40..LB..LHD..5F..XT..GEN;TA40..CP..LHD..5197908-198107

BLUE,BLUE,TRIM8#

sub63310-14272

main63310-14272-06iTA40..RHD..5F..LT;TA40..5F..LT..EUG;TA40..LB..RHD..4F;RA40..RHD..GT..EUG;RA40..CP..RHD..3FC..EUG;RA40..LB..LHD..3FC..EUG;RA40..LB..LHD..5F..XT..GEN;TA40..CP..LHD..5197908-198107

LIGHT BROWN,BROWN,TRIM4#

sub63310-14272

main63310-14280-03iRA40..LB..XT197708-197908

GRAY,GRAY,TRIM2#

sub63310-14281

main63310-14280-04iRA40..LB..XT197708-197908

BLUE,BLUE,TRIM8#

sub63310-14281

main63310-14280-06iRA40..LB..XT197708-197908

LIGHT BROWN,BROWN,TRIM4#

sub63310-14281

main63310-14281-03iRA40..LB..XT197908-198107

GRAY,GRAY,TRIM2#

sub63310-14281

main63310-14281-04iRA40..LB..XT197908-198107

BLUE,BLUE,TRIM8#

sub63310-14281

main63310-14281-06iRA40..LB..XT197908-198107

LIGHT BROWN,BROWN,TRIM4#

sub63310-14281

main63310-14290-03iTA40..RHD..5F..LT;TA40..5F..LT..EUG;TA40..LB..RHD..4F;RA40..RHD..GT..EUG;TA40..LB..RHD..ST..EUG;RA40..LB..LHD..3FC..EUG;RA40..CP..RHD..3FC..EUG;RA40..LB..LHD..5F..X197711-197808

W/SUN ROOF,GRAY,GRAY,TRIM2#

sub63310-14291

sub63310-14312

main63310-14290-04iTA40..RHD..5F..LT;TA40..5F..LT..EUG;TA40..LB..RHD..4F;RA40..RHD..GT..EUG;TA40..LB..RHD..ST..EUG;RA40..LB..LHD..3FC..EUG;RA40..CP..RHD..3FC..EUG;RA40..LB..LHD..5F..X197711-197808

W/SUN ROOF,BLUE,BLUE,TRIM8#

sub63310-14291

sub63310-14312

main63310-14290-06iTA40..RHD..5F..LT;TA40..5F..LT..EUG;TA40..LB..RHD..4F;RA40..RHD..GT..EUG;TA40..LB..RHD..ST..EUG;RA40..LB..LHD..3FC..EUG;RA40..CP..RHD..3FC..EUG;RA40..LB..LHD..5F..X197711-197808

W/SUN ROOF,LIGHT BROWN,BROWN,TRIM4#

sub63310-14291

sub63310-14312

main63310-14291-03iTA40..RHD..5F..LT;TA40..5F..LT..EUG;TA40..LB..RHD..4F;RA40..RHD..GT..EUG;TA40..LB..RHD..ST..EUG;RA40..LB..LHD..3FC..EUG;RA40..CP..RHD..3FC..EUG;RA40..LB..LHD..5F..X197808-198107

W/SUN ROOF,GRAY,GRAY,TRIM2#

sub63310-14291

main63310-14291-04iTA40..RHD..5F..LT;TA40..5F..LT..EUG;TA40..LB..RHD..4F;RA40..RHD..GT..EUG;TA40..LB..RHD..ST..EUG;RA40..LB..LHD..3FC..EUG;RA40..CP..RHD..3FC..EUG;RA40..LB..LHD..5F..X197808-198107

W/SUN ROOF,BLUE,BLUE,TRIM8#

sub63310-14291

main63310-14291-06iTA40..RHD..5F..LT;TA40..5F..LT..EUG;TA40..LB..RHD..4F;RA40..RHD..GT..EUG;TA40..LB..RHD..ST..EUG;RA40..LB..LHD..3FC..EUG;RA40..CP..RHD..3FC..EUG;RA40..LB..LHD..5F..X197808-198107

W/SUN ROOF,LIGHT BROWN,BROWN,TRIM4#

sub63310-14291

main63310-14300-03iRA40..LB..XT197708-198107

W/SUN ROOF,GRAY,GRAY,TRIM2#

sub63310-14300

main63310-14300-04iRA40..LB..XT197708-198107

W/SUN ROOF,BLUE,BLUE,TRIM8#

sub63310-14300

main63310-14300-06iRA40..LB..XT197708-198107

W/SUN ROOF,LIGHT BROWN,BROWN,TRIM4#

sub63310-14300

63315GARNISH, ROOF HEADLINING, REAR RH

main62471-14060-03iRA40,TA40..CP..(GT,LT,ST)197711-197908

W/SUN ROOF,GRAY,GRAY,TRIM2#

sub62471-14070

main62471-14060-03iTA40..CP..GT197708-197908

GRAY,GRAY,TRIM2#

sub62471-14070

main62471-14060-04iTA40..CP..GT197708-197908

BLUE,BLUE,TRIM8#

sub62471-14070

main62471-14060-04iRA40,TA40..CP..(GT,LT,ST)197711-197908

W/SUN ROOF,BLUE,BLUE,TRIM8#

sub62471-14070

main62471-14060-06iRA40,TA40..CP..(GT,LT,ST)197711-197908

W/SUN ROOF,LIGHT BROWN,BROWN,TRIM4#

sub62471-14070

main62471-14060-06iTA40..CP..GT197708-197908

LIGHT BROWN,BROWN,TRIM4#

sub62471-14070

main62471-14070-03iRA40,TA40..CP..(GT,LT,ST)197908-198107

GRAY,GRAY,TRIM2#

main62471-14070-04iRA40,TA40..CP..(GT,LT,ST)197908-198107

BLUE,BLUE,TRIM8#

main62471-14070-06iRA40,TA40..CP..(GT,LT,ST)197908-198107

LIGHT BROWN,BROWN,TRIM4#

main62471-14090-03iRA40..CP..XT197708-198107

GRAY,GRAY,TRIM2#

main62471-14090-04iRA40..CP..XT197708-198107

BLUE,BLUE,TRIM8#

main62471-14090-06iRA40..CP..XT197708-198107

LIGHT BROWN,BROWN,TRIM4#

63316GARNISH, ROOF HEADLINING, REAR LH

main62472-14030-03iRA40,TA40..CP..(GT,LT,ST)197908-198107

GRAY,GRAY,TRIM2#

main62472-14030-04iRA40,TA40..CP..(GT,LT,ST)197908-198107

BLUE,BLUE,TRIM8#

main62472-14030-06iRA40,TA40..CP..(GT,LT,ST)197908-198107

LIGHT BROWN,BROWN,TRIM4#

main62472-14050-03iRA40..CP..XT197708-198107

GRAY,GRAY,TRIM2#

main62472-14050-04iRA40..CP..XT197708-198107

BLUE,BLUE,TRIM8#

main62472-14050-06iRA40..CP..XT197708-198107

LIGHT BROWN,BROWN,TRIM4#

main62472-14080-03iTA40..CP..GT197708-197906

GRAY,GRAY,TRIM2#

sub62472-14030

main62472-14080-03iRA40,TA40..CP..(GT,LT,ST)197711-197908

W/SUN ROOF,GRAY,GRAY,TRIM2#

sub62472-14030

main62472-14080-04iRA40,TA40..CP..(GT,LT,ST)197711-197908

W/SUN ROOF,BLUE,BLUE,TRIM8#

sub62472-14030

main62472-14080-04iTA40..CP..GT197708-197906

BLUE,BLUE,TRIM8#

sub62472-14030

main62472-14080-06iTA40..CP..GT197708-197908

LIGHT BROWN,BROWN,TRIM4#

sub62472-14030

main62472-14080-06iRA40,TA40..CP..(GT,LT,ST)197711-197908

W/SUN ROOF,LIGHT BROWN,BROWN,TRIM4#

sub62472-14030

63317PAD, ROOF HEADLINING REAR GARNISH

main62475-14020iRA40,TA40..CP197708-198107

63341PAD, ROOF SILENCER, NO.1

main63341-14020iRA40,TA40..CP..(LT,ST)197708-198107

sub63341-14030

63342PAD, ROOF SILENCER, NO.2

main63343-14020iRA40,TA40..CP..(LT,ST)197708-198107

sub63341-22H92

63381RETAINER, HEADLINING, FRONT

main63381-14020iRA40,TA40197708-198107

63391TRIM, ROOF HEADLINING, FRONT

main63391-14040-01iRA40,TA40197708-198107

BLACK,BLACK,TRIM2#

sub63391-28010

main63391-14040-04iRA40,TA40197708-197908

BLUE,BLUE,TRIM8#

sub63391-28010

main63391-14040-06iRA40,TA40197708-198107

LIGHT BROWN,BROWN,TRIM4#

sub63391-28010

main63391-14040-14iRA40,TA40197908-198107

BLUE,BLUE,TRIM8#

sub63391-28010

9354014012

main93540-14012

9 parts on this diagram · 4 diagrams in section
