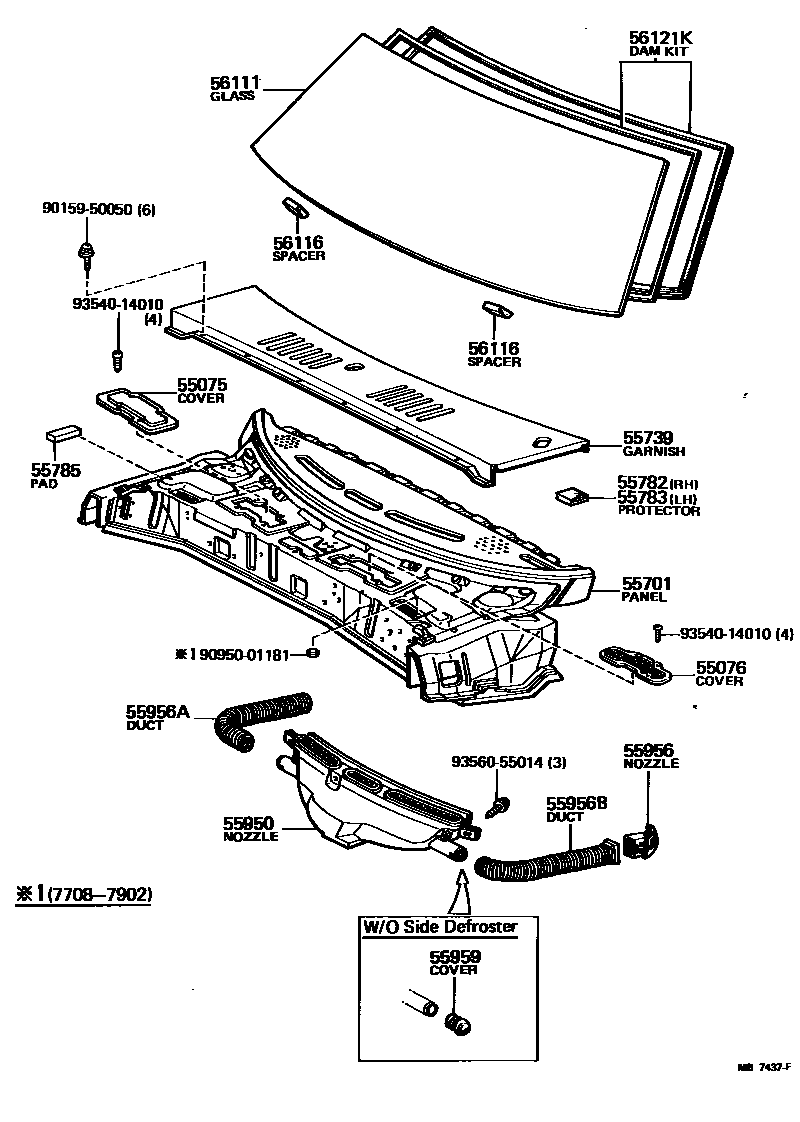

COWL PANEL & WINDSHIELD GLASS

55075COVER SUB-ASSY, HEATER AIR DUCT HOLE

main55077-14010iRA40,TA40197708-198107

55076COVER, HEATER AIR DUCT HOLE

main55792-14010iRA40,TA40197809-198107

DRIVER SIDE

55701PANEL SUB-ASSY, COWL

main55700-14240iTA40..RHD197708-198107

sub55700-14630

main55700-14250iRA40..RHD..GT197708-197808

sub55700-14251

main55700-14251iRA40..RHD..GT197808-198107

sub55700-14630

main55700-14260iRA40..RHD..(LT,ST,XT)197708-198107

sub55700-14630

main55700-14270iTA40..LHD197708-198008

sub55700-14670

sub90950-01006

sub90950-01065

main55700-14272iTA40..LHD198008-198107

sub55700-14270

sub55376-14010

sub55377-14010

main55700-14290iRA40..LHD..(ST,XT)197708-198008

sub55700-14670

sub90950-01006

sub90950-01065

main55700-14292iRA40..LHD..(ST,XT)198008-198107

sub55700-14290

sub55376-14010

sub55377-14010

main55700-14310iRA40..LHD..GT197708-197808

sub55700-14311

main55700-14311iRA40..LHD..GT197808-198008

sub55700-14312

main55700-14333iRA40..LHD..GT198008-198107

sub55700-14680

sub90950-01006

sub90950-01065

55739GARNISH, COWL VENTILATOR

main55781-14070iRA40,TA40..RHD197708-197908

main55781-14071iRA40,TA40..RHD197908-198107

main55781-14080iRA40,TA40..LHD197708-197908

main55781-14081iRA40,TA40..LHD197908-198107

55782PROTECTOR, COWL TOP VENTILATOR LOUVER, RH

main55788-14020iRA40,TA40197708-198107

55783PROTECTOR, COWL TOP VENTILATOR LOUVER, LH

main55788-14020iRA40,TA40197708-198107

55785PAD, COWL OUTER PANEL, NO.2

main55785-14020iRA40,TA40197805-197808

55950NOZZLE ASSY, DEFROSTER

main55950-14070iRA40,TA40..RHD197708-198107

main55950-14080iRA40,TA40..LHD197708-198107

55956NOZZLE, SIDE DEFROSTER

main55961-14010-01iRA40,TA40..RHD197708-198107

BLACK,BLACK,TRIM2#

sub55961-14010

main55961-14010-04iRA40,TA40..RHD197708-198107

BLUE,BLUE,TRIM8#

sub55961-14010

main55961-14010-06iRA40,TA40..RHD197708-197908

LIGHT BROWN,BROWN,TRIM4#

sub55961-14010

main55961-14010-16iRA40,TA40..RHD197908-198107

LIGHT BROWN,BROWN,TRIM4#

sub55961-14010

main55961-14020-01iRA40,TA40..LHD197708-198107

BLACK,BLACK,TRIM2#

sub55961-14020

main55961-14020-04iRA40,TA40..LHD197708-198107

BLUE,BLUE,TRIM8#

sub55961-14020

main55961-14020-06iRA40,TA40..LHD197708-197908

LIGHT BROWN,BROWN,TRIM4#

sub55961-14020

main55961-14020-16iRA40,TA40..LHD197908-198107

LIGHT BROWN,BROWN,TRIM4#

sub55961-14020

55956ADUCT, SIDE DEFROSTER NOZZLE, NO.1

main55971-14020iRA40,TA40197708-198107

55956BDUCT, SIDE DEFROSTER NOZZLE, NO.2

main55972-14020iRA40,TA40197708-198107

55959COVER, DEFROSTER NOZZLE OPENING, NO.1

main55959-14010iRA40,TA40..GEN197708-198107

56111GLASS, WINDSHIELD

main56111-14160iRA40,TA40..EUG197708-198107

*TZT,T=5.0

sub56111-14170

main56111-14170iRA40,TA40..EUR,GEN197708-197908

*TL,T=5.7

sub56111-14171

main56111-14171iRA40,TA40..EUR,GEN197908-198107

*TL,T=5.3

sub56111-14242

main56111-14180iRA40..ARL197708-197908

*LAM,T=5.7

sub56111-14182

main56111-14181iRA40..ARL197908-198008

*LAM,T=5.3,W/SUN SHADE

sub56111-14182

main56111-14182iRA40..ARL198008-198107

*LAM,T=5.3,W/SUN SHADE

sub56111-14242

main56111-14240iRA40,TA40..EUR,GEN197708-197908

*TL,T=5.7,W/SUN SHADE

sub56111-14241

main56111-14241iRA40,TA40..EUR,GEN197908-197911

*TL,T=5.3,W/SUN SHADE,BLUE

sub56111-14242

main56111-14242iRA40,TA40..EUR,GEN197911-198107

*TL,T=5.3,W/SUN SHADE,GREEN

56116SPACER, WINDSHIELD GLASS

main56116-14020iRA40,TA40197708-198107

56121KDAM KIT, WINDSHIELD GLASS

main04562-14010iRA40,TA40197708-198107

sub04562-30040

9015950050

main90159-50050

9095001181

main90950-01181

9354014010

main93540-14010

9356055014

main93560-55014

19 parts on this diagram · 1 diagram in section
