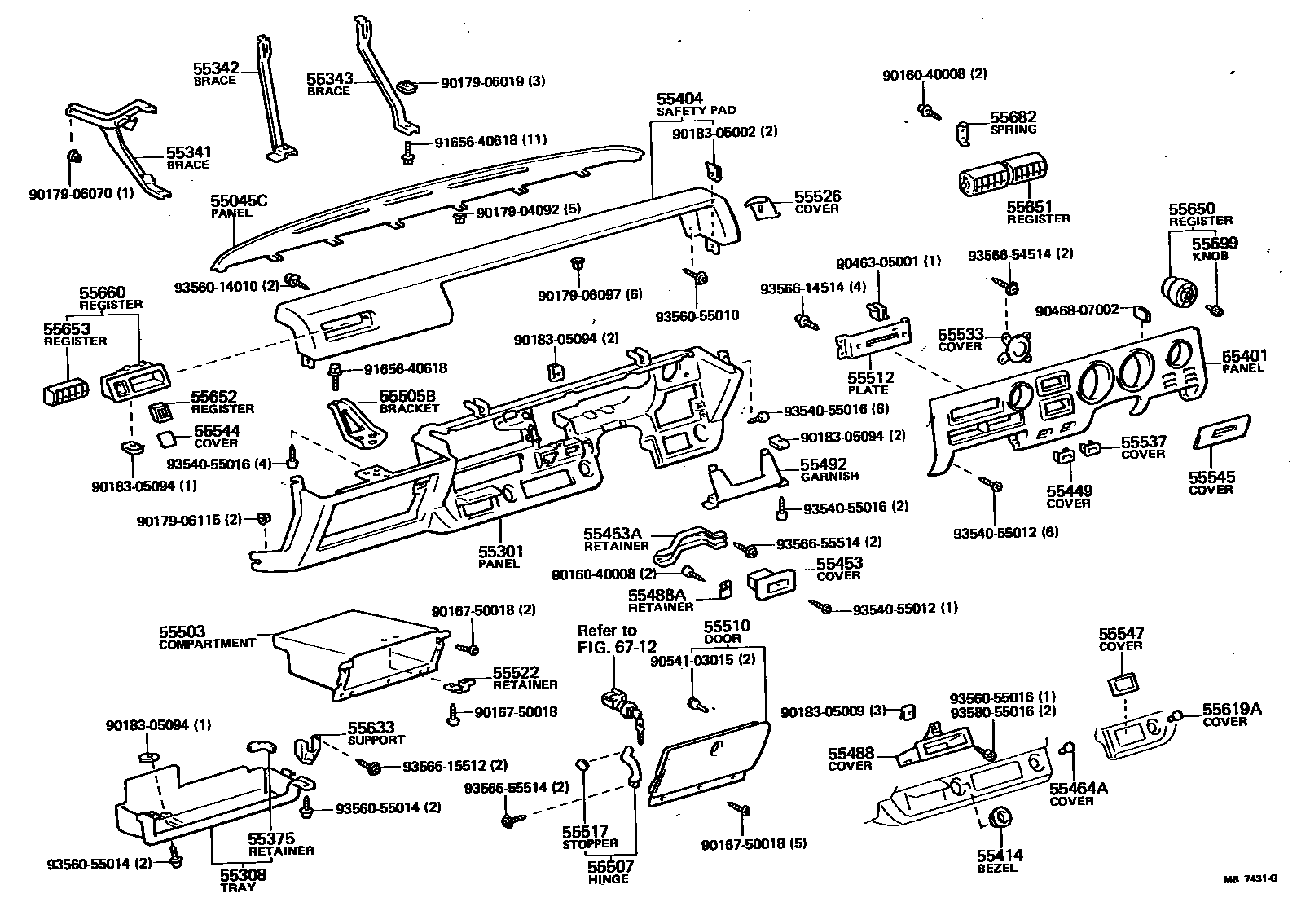

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1

55045CPANEL SUB-ASSY, INSTRUMENT PANEL FINISH, UPPER

main55044-14010-01iRA40,TA40197804-198008

BLACK,BLACK,TRIM2#

main55044-14010-04iRA40,TA40197804-198008

BLUE,BLUE,TRIM8#

main55044-14010-06iRA40,TA40197804-198008

LIGHT BROWN,BROWN,TRIM4#

main55044-14011-01iRA40,TA40198008-198107

BLACK,BLACK,TRIM2#

main55044-14011-04iRA40,TA40198008-198107

BLUE,BLUE,TRIM8#

main55044-14011-06iRA40,TA40198008-198107

LIGHT BROWN,BROWN,TRIM4#

55301PANEL SUB-ASSY, INSTRUMENT

main55312-14030-01iRA40,TA40..RHD197708-198107

BLACK,BLACK,TRIM2#

main55312-14030-04iRA40,TA40..RHD197708-198107

BLUE,BLUE,TRIM8#

main55312-14030-06iRA40,TA40..RHD197708-197908

LIGHT BROWN,BROWN,TRIM4#

main55312-14030-16iRA40,TA40..RHD197908-198107

LIGHT BROWN,BROWN,TRIM4#

main55312-14040-01iRA40,TA40..LHD197708-198003

BLACK,BLACK,TRIM2#

sub90183-05103

sub91651-40612

sub93540-55016

main55312-14040-04iRA40,TA40..LHD197708-198003

BLUE,BLUE,TRIM8#

sub90183-05103

sub91651-40612

sub93540-55016

main55312-14040-06iRA40,TA40..LHD197708-197908

LIGHT BROWN,BROWN,TRIM4#

sub90183-05103

sub91651-40612

sub93540-55016

main55312-14040-16iRA40,TA40..LHD197908-198003

LIGHT BROWN,BROWN,TRIM4#

sub90183-05103

sub91651-40612

sub93540-55016

main55312-14041-01iRA40,TA40..LHD198003-198107

BLACK,BLACK,TRIM2#

main55312-14041-04iRA40,TA40..LHD198003-198107

BLUE,BLUE,TRIM8#

main55312-14041-06iRA40,TA40..LHD198003-198107

LIGHT BROWN,BROWN,TRIM4#

55308TRAY SUB-ASSY, INSTRUMENT PANEL UNDER

main55601-14090-01iRA40,TA40..RHD197708-198107

BLACK,BLACK,TRIM2#

main55601-14090-04iRA40,TA40..RHD197708-198107

BLUE,BLUE,TRIM8#

main55601-14090-06iRA40,TA40..RHD197708-198107

LIGHT BROWN,BROWN,TRIM4#

main55601-14100-01iRA40,TA40..RHD..(ST,XT)..(EUR,GEN)197708-198107

W/COOLER,BLACK,BLACK,TRIM2#

main55601-14100-04iRA40,TA40..RHD..(ST,XT)..(EUR,GEN)197708-198107

W/COOLER,BLUE,BLUE,TRIM8#

main55601-14100-06iRA40,TA40..RHD..(ST,XT)..(EUR,GEN)197708-198107

W/COOLER,LIGHT BROWN,BROWN,TRIM4#

main55601-14130-01iRA40,TA40..LHD197708-198107

BLACK,BLACK,TRIM2#

main55601-14130-04iRA40,TA40..LHD197708-198107

BLUE,BLUE,TRIM8#

main55601-14130-06iRA40,TA40..LHD197708-198107

LIGHT BROWN,BROWN,TRIM4#

main55601-14140-01iRA40,TA40..LHD..EUG197708-198107

W/COOLER,BLACK,BLACK,TRIM2#

main55601-14140-04iRA40,TA40..LHD..EUG197708-198107

W/COOLER,BLUE,BLUE,TRIM8#

main55601-14140-06iRA40,TA40..LHD..EUG197708-198107

W/COOLER,LIGHT BROWN,BROWN,TRIM4#

55341BRACE, INSTRUMENT PANEL, NO.1

main55306-14010iRA40,TA40..RHD197708-198107

main55306-14020iRA40,TA40..LHD197708-198107

55342BRACE, INSTRUMENT PANEL, NO.2

main55307-14050iRA40,TA40..RHD197708-198107

main55307-14060iRA40,TA40..LHD197708-198107

55343BRACE, INSTRUMENT PANEL, NO.3

main55341-14040iRA40,TA40..RHD197708-198107

main55342-14030iRA40,TA40..LHD197708-198107

55375RETAINER, INSTRUMENT PANEL UNDER TRAY, UPPER

main55375-12010×2iRA40,TA40197708-198107

55401PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH

main55404-14200iRA40,TA40..RHD..LT197708-198107

main55404-14210iRA40,TA40..RHD..(ST,XT)197708-198107

main55404-14220iRA40,TA40..RHD..GT197708-197807

main55404-14221iRA40,TA40..RHD..GT197807-198107

main55404-14230iTA40..LHD..LT197708-197908

main55404-14240iRA40,TA40..LHD..(ST,XT)197708-197908

main55404-14250iRA40,TA40..LHD..GT197708-197807

main55404-14251iRA40,TA40..LHD..GT197807-197908

main55404-14300iTA40..RHD..ST..EUG197908-198107

W/TILT STEERING

main55404-14311iRA40,TA40..RHD..GT197908-198107

W/TILT STEERING

main55404-14390iTA40..LHD..LT197908-198107

main55404-14400iRA40,TA40..LHD..(ST,XT)197908-198107

main55404-14410iRA40,TA40..LHD..GT197908-198107

main55404-14420iTA40..LHD..ST..EUG197908-198107

W/TILT STEERING

main55404-14430iRA40,TA40..LHD..GT197908-198107

W/TILT STEERING

55404SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER

main55401-14280-01iRA40,TA40..RHD197708-198107

BLACK,BLACK,TRIM2#

main55401-14280-04iRA40,TA40..RHD197708-198107

BLUE,BLUE,TRIM8#

main55401-14280-06iRA40,TA40..RHD197708-197908

LIGHT BROWN,BROWN,TRIM4#

main55401-14280-16iRA40,TA40..RHD197908-198107

LIGHT BROWN,BROWN,TRIM4#

main55401-14300-01iRA40,TA40..LHD197708-198107

BLACK,BLACK,TRIM2#

main55401-14300-04iRA40,TA40..LHD197708-198107

BLUE,BLUE,TRIM8#

main55401-14300-06iRA40,TA40..LHD197708-197908

LIGHT BROWN,BROWN,TRIM4#

main55401-14300-16iRA40,TA40..LHD197908-198107

LIGHT BROWN,BROWN,TRIM4#

55414BEZEL, CIGAR LIGHTER HOLE

main55477-14040iRA40,TA40197708-198107

55449COVER, COOLER SWITCH HOLE

main55538-14010iRA40,TA40197708-198107

55453COVER, RADIO TUNER OPENING

main55522-14030iRA40,TA40..EUR,GEN197708-197908

main55522-14050iRA40,TA40..LHD197908-198107

main55522-14060iRA40,TA40..GT,XT197908-198107

W/TILT STEERING

55453ARETAINER, RADIO TUNER OPENING, NO.1

main55417-14020iRA40,TA40..EUR,GEN197708-198107

55464ACOVER, CHOKE KNOB HOLE

main55464-14010iRA40,TA40..LT,XT197708-198107

W/O CHOKEOR RR WIPER

55488COVER, STEREO OPENING

main55521-14030iRA40,TA40197708-198107

55488ARETAINER, STEREO OPENING, NO.1

main55475-87101×2iRA40,TA40..EUR,GEN197708-197908

55492GARNISH OR SAFETY PAD, LOWER, RH

main55432-14070-01iRA40,TA40197708-197908

BLACK,BLACK,TRIM2#

main55432-14070-04iRA40,TA40197708-197908

BLUE,BLUE,TRIM8#

main55432-14070-06iRA40,TA40197708-197908

LIGHT BROWN,BROWN,TRIM4#

main55432-14080-01iRA40,TA40..GT,XT197908-198107

W/TILT STEERING,BLACK,BLACK,TRIM2#

main55432-14080-04iRA40,TA40..GT,XT197908-198107

W/TILT STEERING,BLUE,BLUE,TRIM8#

main55432-14080-16iRA40,TA40..GT,XT197908-198107

W/TILT STEERING,LIGHT BROWN,BROWN,TRIM4#

main55432-14110-01iRA40,TA40197908-198107

BLACK,BLACK,TRIM2#

main55432-14110-04iRA40,TA40197908-198107

BLUE,BLUE,TRIM8#

main55432-14110-06iRA40,TA40197908-198107

LIGHT BROWN,BROWN,TRIM4#

55503COMPARTMENT SUB-ASSY, GLOVE

main55581-14140iRA40,TA40..RHD197708-198107

main55581-14150iRA40,TA40..LHD197708-198107

55505BBRACKET, GLOVE COMPARTMENT DOOR LOCK MOUNTING

main55378-14040iRA40,TA40197708-198107

55507HINGE SUB-ASSY, GLOVE COMPARTMENT DOOR

main55556-14060iRA40,TA40197708-198107

55510DOOR ASSY, GLOVE COMPARTMENT

main55550-14090-01iRA40,TA40197708-198107

BLACK,BLACK,TRIM2#

main55550-14090-04iRA40,TA40197708-198107

BLUE,BLUE,TRIM8#

main55550-14090-06iRA40,TA40197708-197908

LIGHT BROWN,BROWN,TRIM4#

main55550-14090-16iRA40,TA40197908-198107

LIGHT BROWN,BROWN,TRIM4#

55512PLATE, RADIO TUNER FINISH

main55513-14070iRA40,TA40..GT,XT197908-198107

main55513-14080iRA40,TA40..LHD..EUG197908-198107

55517STOPPER, GLOVE COMPARTMENT DOOR ARM

main55517-14010iRA40,TA40197708-198107

55522RETAINER, GLOVE COMPARTMENT MALE

main55561-14050iRA40,TA40197708-198107

55526COVER, INSTRUMENT PANEL REGISTER OPENING

main55526-14020-01iRA40,TA40..RHD..GEN197708-198107

BLACK,BLACK,TRIM2#

main55526-14020-04iRA40,TA40..RHD..GEN197708-198107

BLUE,BLUE,TRIM8#

main55526-14020-06iRA40,TA40..RHD..GEN197708-197908

LIGHT BROWN,BROWN,TRIM4#

main55526-14020-16iRA40,TA40..RHD..GEN197908-198107

LIGHT BROWN,BROWN,TRIM4#

main55526-14030-01iRA40,TA40..LHD..EUG197708-198107

BLACK,BLACK,TRIM2#

main55526-14030-04iRA40,TA40..LHD..EUG197708-198107

BLUE,BLUE,TRIM8#

main55526-14030-06iRA40,TA40..LHD..EUG197708-197908

LIGHT BROWN,BROWN,TRIM4#

main55526-14030-16iRA40,TA40..LHD..EUG197908-198107

LIGHT BROWN,BROWN,TRIM4#

55533COVER, AUTO CLOCK HOLE

main55533-14040iRA40,TA40..(LT,ST)..(EUR,GEN)197708-198107

55537COVER, REAR WINDOW DEFOGGER SWITCH HOLE

main55538-14010iRA40,TA40..(LT,ST)..EUG197708-198107

55544COVER, INSTRUMENT PANEL REGISTER HOLE

main55548-14010-01iRA40,TA40..EUG197811-198107

BLACK,BLACK,TRIM2#

main55548-14010-04iRA40,TA40..EUG197811-198107

BLUE,BLUE,TRIM8#

main55548-14010-06iRA40,TA40..EUG197811-197908

LIGHT BROWN,BROWN,TRIM4#

main55548-14010-16iRA40,TA40..EUG197908-198107

LIGHT BROWN,BROWN,TRIM4#

55545COVER, FUSE BOX OPENING

main55540-14010iRA40,TA40..ST,XT197708-197905

*DEF=20A

main55540-14011iRA40,TA40..ST,XT197905-197908

*DEF=30A

sub55545-14051

main55540-14020iRA40,TA40..GT197708-197807

main55540-14021iRA40,TA40..GT197807-197905

*DEF=20A

main55540-14022iRA40,TA40..GT197905-197908

*DEF=30A

main55540-14080iRA40,TA40..RHD..LT197908-198107

sub55540-14070

main55540-14090iRA40,TA40..RHD..(ST,XT)197908-198107

sub55540-14070

main55540-14100iRA40,TA40..RHD..GT197908-198107

main55540-14120iTA40..LHD..LT197908-198107

main55540-14130iRA40,TA40..LHD..(ST,XT)197908-198107

main55540-14140iRA40,TA40..LHD..GT197908-198107

main55545-14080iRA40,TA40..LT197708-197905

*DEF=20A

main55545-14081iRA40,TA40..LT197905-197908

*DEF=30A

sub55545-14051

55547COVER, REMOTE CONTROL MIRROR HOLE

main55547-14020iRA40,TA40..RHD197708-198107

55619COVER, SWITCH HOLE

main55619-14010iRA40,TA40..LHD197708-197908

W/RHEOSTAT OR OVERDRIVE

55619ACOVER, SWITCH HOLE, NO.2

main55619-14010iRA40,TA40..LB197708-198107

W/O REAR WIPER

55633SUPPORT, INSTRUMENT PANEL UNDER TRAY, NO.2

main55633-14030iRA40,TA40197708-198107

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-14060iRA40,TA40197708-198107

55651REGISTER, INSTRUMENT PANEL, NO.1

main55670-14020×2iRA40,TA40197708-198107

main55670-14030×2iRA40,TA40..GT,XT197908-198107

W/METALIC COATING (W/*TS)

55652REGISTER, INSTRUMENT PANEL, NO.2

main55652-14030-01iRA40,TA40197708-198107

BLACK,BLACK,TRIM2#

main55652-14030-04iRA40,TA40197708-198107

BLUE,BLUE,TRIM8#

main55652-14030-06iRA40,TA40197708-197908

LIGHT BROWN,BROWN,TRIM4#

main55652-14030-16iRA40,TA40197908-198107

LIGHT BROWN,BROWN,TRIM4#

55653REGISTER, INSTRUMENT PANEL, NO.3

main55061-14030-01iRA40,TA40197908-198107

BLACK,BLACK,TRIM2#

main55061-14030-04iRA40,TA40197908-198107

BLUE,BLUE,TRIM8#

main55061-14030-06iRA40,TA40197908-198107

LIGHT BROWN,BROWN,TRIM4#

main55061-20010iRA40,TA40197708-197908

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-14030-01iRA40,TA40..RHD197708-197908

BLACK,BLACK,TRIM2#

main55660-14030-04iRA40,TA40..RHD197708-197908

BLUE,BLUE,TRIM8#

main55660-14030-06iRA40,TA40..RHD197708-197908

LIGHT BROWN,BROWN,TRIM4#

main55660-14040-01iRA40,TA40..LHD197708-197908

BLACK,BLACK,TRIM2#

main55660-14040-04iRA40,TA40..LHD197708-197908

BLUE,BLUE,TRIM8#

main55660-14040-06iRA40,TA40..LHD197708-197908

LIGHT BROWN,BROWN,TRIM4#

main55660-14050-01iRA40,TA40..RHD197908-198107

BLACK,BLACK,TRIM2#

main55660-14050-04iRA40,TA40..RHD197908-198107

BLUE,BLUE,TRIM8#

main55660-14050-06iRA40,TA40..RHD197908-198107

LIGHT BROWN,BROWN,TRIM4#

main55660-14060-01iRA40,TA40..LHD197908-198107

BLACK,BLACK,TRIM2#

main55660-14060-04iRA40,TA40..LHD197908-198107

BLUE,BLUE,TRIM8#

main55660-14060-06iRA40,TA40..LHD197908-198107

LIGHT BROWN,BROWN,TRIM4#

55682SPRING, INSTRUMENT PANEL REGISTER SUPPORT

main58914-20010iRA40,TA40197708-198107

55699KNOB, INSTRUMENT PANEL REGISTER CONTROL

main55699-22020iRA40,TA40197708-198107

6712

9016040008

main90160-40008

9016750018

main90167-50018

9017904092

main90179-04092

9017906019

main90179-06019

9017906070

main90179-06070

9017906097

main90179-06097

9017906115

main90179-06115

9018305002

main90183-05002

9018305009

main90183-05009

9018305094

main90183-05094

9046305001

main90463-05001

9046807002

main90468-07002

9054103015

main90541-03015

9165640618

main91656-40618

9354055012

main93540-55012

9354055016

main93540-55016

9356014010

main93560-14010

9356055010

main93560-55010

9356055014

main93560-55014

9356055016

main93560-55016

9356614514

main93566-14514

9356615512

main93566-15512

9356654514

main93566-54514

9356655514

main93566-55514

9358055016

main93580-55016

66 parts on this diagram · 2 diagrams in section
