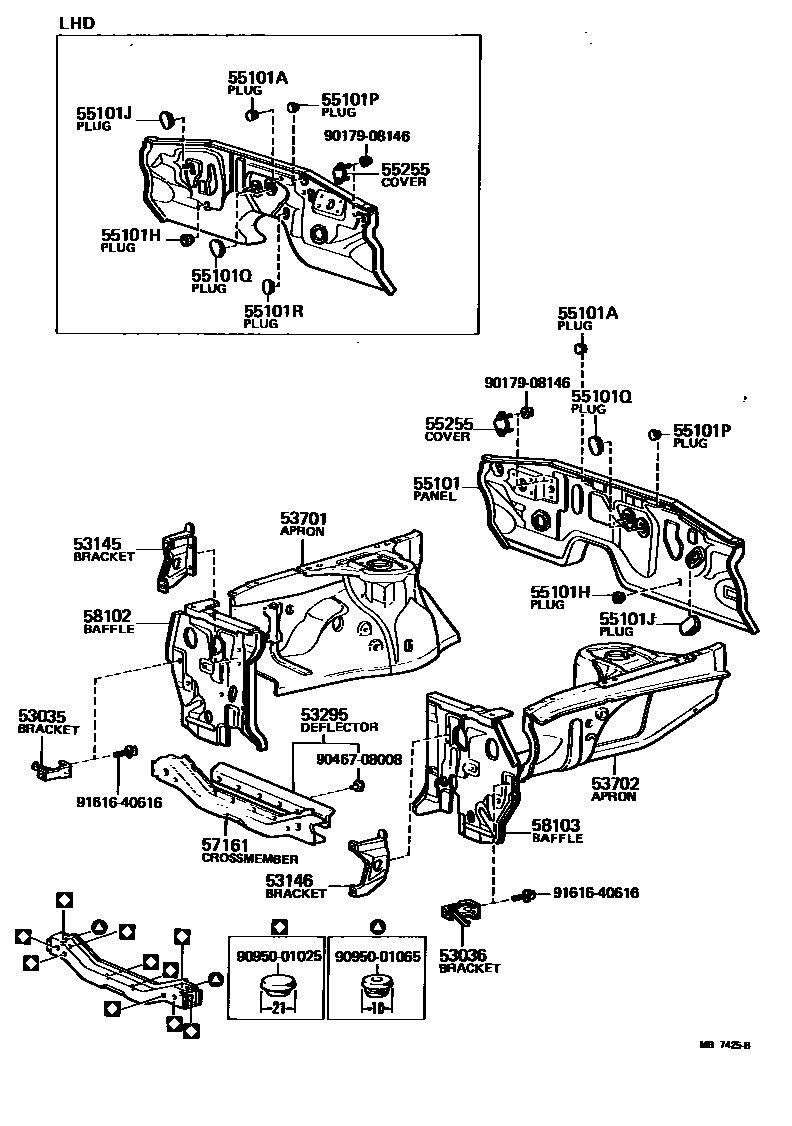

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1 0003 1

53035BRACKET SUB-ASSY, HEADLAMP, OUTER RH

main53245-14040iRA40,TA40197708-197908

53036BRACKET SUB-ASSY, HEADLAMP, OUTER LH

main53245-14040iRA40,TA40197708-197908

53145BRACKET,RADIATOR GRILLE MOUNTING, RH

main53223-14090iRA40,TA40197908-198107

main53251-14050iRA40,TA40197708-197908

53146BRACKET, RADIATOR GRILLE MOUNTING, LH

main53224-14050iRA40,TA40197908-198107

main53252-14050iRA40,TA40197708-197908

53295DEFLECTOR, RADIATOR LOWER AIR

main53295-14021iTA40..EUG;RA40..(ST,XT)..EUG;RA40..LHD..GT..EUG197708-198107

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-14190iRA40,TA40..GT197708-198107

sub53701-14200

main53701-14200iRA40,TA40..LT,ST,XT197708-198107

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-14180iRA40,TA40..LT,ST,XT197708-198107

main53702-14200iRA40,TA40..GT197708-197908

main53702-14201iRA40,TA40..GT197908-198107

sub53702-14200

55101PANEL SUB-ASSY, DASH

main55101-14140iTA40..RHD197708-198107

sub55101-14260

main55101-14160iRA40..RHD197708-198107

sub55101-14270

main55101-14190iRA40,TA40..LHD197708-198107

55101APLUG, HOLE, NO.1(FOR DASH PANEL)

main90950-01133iRA40,TA40197708-198107

OD=13,W/O CHOKE

55101HPLUG, HOLE, NO.2(FOR DASH PANEL)

main90950-01060iRA40,TA40197708-198107

OD=25,W/COOLER DRAIN

sub90950-01866

55101JPLUG, HOLE, NO.3(FOR DASH PANEL)

main90950-01189iRA40,TA40197708-198107

OD=34X74,W/O COOLER

55101PPLUG, HOLE, NO.4(FOR DASH PANEL)

main90950-01133iRA40,TA40..LHD197708-198107

OD=13,W/O COOLER

55101QPLUG, HOLE, NO.5(FOR DASH PANEL)

main90950-01189iRA40..RHD..GT..GEN197708-198107

OD=34X74,W/O HEATER

55101RPLUG, HOLE, NO.6(FOR DASH PANEL)

main90950-01209iTA40..LHD197708-198107

OD=29X47

55255COVER, CLUTCH MASTER CYLINDER HOLE

main55255-22010iRA40..RHD..3FC197708-198107

main55255-22020iRA40,TA40..LHD..3FC197708-198107

57161CROSSMEMBER, FRONT

main57161-14903iRA40,TA40197708-197908

sub57161-14904

sub57113-14060

main57161-14904iRA40,TA40197908-198107

58102BAFFLE SUB-ASSY, RADIATOR SIDE, RH

main53202-14070iRA40,TA40197708-197908

main53202-14071iRA40,TA40..EUR,GEN197908-198107

main53202-14081iRA40..ARL197908-198107

W/URETHANE BUMPER

58103BAFFLE SUB-ASSY,RADIATOR SIDE, LH

main53203-14130iRA40,TA40197708-197908

main53203-14131iRA40,TA40..EUR,GEN197908-198107

main53203-14141iRA40..ARL197908-198107

W/URETHANE BUMPER

9017908146

main90179-08146

9046708008

main90467-08008

9095001025

main90950-01025

9095001065

main90950-01065

9161640616

main91616-40616

23 parts on this diagram · 3 diagrams in section
