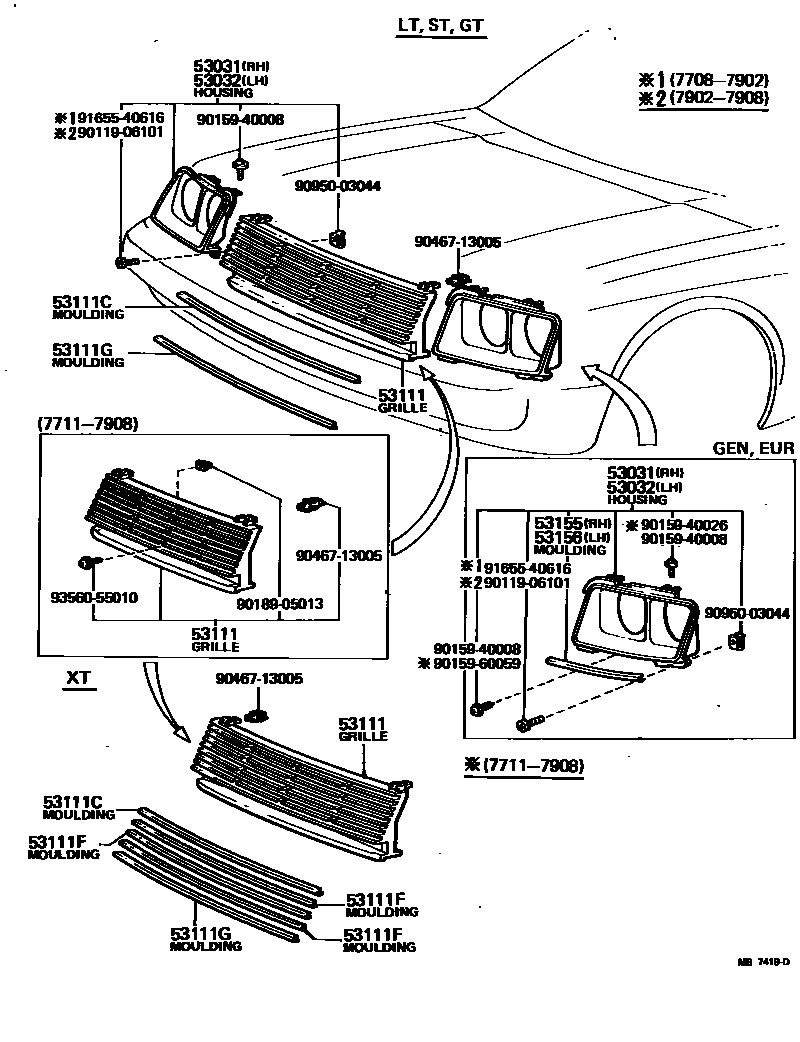

RADIATOR GRILLE

0001 1 0002 1

53031HOUSING, HEADLAMP, RH

main53131-19295iRA40..ARL197708-197808

main53131-19296iRA40..ARL197808-197908

main53131-19297iRA40,TA40197908-198107

sub53131-14112

sub90164-40029

sub90189-04014

main53131-19325iRA40,TA40..EUR,GEN197708-197711

sub53131-19415

main53131-19326iRA40,TA40..EUR,GEN197711-197908

main53131-19327iRA40,TA40..LHD..EUG197908-198107

W/HEADLAMP CLEANER

sub53131-14142

53032HOUSING, HEADLAMP, LH

main53132-19295iRA40..ARL197708-197808

main53132-19296iRA40..ARL197808-197908

main53132-19297iRA40,TA40197908-198107

sub53132-14112

sub90164-40029

sub90189-04014

main53132-19325iRA40,TA40..EUR,GEN197708-197711

sub53132-19415

main53132-19326iRA40,TA40..EUR,GEN197711-197908

main53132-19327iRA40,TA40..LHD..EUG197908-198107

W/HEADLAMP CLEANER

sub53132-14142

53111GRILLE, RADIATOR

main53111-14170iRA40,TA40197708-197711

main53111-19266iRA40,TA40..ST..GEN198008-198107

W/SPECIAL PACKAGE

sub53111-14161

main53111-19275iRA40,TA40197711-197908

sub53111-14170

main53111-19276iRA40,TA40197908-198107

sub53111-14171

53111CMOULDING, RADIATOR GRILLE, UPPER

main53121-14080iRA40,TA40197708-197908

53111FMOULDING, RADIATOR GRILLE, CENTER

main53122-14100iRA40..XT197708-197908

53111GMOULDING, RADIATOR GRILLE, LOWER

main53121-14080iRA40,TA40197708-197908

main53121-14081iRA40,TA40197908-198107

53155MOULDING, HEADLAMP DOOR, RH

main53155-14020iRA40,TA40..EUR,GEN197708-197908

main53155-14021iRA40,TA40197908-198107

53156MOULDING,HEADLAMP DOOR, LH

main53156-14020iRA40,TA40..EUR,GEN197708-197908

main53156-14021iRA40,TA40197908-198107

9011906101

main90119-06101

9015940008

main90159-40008

9015940026

main90159-40026

9015960059

main90159-60059

9018905013

main90189-05013

9046713005

main90467-13005

9095003044

main90950-03044

9165540616

main91655-40616

9356055010

main93560-55010

17 parts on this diagram · 2 diagrams in section
