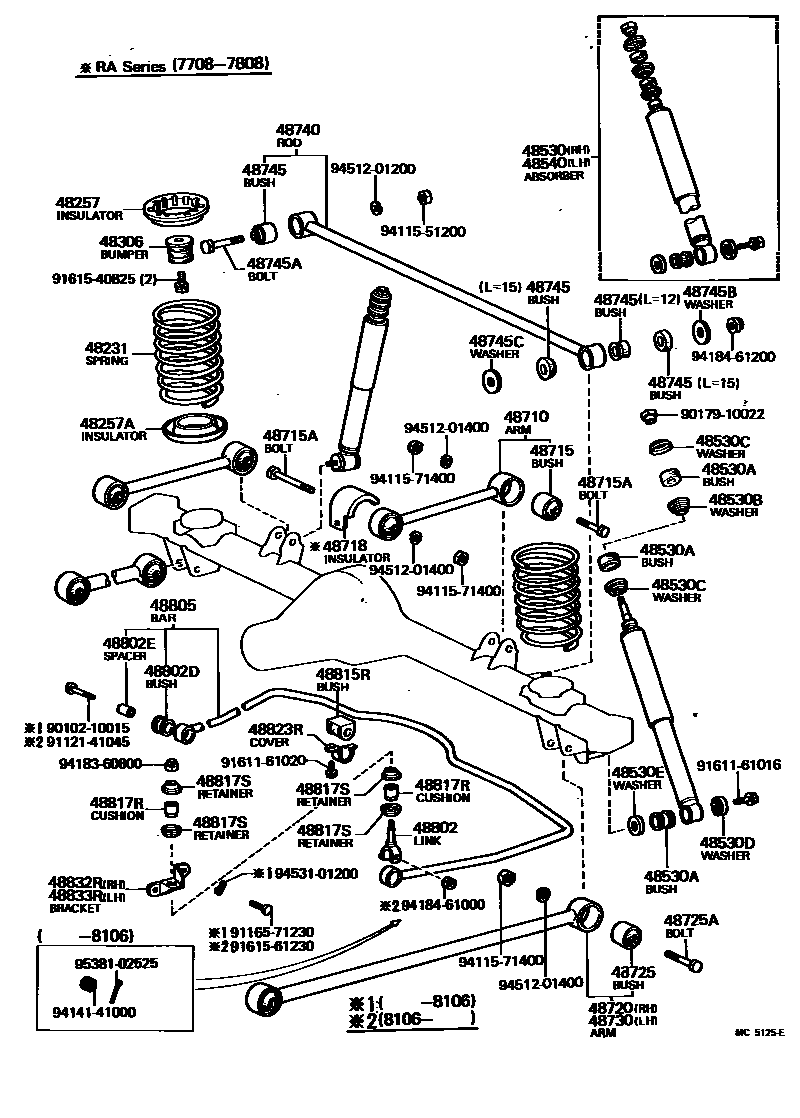

REAR SPRING & SHOCK ABSORBER

48231SPRING, COIL, REAR

main48231-14450iTA40..RHD..5F..LT;TA40..5F..LT..EUG;TA40..LB..RHD..4F;RA40..RHD..GT..EUG;TA40..LB..RHD..ST..EUG;RA40..LB..LHD..3FC..EUG;RA40..CP..RHD..3FC..EUG;RA40..LB..LHD..5F..X197708-197908

main48231-14470iRA40..LT,ST,XT197708-198107

main48231-14470iTA40..ST..GEN197801-197908

AUSTRIA SPEC

main48231-14500iRA40,TA40..GT197708-198107

main48231-20010iTA40..LT..GEN197808-197908

sub48231-14470

48257INSULATOR, REAR COIL SPRING

main48257-14020iRA40,TA40197708-198107

sub48257-12020

48257AINSULATOR, REAR COIL SPRING, LOWER

main48258-14030iRA40,TA40197708-198107

48306BUMPER SUB-ASSY, REAR SPRING

main48306-14030iRA40,TA40197708-198107

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-19445iRA40,TA40..GT197807-198107

sub48531-19446

main48531-19455iRA40,TA40..(LT,ST,XT)..EUR197807-197808

sub48531-14280

main48531-19475iRA40,TA40..GT..GEN197708-197908

sub48531-14320

main48531-19485iRA40,TA40..LT,ST,XT197708-197808

sub48531-19486

main48531-19565iRA40,TA40..(LT,ST,XT)..EUR197808-198107

sub48531-19755

main48531-19575iRA40,TA40..(LT,ST,XT)..(ARL,GEN)197808-197908

sub48531-14380

main48531-19755iTA40..LT,ST198008-198107

sub48531-19756

main48531-29545iTA40..LT,ST198007-198008

sub48531-19755

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-16001iRA40,TA40198008-198107

LWR

main90385-16060iRA40,TA40197708-198008

LWR

sub90385-16004

main90540-10002iRA40,TA40197910-198107

OD=30,ID=10,UPR

main90540-10004iRA40,TA40197708-197910

OD=30,ID=10,UPR

main90540-10005iRA40,TA40197708-198107

OD=30,ID=10&14,UPR

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-02007iRA40,TA40197708-197910

main90948-02050iRA40,TA40197910-198107

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90948-02002iRA40,TA40197708-198107

LWR

main90948-02045iRA40,TA40197708-198107

UPR

48530DWASHER, REAR SHOCK ABSORBER CUSHION, NO.3

main90948-03012iRA40,TA40197708-198107

48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4

main90948-03004iRA40,TA40197708-198107

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-19445iRA40,TA40..GT..EUG197807-198107

sub48531-19446

main48531-19455iRA40,TA40..(LT,ST,XT)..EUR197807-197808

sub48531-14280

main48531-19475iRA40,TA40..GT..GEN197708-197908

sub48531-14320

main48531-19485iRA40,TA40..LT,ST,XT197708-197808

sub48531-19486

main48531-19565iRA40..LT,ST,XT197808-198107

sub48531-19755

main48531-19575iRA40,TA40..(LT,ST,XT)..(ARL,GEN)197808-197908

sub48531-14380

main48531-19755iTA40..LT,ST198008-198107

sub48531-19756

main48531-29545iTA40..LT,ST198007-198008

sub48531-19755

48710ARM ASSY, UPPER CONTROL

main48710-14050iRA40,TA40..GT197708-198107

main48710-14060iRA40,TA40..LT,ST,XT197708-198107

48715BUSH, UPPER CONTROL ARM

main48702-14010iRA40,TA40..LT,ST,XT197708-198107

sub48702-14020

main48702-14020iRA40,TA40..GT197708-198107

48715ABOLT, HEXAGON(FOR UPPER CONTROL ARM)

main90101-14002iRA40,TA40197708-198106

*14-1.5PX141-23

main90101-14007iRA40,TA40197708-198106

*14-1.5PX76-21

main90105-14006iRA40,TA40198106-198107

*14-1.5PX77-28

main90105-14009iRA40,TA40198106-198107

*14-1.5PX141-25

48718INSULATOR, UPPER CONTROL ARM BUSH HEAT

main48719-14010iRA40197708-197808

48720ARM ASSY, LOWER CONTROL, RH

main48720-14040iRA40,TA40197708-198107

48725BUSH, LOWER CONTROL ARM

main48702-14020iRA40,TA40197708-198107

48725ABOLT(FOR LOWER CONTROL ARM)

main90101-14007iRA40,TA40197708-198106

*14-1.5PX76-21

main90105-14006iRA40,TA40198106-198107

*14-1.5PX77-28

48730ARM ASSY, LOWER CONTROL, LH

main48720-14040iRA40,TA40197708-198107

48740ROD ASSY, REAR LATERAL CONTROL

main48740-14040iRA40,TA40197708-197803

OD=19.0

main48740-14050iRA40,TA40197803-198107

OD=25.4

sub48740-20010

48745BUSH, LATERAL CONTROL ROD

main48706-14010iRA40,TA40197708-198107

BODY SIDE

main90385-20001iRA40,TA40197708-198107

L=15,HOUSING SIDE

main90386-20001iRA40,TA40197708-198107

L=12,HOUSING SIDE

48745ABOLT, HEXAGON(FOR LATERAL CONTROL ROD)

main90101-12032iRA40,TA40197708-198008

main90106-12002iRA40,TA40198008-198107

48745BWASHER, LATERAL CONTROL ROD CUSHION

main90201-12010iRA40,TA40197708-198107

48745CWASHER, LATERAL CONTROL ROD CUSHION

main94612-12000iRA40,TA40197708-198107

48802LINK SUB-ASSY, STABILIZER

main48802-14020iRA40..ARL197708-198106

main48802-14040iRA40..ARL198106-198107

48802DBUSH, STABILIZER LINK

main90385-11021iTA40..ST197708-198107

48802ESPACER(FOR REAR STABILIZER BAR)

main90560-10275iTA40..ST197708-198107

48805BAR SUB-ASSY, REAR STABILIZER

main48805-14010iRA40,TA40..GT197708-198107

main48805-14030iTA40..ST198007-198106

sub48805-14100

main48805-14100iTA40..ST198106-198107

48815RBUSH, STABILIZER(FOR REAR)

main48815-14060iRA40..ARL198007-198107

main48815-22020iRA40,TA40..GT197708-198107

48817RCUSHION, STABILIZER(FOR REAR)

main48817-12010iRA40..ARL198106-198107

main48817-30010iRA40,TA40..GT197708-198106

48817SRETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR)

main90948-02015iTA40..ST197708-198106

T=1.2

main90948-02024iTA40..ST198106-198107

T=1.2

main90948-02025iTA40..ST198106-198107

T=1.6

main90948-02032iRA40,TA40..GT197708-198106

T=1.6

48823RCOVER, STABILIZER LINK(FOR REAR)

main48832-22020iTA40..ST197708-198107

48832RBRACKET, REAR STABILIZER BAR, NO.1 RH

main48832-14010iRA40..ARL197708-198106

sub48832-14030

main48832-14030iTA40..ST198106-198107

48833RBRACKET, REAR STABILIZER BAR, NO.1 LH

main48833-14010iTA40..ST197708-198106

sub48833-14020

main48833-14020iTA40..ST198106-198107

9010210015

main90102-10015

9017910022

main90179-10022

9112141045

main91121-41045

9116571230

main91165-71230

9161161016

main91611-61016

9161161020

main91611-61020

9161540825

main91615-40825

9161561230

main91615-61230

9411551200

main94115-51200

9411571400

main94115-71400

9414141000

main94141-41000

9418360800

main94183-60800

9418461000

main94184-61000

9418461200

main94184-61200

9451201200

main94512-01200

9451201400

main94512-01400

9453101200

main94531-01200

9538102525

main95381-02525

52 parts on this diagram · 1 diagram in section
