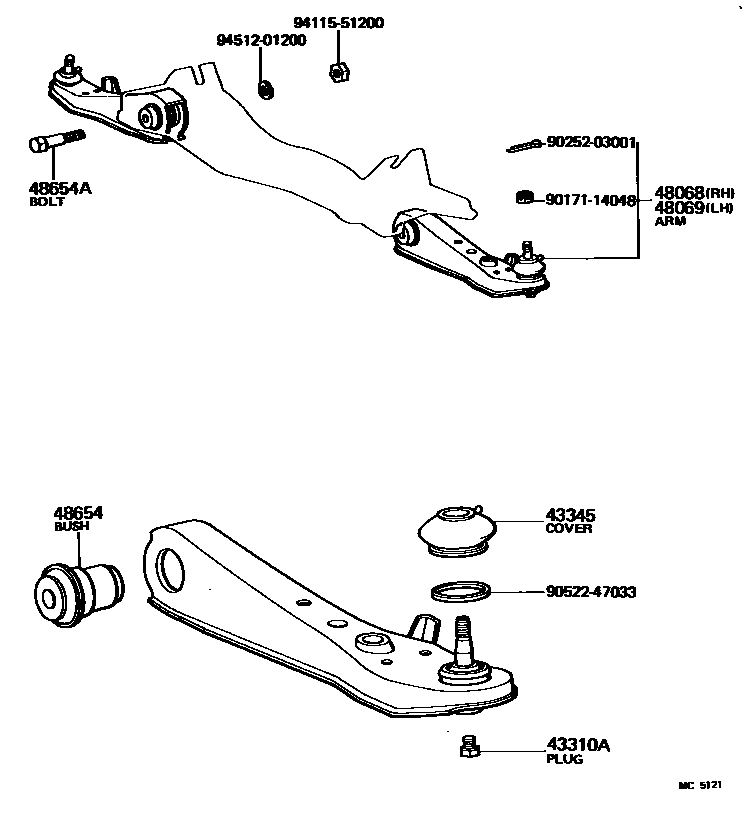

FRONT AXLE ARM & STEERING KNUCKLE

43310APLUG (FOR BALL JOINT)

main90345-06014iRA40,TA40197708-198107

43345COVER, LOWER BALL JOINT DUST

main43345-14020iRA40,TA40197708-198107

sub43345-14010

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-19036iRA40,TA40197708-198107

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-19036iRA40,TA40197708-198107

48654BUSH, LOWER ARM

main48654-12010iRA40,TA40197708-198107

48654ABOLT, HEXAGON(FOR LOWER ARM)

main90101-12291iRA40,TA40197708-198107

9017114048

main90171-14048

9025203001

main90252-03001

9052247033

main90522-47033

9411551200

main94115-51200

9451201200

main94512-01200

11 parts on this diagram · 1 diagram in section
