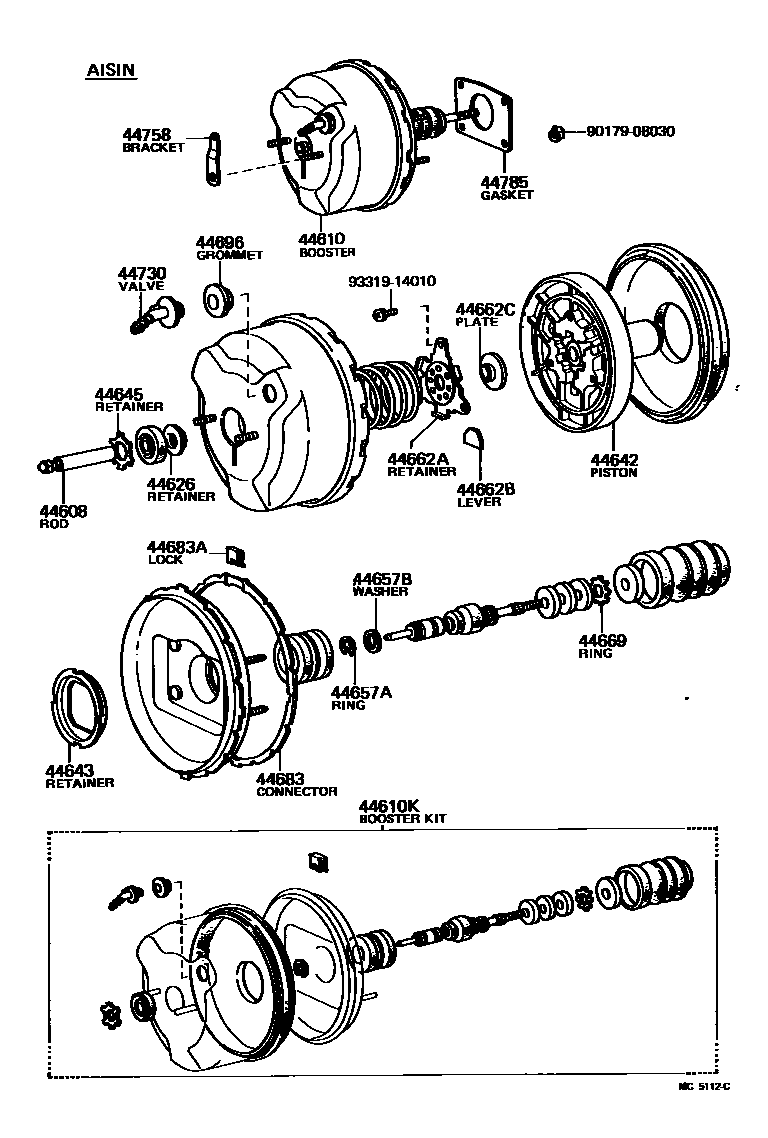

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0004 1 0005 1 0006 1 0007 1 0009 1 0010 1 0011 1

44608PUSH ROD SUB-ASSY, BOOSTER

main44606-30050iRA40197708-198107

AISIN

sub44606-35100

main44608-14040iRA40,TA40..LHD..EUG197708-198107

JKC

44610BOOSTER ASSY, BRAKE

main44610-14291iTA40..LHD..(LT,ST)197708-198107

main44610-14331iRA40..LHD197708-198107

main44610-14430iRA40,TA40..RHD..GT197708-198107

main44610-14450iRA40..CP..RHD197708-198107

main44610-22240iTA40..RHD..(LT,ST)197708-197908

44610KBOOSTER KIT, BRAKE

main04443-14170iTA40..RHD197708-198107

AISIN

main04443-14240iTA40..LHD..(LT,ST)197708-198107

AISIN

main04443-14250iTA40..LHD..(LT,ST)197708-198107

JKC

main04443-14260iTA40..LHD..GT197708-198107

AISIN

main04443-14270iRA40..LHD..EUG197708-198107

JKC

main04443-20190iRA40..CP..RHD197708-198107

AISIN

main04443-20200iRA40..ARL197708-198107

JKC

main04443-22170iTA40..RHD..(LT,ST)197708-197908

JKC

44626RETAINER, BOOSTER ROD CUP

main44626-60010iTA40..RHD..GT197708-198107

AISIN

44642PISTON, BRAKE BOOSTER

main44642-14170iTA40..RHD197708-198107

AISIN

main44642-20140iTA40..LHD..(LT,ST)197708-198107

JKC

main44642-30030iTA40..LHD..GT197708-198107

AISIN

main44642-35080iTA40..LHD..GT197708-198107

JKC

44643RETAINER, DIAPHRAGM

main44643-60010iRA40197708-198107

AISIN

44645RETAINER, BOOSTER PUSH ROD SEAL

main44628-60010iRA40197708-198107

AISIN

main44645-22020iRA40,TA40..LHD..GEN197708-198107

JKC

44657ARING, SNAP(FOR BOOSTER AIR VALVE STOPPER)

main96150-01600iTA40..RHD..GT197708-198107

AISIN

44657BWASHER, PLATE(FOR BOOSTER AIR VALVE STOPPER)

main44645-20100iTA40..LHD..(LT,ST)197708-198107

AISIN

44662RETAINER, REACTION, NO.1

main44663-35060iTA40..LHD..GT197708-198107

44662ARETAINER, REACTION, NO.2

main44662-20100iTA40..LHD..(LT,ST)197708-198107

AISIN

main44662-60010iRA40197708-198107

AISIN

44662BLEVER, REACTION

main44661-60010iRA40197708-198107

AISIN

sub44661-35100

44662CPLATE, REACTION, NO.1

main44653-20150iRA40197708-198107

AISIN

44669RING, CIRCULAR INTERNAL(FOR AIR CLEANER ELEMENT STOPPER)

main44669-60010iRA40197708-198107

AISIN

44683CONNECTOR, BOOSTER BODY

main44682-20150iTA40..RHD197708-198107

AISIN

44683ALOCK, CONNECTOR

main44683-20100iTA40..RHD197708-198107

AISIN

44696GROMMET, CHECK VALVE

main90480-24439iTA40..LHD197708-198107

AISIN

main90480-24517iRA40,TA40..LHD..EUG197708-198107

JKC

sub90480-24015

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-20010iRA40,TA40..RHD..GT197708-198107

main44730-20030iRA40..CP..RHD197708-198107

AISIN

main44730-20040iRA40..ARL197708-198107

JKC

main44730-20060iRA40,TA40..LHD197708-198107

AISIN

main44730-22090iRA40,TA40..LHD..EUG197708-198107

JKC

main44730-30010iTA40..RHD..(LT,ST)197708-197908

JKC

44758BRACKET, VACUUM CHECK VALVE

main44758-20090iRA40..CP..RHD197708-198107

main44758-22030iRA40,TA40..LHD197708-198107

44785GASKET, BRAKE BOOSTER

main44785-20030iRA40,TA40197812-198107

main44785-22010iRA40,TA40197708-197801

sub44785-30020

main44785-30020iRA40,TA40197801-197812

9017908030

main90179-08030

9331914010

main93319-14010

22 parts on this diagram · 9 diagrams in section
