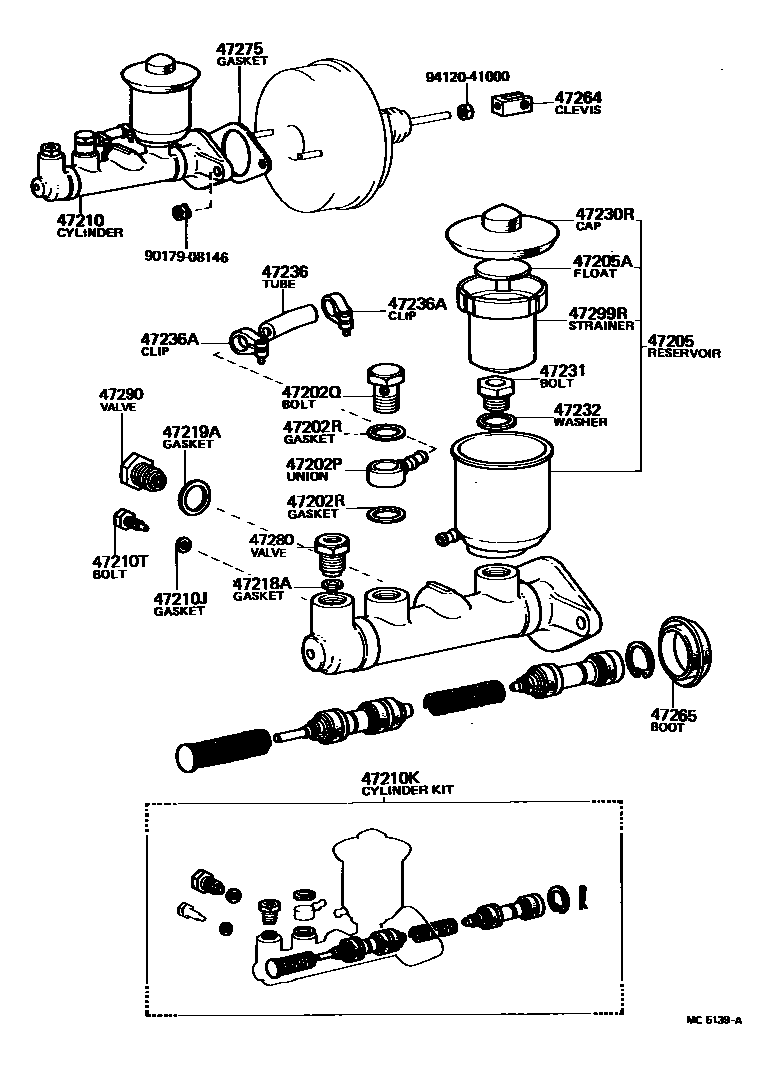

BRAKE MASTER CYLINDER

0001 1 0002 1 0003 1 0004 1 0005 1

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47202-14100iRA40,TA40..LHD..EUG197708-197908

main47202-14110iRA40..SDN197708-197908

47202PUNION, RESERVOIR(FOR BRAKE MASTER CYLINDER SIDE)

main90405-10125iRA40,TA40..RHD197708-198107

47202QBOLT, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE)

main90401-16078iRA40,TA40..RHD197708-198107

47202RGASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE)

main90430-16242iRA40,TA40..RHD197708-198107

47205RESERVOIR SET, BRAKE MASTER CYLINDER(FOR REAR SIDE)

main47202-12260iRA40..SDN197908-198106

sub47202-14260

main47202-14150iRA40,TA40..RHD..(EUR,GEN)197708-198107

main47202-14160iRA40..ARL197708-198107

main47202-14260iRA40..SDN198106-198107

main47202-20121iRA40,TA40..LHD..EUG197708-197908

main47202-20140iRA40..SDN197708-197908

main47202-35050iRA40,TA40..LHD..EUG197908-198107

47205AFLOAT, BRAKE MASTER CYLINDER RESERVOIR(FOR REAR SIDE)

main31426-20010iRA40,TA40..EUR,GEN197708-198107

47210CYLINDER ASSY, MASTER, W/O BOOSTER

main47201-14200iRA40,TA40..LHD..EUG197708-197908

main47201-14201iRA40,TA40..LHD..EUG197908-198107

main47201-14210iRA40..SDN197708-197908

main47201-14211iRA40..SDN197908-198107

main47201-14240iRA40..ARL197708-198107

sub47207-14050

sub84460-12011

main47201-14250iRA40,TA40..RHD..(EUR,GEN)197708-198107

sub47207-14050

sub31426-20010

sub47230-20030

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iRA40,TA40197708-198107

47210KCYLINDER KIT, BRAKE MASTER

main04493-14050iRA40,TA40197708-198107

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06008iRA40,TA40197708-198107

47218AGASKET(FOR FLUID OUTLET PLUG)

main90430-09253iRA40,TA40197708-198107

47219AGASKET(FOR FLUID OUTLET PLUG REAR SIDE)

main90430-09253iRA40,TA40197708-198107

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20030iRA40,TA40..LHD197708-197908

47230RCAP ASSY, RESERVOIR, NO.2(FOR REAR SIDE)

main47230-20030iRA40,TA40..LHD..EUG197708-198107

main47230-20040iRA40,TA40..LHD197708-197908

main84460-12011iRA40..ARL197711-198107

main84460-12030iRA40..SDN197908-198107

main84460-14010iRA40..ARL197708-197711

sub84460-12011

47231BOLT, BRAKE MASTER CYLINDER RESERVOIR SET

main47231-20010iRA40..SDN197708-198107

main47231-30010iTA40;RA40..RHD;RA40..LHD..GEN;RA40..LHD..EUG197708-198107

47232WASHER, BRAKE RESERVOIR SET BOLT

main47232-30010iTA40;RA40..RHD;RA40..LHD..GEN;RA40..LHD..EUG197708-198107

47236TUBE, RESERVOIR BRAKE

main47234-14010iRA40,TA40..RHD197708-198107

47236ACLIP(FOR RESERVOIR TUBE)

main90460-16069iRA40,TA40..RHD197708-198107

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-30020iRA40,TA40197708-198107

47265BOOT, MASTER CYLINDER

main47265-20050iRA40,TA40197708-198107

47275GASKET, BRAKE MASTER CYLINDER

main47275-14010iRA40,TA40..RHD197708-198107

sub47275-26010

main47275-22010iRA40,TA40..LHD197708-198107

47280VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK

main47280-30030iRA40,TA40197708-198107

sub47280-14010

47290VALVE ASSY, MASTER CYLINDER OUTLET(FOR REAR SIDE)

main47280-30030iRA40,TA40197708-198107

sub47280-14010

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20010iRA40,TA40..LHD197708-197908

47299RSTRAINER, MASTER CYLINDER RESERVOIR, REAR

main47299-14010iRA40,TA40..LHD198106-198107

main47299-20010iRA40,TA40..RHD197708-198107

main47299-20020iRA40,TA40..LHD197708-197908

9017908146

main90179-08146

9412041000

main94120-41000

27 parts on this diagram · 5 diagrams in section
