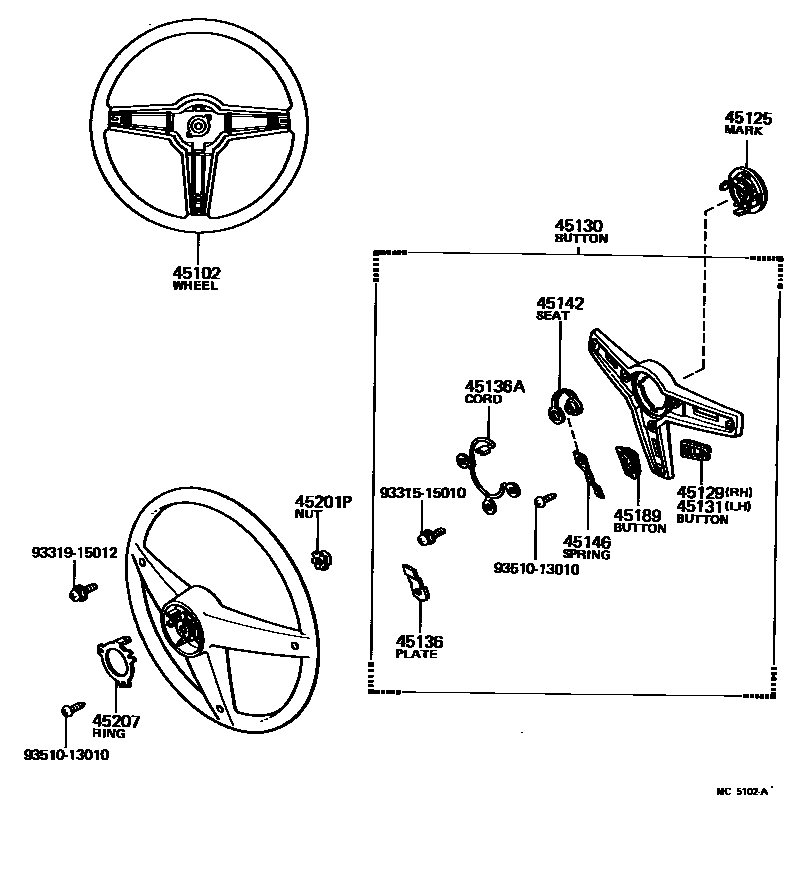

STEERING WHEEL
45102WHEEL SUB-ASSY, STEERING
4-SPOKE,URETHANE,BLACK,BLACK,TRIM2#
4-SPOKE,URETHANE,BLUE,BLUE,TRIM8#
4-SPOKE,URETHANE,BROWN,BROWN,TRIM4#
4-SPOKE,URETHANE,BROWN,BROWN,TRIM4#
3-SPOKE,WOODY
45125MARK, STEERING WHEEL PAD
BLACK
BLACK
LIGHT BROWN,BROWN,TRIM4#
sub45125-14120
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
45129BUTTON, HORN, NO.2
BLACK
45130BUTTON ASSY, HORN
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
45131BUTTON, HORN, NO.1
45136PLATE, HORN BUTTON CONTACT
45136ACORD(FOR HORN CONTACT RING)
45142SEAT, HORN BUTTON CONTACT, NO.1
45146SPRING, HORN BUTTON CONTACT
45189BUTTON, HORN, NO.3
45201PNUT, STEERING WHEEL SET
45207RING, HORN CONTACT
9331515010
main93315-15010
9331915012
main93319-15012
9351013010
main93510-13010
15 parts on this diagram · 6 diagrams in section
