REAR AXLE HOUSING & DIFFERENTIAL

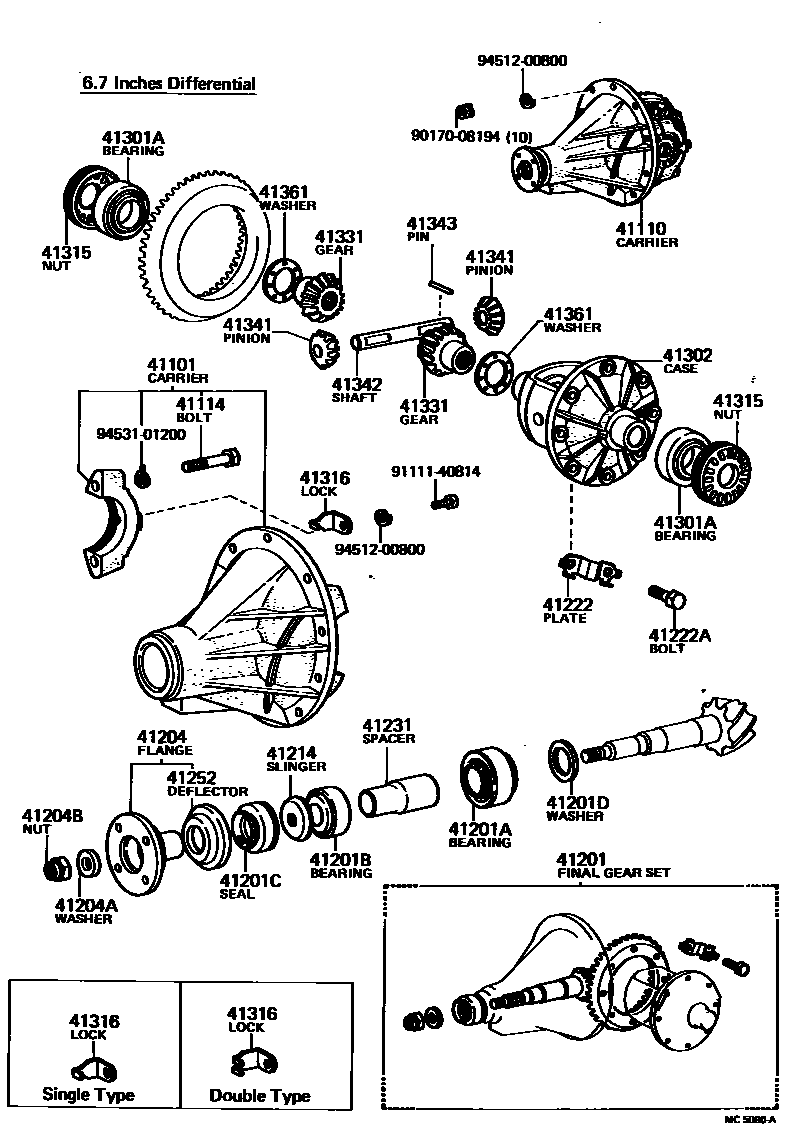

Parts diagram
41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR
main41101-20020i198008-198107
sub41101-20021
sub41204-48020
main41101-22010i197708-198008
sub41101-20020
sub90116-08236
main41101-30030i197708-198008
sub41101-30031
main41101-30031i198008-198107
41110CARRIER ASSY, DIFFERENTIAL, REAR
main41110-12022i197708-198008
R=43:10=4.300,W/LSD
sub41110-12023
sub90116-08236
main41110-12023i198008-198107
R=43:10=4.300,W/LSD
main41110-14122i197708-198107
*FGR=43:11=3.909,R=43:11=3.909
main41110-14132i197708-198107
R=43:11=3.909,W/LSD
main41110-20180i197708-198008
R=41:10=4.100
sub41110-20181
sub90116-08236
main41110-20181i198008-198107
R=41:10=4.100
main41110-20181i198008-198107
RA41:10=4.100
main41110-20190i197908-198008
R=41:11=3.727
sub41110-20191
sub90116-08236
main41110-20191i198008-198107
R=41:11=3.727
main41110-20200i197708-198008
R=43:11=3.909
sub41110-20201
sub90116-08236
main41110-20201i198008-198107
R=43:11=3.909
main41110-20260i197708-198008
R=43:10=4.300
sub41110-20261
sub90116-08236
main41110-20261i198008-198107
R=43:10=4.300
41114BOLT, REAR DIFFERENTIAL BEARING CAP
main90101-12371i197708-198107
sub90105-12114
main90101-12376i197708-198107
41201FINAL GEAR KIT, DIFFERENTIAL, REAR
main41201-29196i197905-198107
N=41:00
sub41201-29197
main41201-29196i197708-197905
N=41:10
sub41201-29197
main41201-29206i197708-198107
N=43:10
sub41201-29207
main41201-29226i197908-198107
N=41:11
sub41201-29227
main41201-29236i197708-198107
N=43:11
sub41201-29237
main41201-39167i197708-197804
N=43:11
sub41201-39168
main41201-39168i197804-198107
*FGR=43:11=3.909,N=43:11
sub41201-39585
41201ABEARING (FOR REAR DRIVE PINION REAR)
main90366-35023i197708-198107
main90368-34049i197708-198107
sub90366-34019
41201BBEARING (FOR REAR DRIVE PINION FRONT)
main90366-30022i197708-198107
sub90366-30078
main90368-30002i197809-198107
main90368-30069i197708-197809
sub90368-30002
41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)
main90311-38010i197710-198107
W/LSD
main90311-38015i197708-198107
main90311-38079i197708-197710
W/LSD
sub90311-38010
main90311-38133i197708-198107
sub90311-38047
41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)
main90201-35396i197708-198107
T=2.36,MARK 05,T=2.35-2.37
main90201-35397i197708-198107
T=2.39,MARK 06,T=2.38-2.40
main90201-35398i197708-198107
T=2.42,MARK 07,T=2.41-2.43
main90201-35399i197708-198107
T=2.43,MARK 08,T=2.44-2.46
main90201-35400i197708-198107
T=2.48,MARK 09,T=2.47-2.49
main90201-35401i197708-198107
T=2.51,MARK 10,T=2.50-2.52
main90201-35402i197708-198107
T=2.54,MARK 11,T=2.53-2.55
main90201-35403i197708-198107
T=2.57,MARK 12,T=2.56-2.58
main90201-35404i197708-198107
T=2.60,MARK 13,T=2.59-2.61
main90201-35434i197708-198107
T=2.24,MARK 01,T=2.23-2.25
sub90201-35515
main90201-35435i197708-198107
T=2.27,MARK 02,T=2.26-2.28
sub90201-35516
main90201-35436i197708-198107
T=2.30,MARK 03,T=2.29-2.31
sub90201-35517
main90201-35437i197708-198107
T=2.33,MARK 04,T=2.32-2.34
sub90201-35518
main90201-35438i197708-198107
T=2.63,MARK 14,T=2.62-2.64
main90201-35439i197708-198107
T=2.66,MARK 15,T=2.65-2.67
main90201-35440i197708-198107
T=2.69,MARK 16,T=2.68-2.70
main90201-35441i197708-198107
T=2.72,MARK 17,T=2.71-2.73
41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
main41204-20020i197708-198107
main41204-20030i197708-198107
41204AWASHER, PLATE (FOR REAR DRIVE PINION)
main90201-18485i197708-198107
41204BNUT (FOR REAR DRIVE PINION)
main90179-18001i197708-198107
main90179-18060i197708-197804
sub90179-18001
41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL
main41214-20020i197708-198107
main41214-30021i197708-198107
41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK
main41222-30030i197708-198107
sub41222-28010
main41222-30040i197708-198107
sub41222-35030
41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)
main90101-11353i197708-198107
41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
main41231-22010i197708-198107
41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)
main41252-22010i197708-198107
main41252-30010i197708-198107
41301ABEARING(FOR REAR DIFFERENTIAL CASE)
main90368-41050i197708-198107
KOYO
main90368-41053i197708-198107
NSK
sub90368-41050
main90368-41056i197708-198107
NACHI
sub90368-41050
main90368-45066i197708-198107
main90368-50024i197708-198107
W/LSD
41302CASE SUB-ASSY, REAR DIFFERENTIAL
main41302-14011i197708-198107
W/LSD
main41302-22010i197708-198007
W/LSD
sub41302-22011
sub41361-22051
sub41361-22061
sub41361-22071
sub41361-22081
sub41361-22091
sub41361-22101
sub41361-22111
sub41385-22011
main41302-22011i198007-198107
W/LSD
main41311-22030i197708-198107
sub41311-22031
sub41351-12030
main41311-30050i197708-198107
sub41311-28010
41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING
main41315-22011i197708-198107
main41315-35010i197708-198107
41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT
main41316-22011i197708-198107
SINGLE TYPE
main41316-30010i197708-198107
SINGLE TYPE
main41317-22011i197708-198107
DOUBLE TYPE
main41317-30010i197708-198107
DOUBLE TYPE
41331GEAR, REAR DIFFERENTIAL SIDE
main41305-22010i197708-198107
W/LSD
main41331-14010i197708-198107
N=15,W/LSD
main41331-22020i197708-198107
N=15
main41331-30030i197708-198107
N=16
41341PINION, REAR DIFFERENTIAL
main41341-14020i197708-198107
N=10,W/LSD
main41341-14030i197708-198008
N=10,W/LSD
main41341-14031i198008-198107
N=10,W/LSD
main41341-22020i197708-198107
N=10
sub41341-12030
main41341-30020i197708-198107
N=10
sub41341-30050
41342SHAFT, REAR DIFFERENTIAL PINION
main41342-22010i197708-198107
main41342-22020i197911-198107
sub41342-22021
main41342-30030i197708-197911
sub41342-22020
41343PIN, REAR DIFFERENTIAL PINION SHAFT
main90250-04193i197708-198107
main90250-06058i197708-198107
41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
main41361-14012i197708-198107
T=1.60,T=1.585-1.615,W/LSD
main41361-14022i197708-198107
T=1.65,T=1.635-1.665,W/LSD
main41361-14032i197708-198107
T=1.70,T=1.685-1.715,W/LSD
main41361-14042i197708-198107
T=1.75,T=1.735-1.765,W/LSD
main41361-14060i197708-198107
T=1.80,T=1.785-1.815,W/LSD
main41361-14070i197708-198107
T=1.85,T=1.835-1.865,W/LSD
main41361-22020i197708-198107
T=1.00,MARK 02,T=0.98-1.02
main41361-22030i197708-198107
T=1.10,MARK 03,T=1.08-1.12
main41361-22040i197708-198107
T=1.20,MARK 04,T=1.18-1.22
main41361-22050i197708-198007
T=1.785-1.815,W/LSD
main41361-22051i198007-198107
T=1.80,MARK 1,T=1.785-1.815,W/LSD
main41361-22060i197708-198007
T=1.835-1.865,W/LSD
main41361-22061i198007-198107
T=1.85,MARK 2,T=1.835-1.865,W/LSD
main41361-22070i197708-198007
T=1.885-1.915,W/LSD
main41361-22071i198007-198107
T=1.90,MARK 3,T=1.885-1.915,W/LSD
main41361-22080i197708-198007
T=1.935-1.965,W/LSD
main41361-22081i198007-198107
T=1.95,MARK 4,T=1.935-1.965,W/LSD
main41361-22100i197708-198007
T=1.985-2.015,W/LSD
main41361-22101i198007-198107
T=2.00,MARK 5,T=1.985-2.015,W/LSD
main41361-22110i197708-198007
T=2.035-2.065,W/LSD
main41361-22111i198007-198107
T=2.05,MARK 6,T=2.035-2.065,W/LSD
main41361-22140i197708-198107
T=0.95,MARK 14,T=0.93-0.97
main41361-22150i197708-198107
T=1.05,MARK 15,T=1.03-1.07
main41361-22160i197708-198107
T=1.15,MARK 16,T=1.13-1.17
main41361-30040i197708-198107
T=1.0,T=0.96-1.04
main41361-30050i197708-198107
T=1.1,T=1.06-1.14
main41361-30060i197708-198107
T=1.2,T=1.16-1.24
main41361-30070i197708-198107
T=1.3,T=1.26-1.34
9017008194
main90170-08194
9111140814
main91111-40814
9451200800
main94512-00800
9453101200
main94531-01200

29 parts on this diagram · 5 diagrams in section
